7.24
FINAL DRIVE

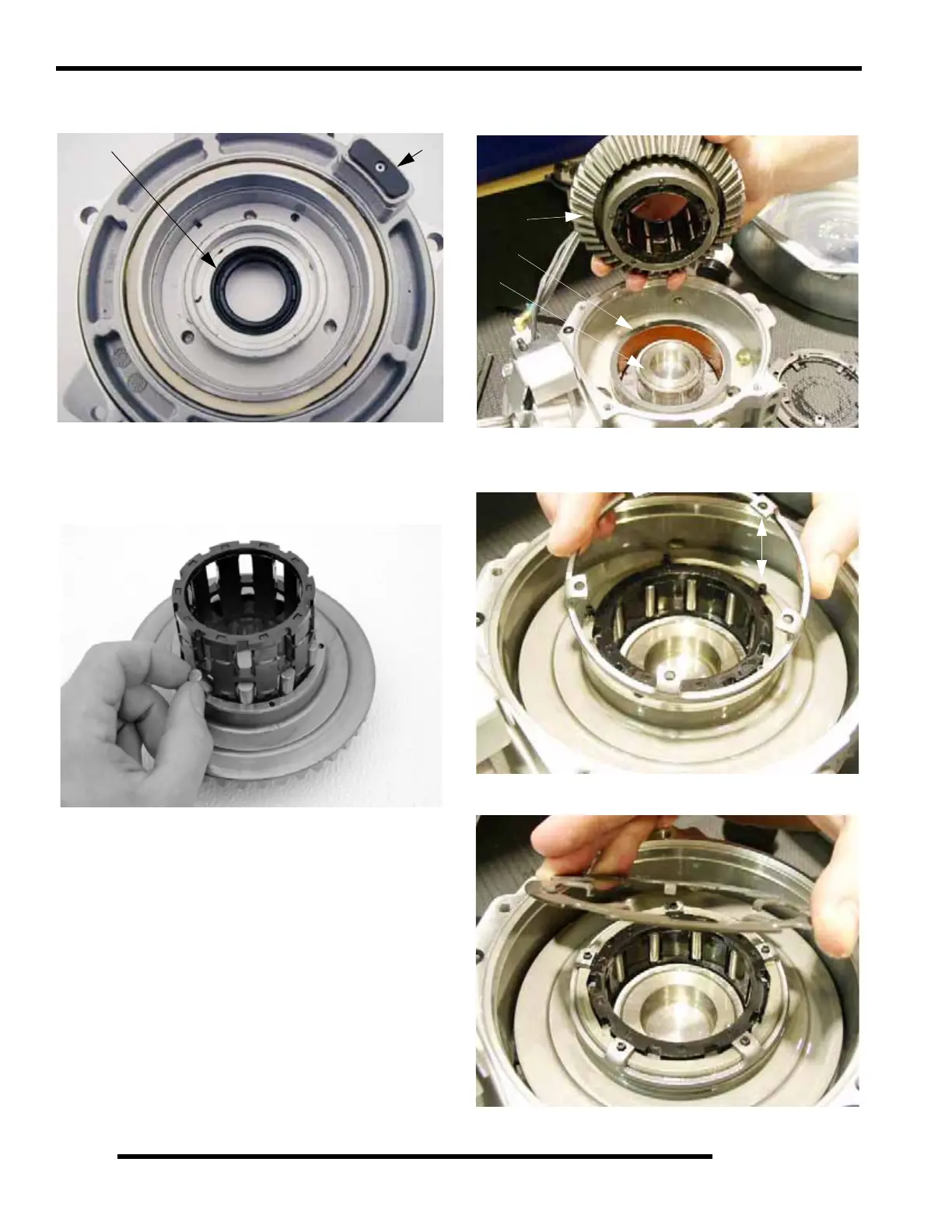

8. Install a new seal (1) in the outer cover plate assembly.
Install a new o-ring on the backlash pad (2) stem .
NOTE: Ring gear backlash (2) is set at the factory.
No adjustment is required, unless the front cover is
replaced or the back lash pad screw is removed.
9. Install the roll cage and rollers into the ring gear. Insert the
rollers as the roll cage is installed.
10. Install the clutch pack (1), spacer (2) and ring gear (3).
NOTE: Align locating pins / holes for installation.
11. Install the spacer.
NOTE: Align locating pins / holes for installation
(arrow).
12. Install the armature plate. Verify the armature plate tabs
align with tab recesses in the roll cage.
1
2
3
2
1
