8.32
X2 / Touring Transmission

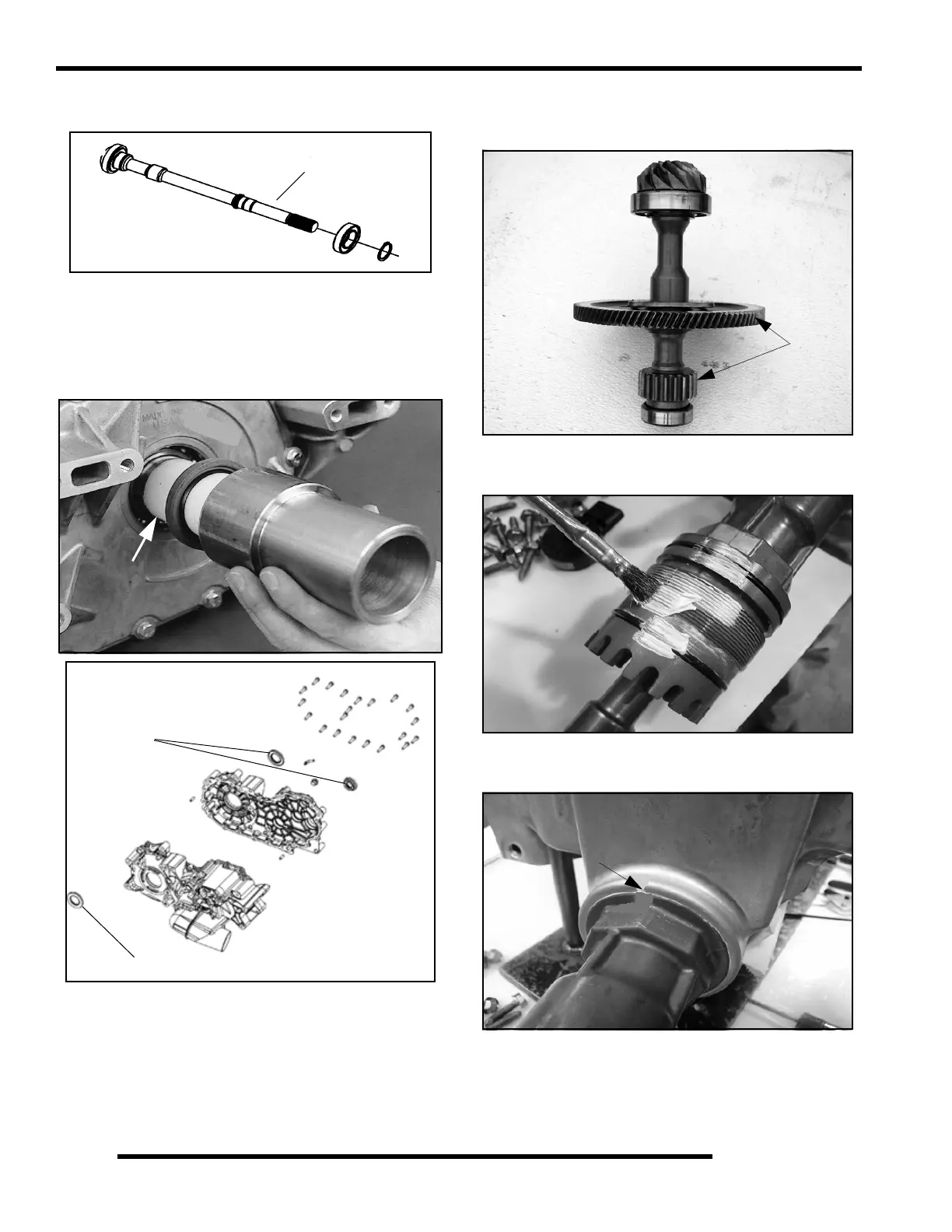

33. To remove the remaining bearing on the snorkel shaft (15),
remove the retaining ring and press the bearing off.
Transmission assembly
1. Install all new seals in the gearcases. Use the Rear Output
Seal Driver (PN 2871698) and Rear Driveshaft Seal Guide
(PN 2871699) to install the seals into the gearcases. See
illustration 1 to identify seals for replacement.
2. Reverse the disassembly procedure for the assembly of the
snorkel shaft assembly.
3. Inspect the output gear assembly (1), replace bearings if
needed. Inspect the 91T gear for damage, chips, or
abnormal worn teeth.
4. Install 2 new O-rings onto the snorkel tube. Apply a white
lithium grease onto the O-rings and threads of the snorkel
tube.
5. Install the snorkel shaft assembly into the gearcase. Install
the snorkel shaft assembly in until the second O-ring is
contacting the gearcase, but is still visible.
15
2871698
2871699
LH Gearcase
Cover Seals
Gearcase Seal
1
