MAINTENANCE
Transmission Lubrication
The (transmission) lubricant level should be checked and
changed in accordance with the maintenance schedule.
• Be sure vehicle is level and in Park before proceeding.
• Check vent hose to be sure it is routed properly and
unobstructed.
• Follow instructions to check / change transmission
lubricant.
To Check the Fluid Level:

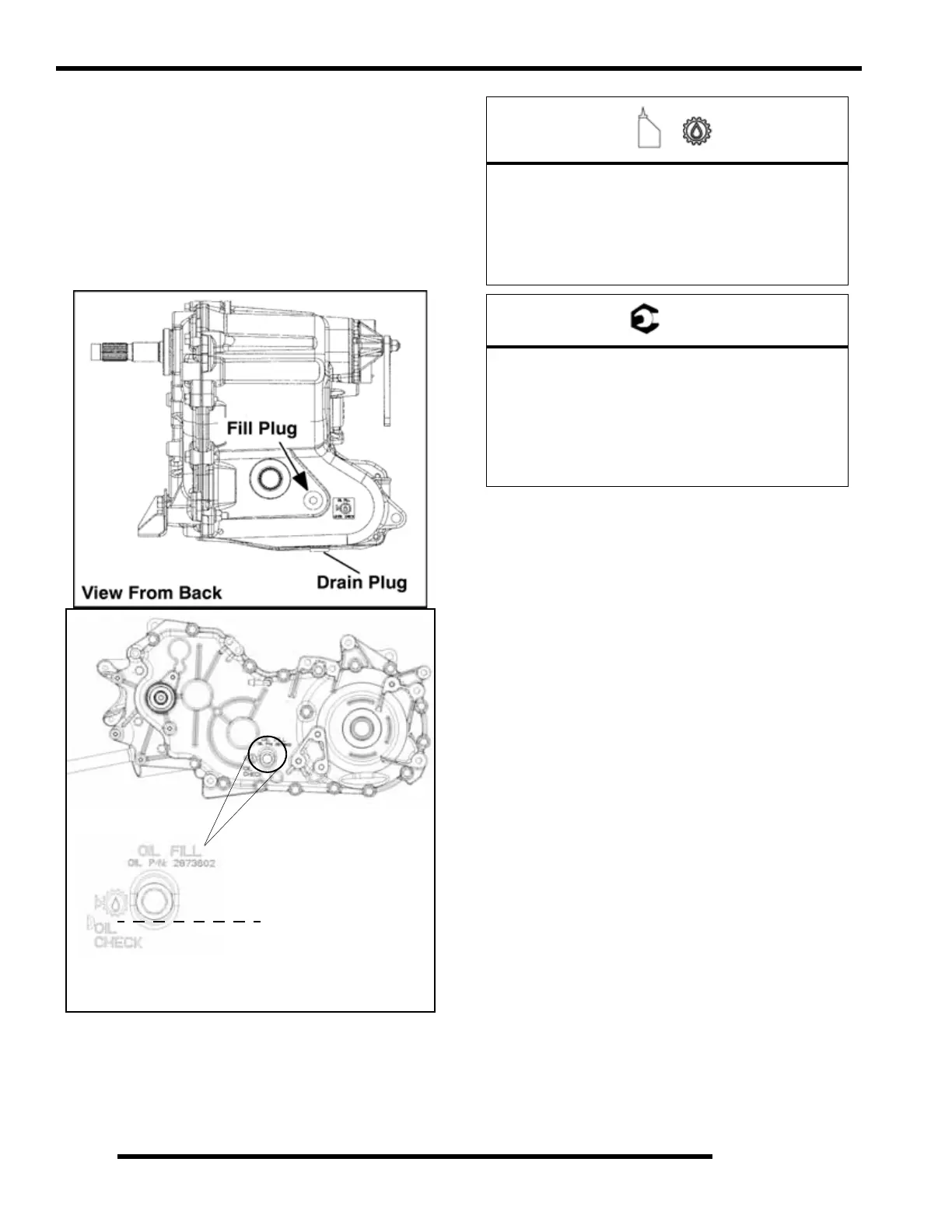

1. Remove fill plug from the back of the transmission and
visually inspect the oil level. Level is correct when it
reaches the bottom of the fill hole as shown at below.
NOTE: The drain and fill plug use a 5/16” hex for
removal and installation.
To Change Lubricant:
1. Remove transmission drain plug to drain the oil. Discard
used oil properly.
2. Clean and reinstall the drain plug. Torque to specification.
3. Remove fill plug.
4. Add the correct amount of Polaris AGL Gearcase
Lubricant.
5. Check for leaks.
6. Install fill plug. Torque to specification.
SPORTSMAN
Oil Fill Plug
Oil Fill Level-
Bottom Fill Plug
Hole Threads
SPORTSMAN X2-Touring
=
Transmission - Specified Lubricant:
Polaris AGL Gearcase Lubricant
(Gallon - PN 2873603) (12 oz. - PN 2873602)
Sportsman - Capacity: 15 oz. (450 ml)
X2-Touring - Capacity: 32 oz. (948 ml)
= T
Transmission
Sportsman - Drain / Fill Plug Torque:
14 ft.lbs. (19 Nm)
Sportsman X2-Touring -
Drain / Fill Plug Torque:
20-25 ft.lbs. (27-34 Nm)
