10.8
ELECTRICAL

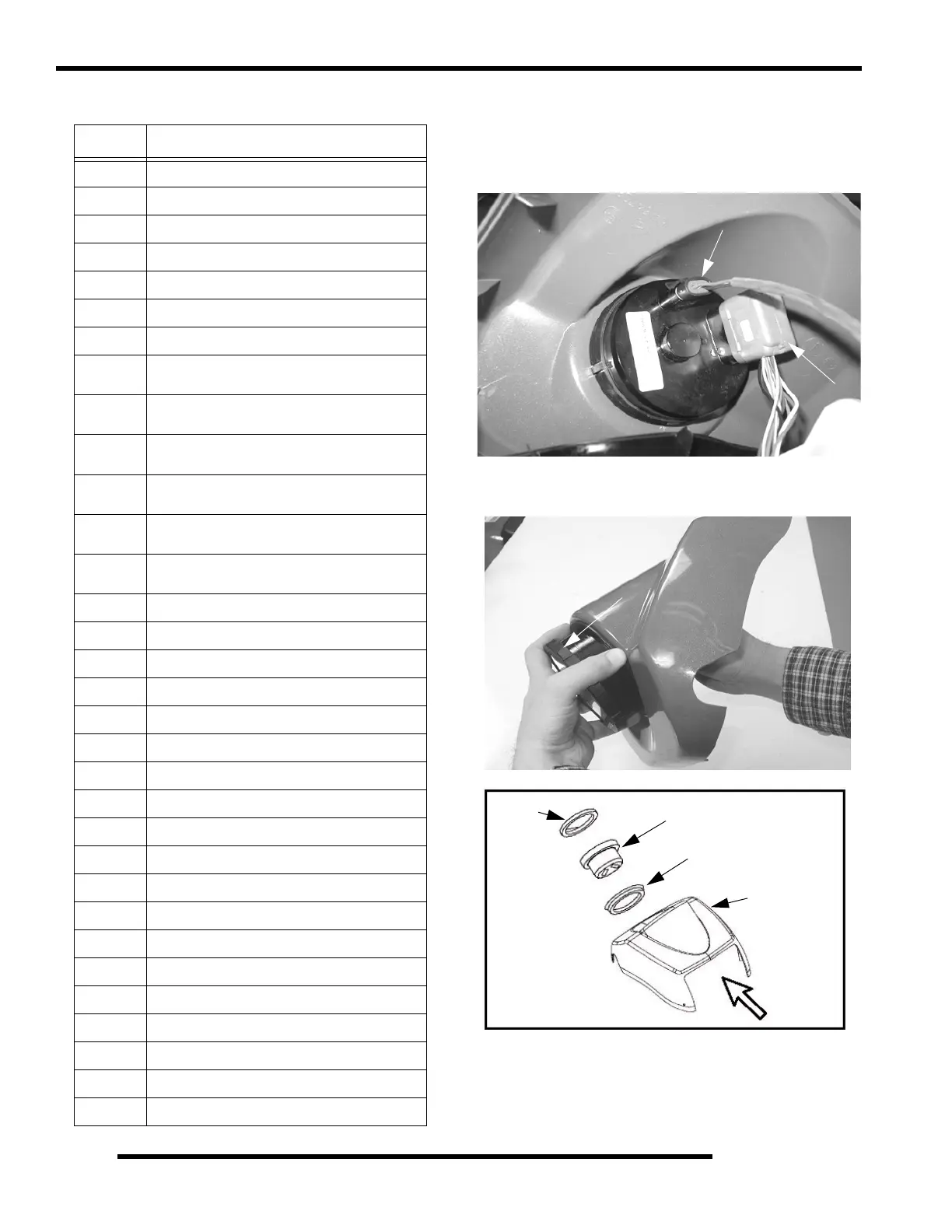

Speedometer Removal
1. Remove the three screws that secure the headlight pod
cover and disconnect the wire connectors from the
instrument cluster.
2. Push the instrument cluster out from the backside of the
pod, while securely holding the pod.
NOTE: Do not remove the rubber grommet in the
pod. Only remove the rubber grommet if necessary.
The bezel is a snap-on assembly and is a serviceable
part.
EFI C
ODE FAILURE DESCRIPTION
No RPM Signal
21 Loss of Synchronization
22 TPS: Open or Short Circuit to Ground
22 TPS: Short Circuit to Battery
23 RAM Error: Defective ECU
25 Transmission Input - Invalid Gear
26 Vehicle Speed Sensor - Implausible
41
Intake Air Temp Sensor: Open or Short
Circuit to +Sensor Voltage
41
Intake Air Temp Sensor: Short Circuit to
Ground
42
Engine Temp Sensor Circuit:
Short to Ground
42
Engine Temp Sensor Circuit: Open or Short
to Battery
45
Barometric Pressure Sensor: Circuit Low
Input
46
Barometric Pressure Sensor: Circuit High
Input
51 Injector 1: Open Load
51 Injector 1: Short Circuit to Ground
51 Injector 1: Short Circuit to Battery
52 Injector 2: Open Load
52 Injector 2: Short Circuit to Ground
52 Injector 2: Short Circuit to Battery
54 Engine Temp Lamp: Open Load
54 Engine Temp Lamp: Short Circuit to Ground
54 Engine Temp Lamp: Short Circuit to Battery
55 Diag Lamp: Open Load
55 Diag Lamp: Short Circuit to Ground
55 Diag Lamp: Short Circuit to Battery
56 Pump Relay: Open Load
56 Pump Relay: Short Circuit to Ground
56 Pump Relay: Short Circuit to Battery
58 Cooling Fan: Open Load
58 Cooling Fan: Short Circuit to Ground
58 Cooling Fan: Short Circuit to Battery
61 END of Check
Pod
Rubber Mount
Instrument Bezel
Bezel
Push Instrument
Cluster Outward
