11.2
800 TOURING EFI INTERNATIONAL

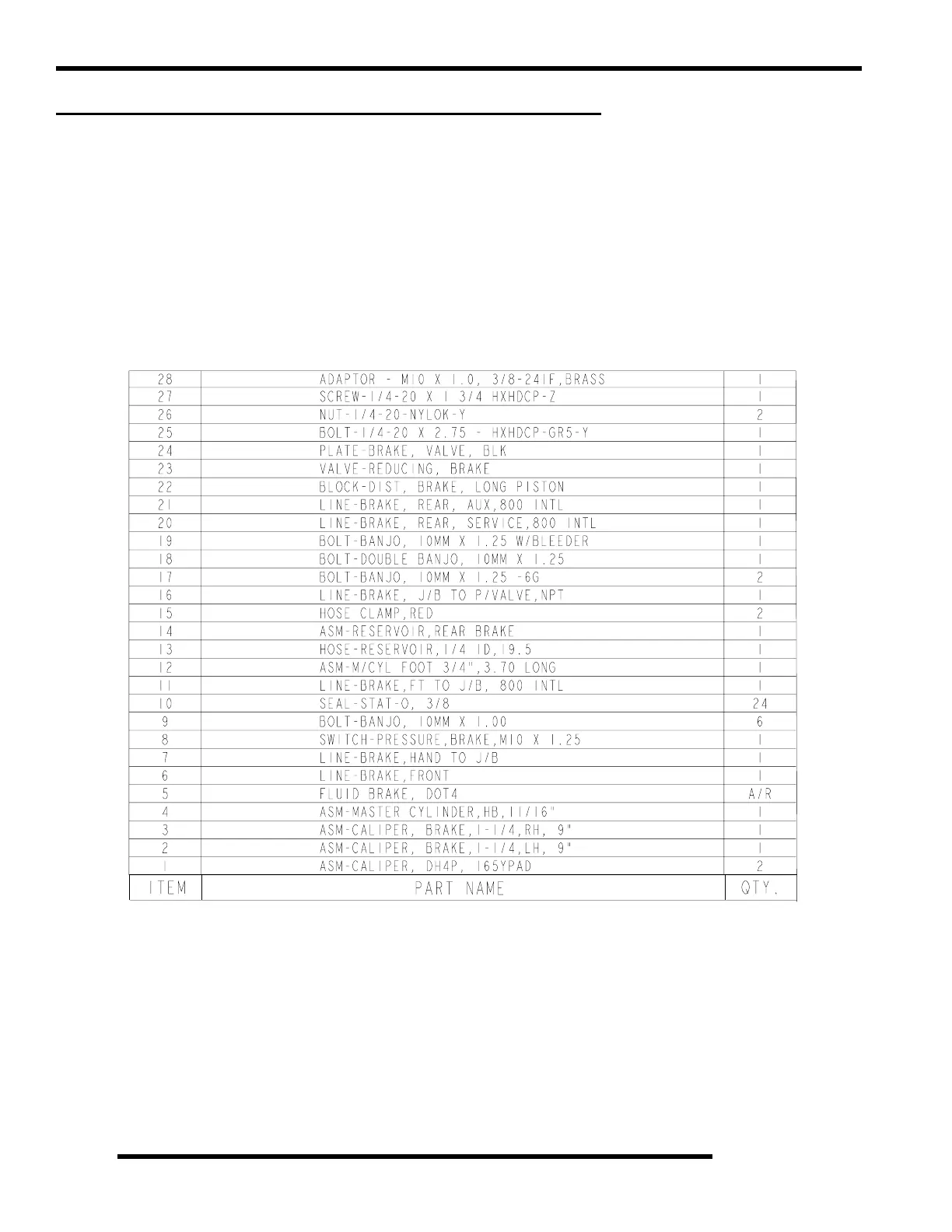

800 TOURING EFI INTERNATIONAL BRAKE SYSTEM
Overview
The Sportsman Touring International brake system consists of a complete hydraulic brake system. All-wheel braking is integrated
into the foot brake and hand brake systems and allows 4 wheel braking from either control separately, or at the same time.
When the foot brake is applied, all brake calipers are active, as braking pressure is routed from the foot brake master cylinder through
the proportioning valve and distribution block, exiting one line to the front calipers, while the other line exits the proportioning valve
and feeds the outer line to the rear calipers.
When the hand brake is applied, all brake calipers are active, as braking pressure is routed from the hand brake master cylinder
through the distribution block, exiting one line to the front calipers, while the other line feeds the inner line to the rear calipers.
