7.2
FINAL DRIVE
SPECIFICATIONS
Torque Table
IMPORTANT: Verify which type of wheel ATV is
equipped with (aluminum or steel) when torquing
wheel nuts.
Special Tools
Gearcase Fluid / Capacity
FRONT HUB
Disassembly
NOTE: Follow steps 1-10 for wheel/hub removal in
‘Front Drive Shaft (CV) Service / Removal’

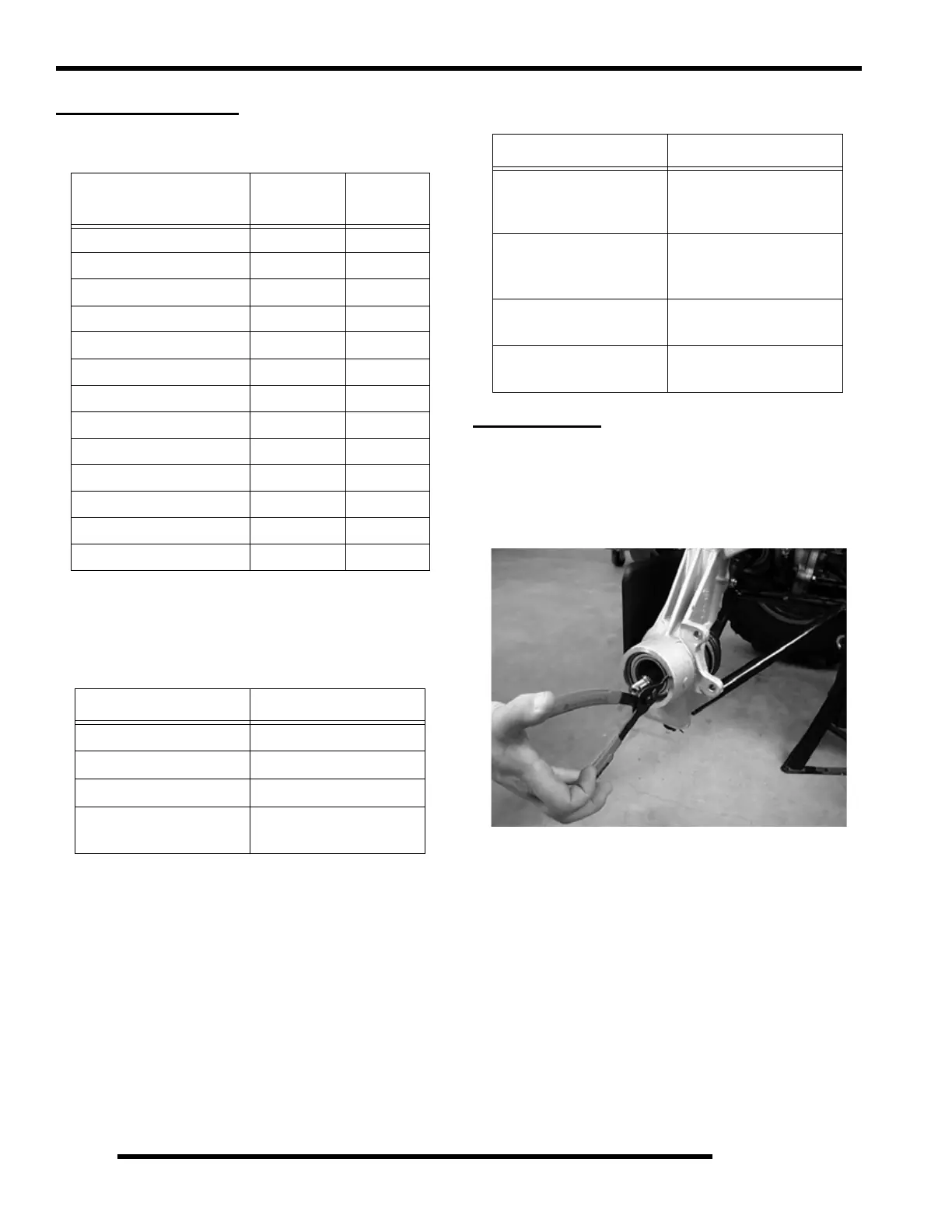

1. Remove outer snap ring.
C
OMPONENT
FT
.LBS.
(
IN.LBS.)
N
M
F/R Steel Wheel Nuts 30 41
F/R Aluminum Wheel Nuts 90 122
Front Hub Nut 60 81
Rear Hub Nut 80 108
Front Gearcase Mount Bolts 30 41
Standard Gearcase Screws 14 19
Rear Gearcase Mount Bolts 30 41
Rear Gearcase Bolts 25 34
Lower Hub Carrier Bolts 37 50
Upper Hub Carrier Bolts 37 50
ADC Pump Screws (17-23) 1.9 - 2.5
ADC Cover Screws 7 - 11 9.4 - 14.9
ADC Bleed Valves (80) 9
P
ART NUMBER TOOL DESCRIPTION
2872608 Roller Pin Removal Tool
8700226 CV Boot Clamp Pliers
2870772 1 3/4” Straight Wrench
PA-48542
ADC Gearcase Piston
Installation Tool
GEARCASE DESCRIPTION
Centralized Hilliard
Demand Drive LT
Premium Hub Fluid
8.97 oz. (265 ml)
Centralized Hilliard
w/ ADC
Demand Drive LT
Premium Hub Fluid
9.3 oz. (275 ml)
ADC Gearcase
Pump Reservoir
Polaris ADC Hydraulic
Fluid
Rear Gearcase
AGL Synthetic or ADF
5.0 oz. (150 ml)
