7.15
FINAL DRIVE
7

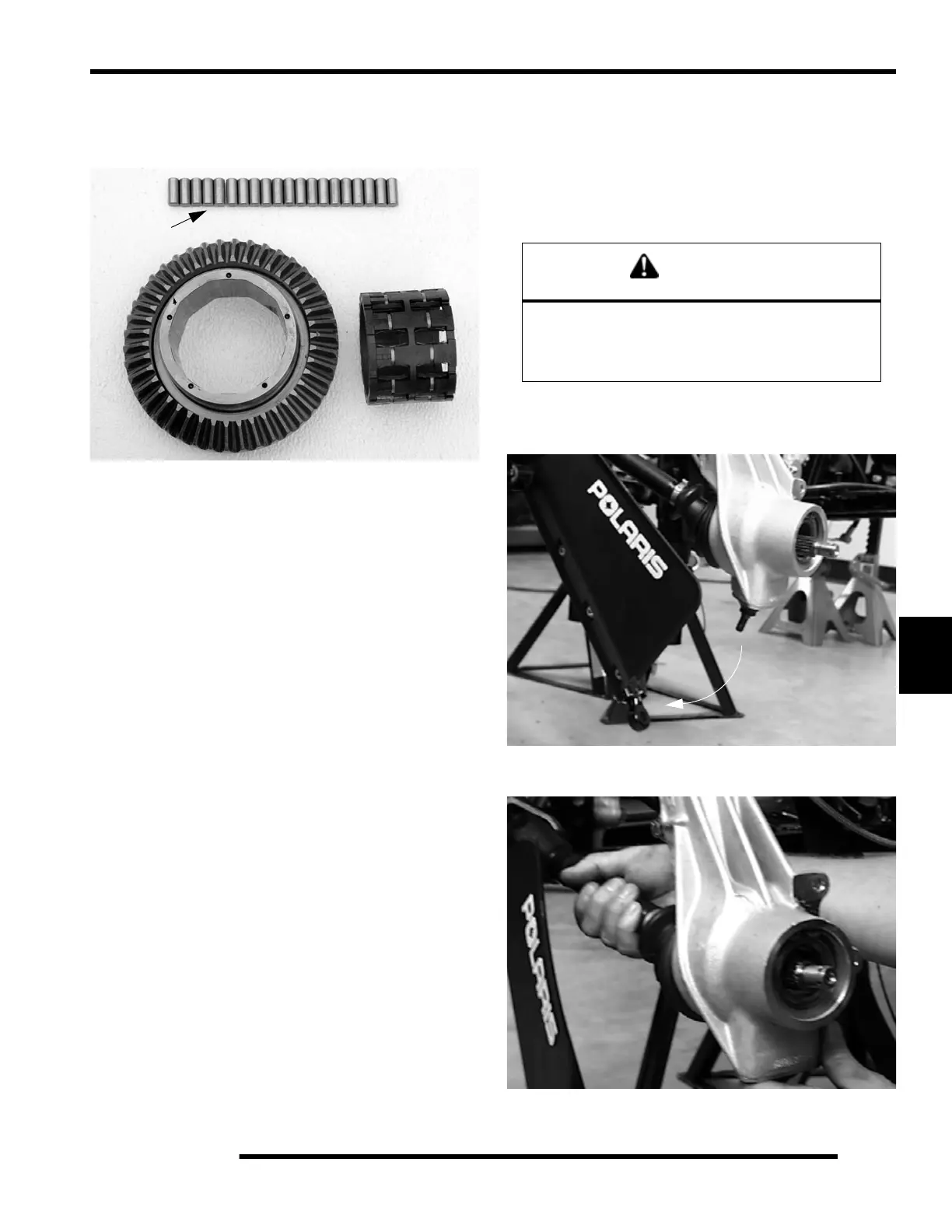

5. Inspect the rollers for nicks, scratches, and flat spots. Also
inspect the roll cage for cracks and ensure the rollers are
able to slide up and down and in and out freely within the
roll cage sliding surfaces.
Gearcase Removal
1. Stop engine, place machine in Park and set parking brake.
2. Loosen left front wheel nuts slightly.
3. Elevate the machine until the front wheels are off the
ground and support machine under footrest/frame area.
4. Remove left wheel nuts and wheel.
5. Remove cotter pin, lower ball joint nut and A-arm from
ball joint.
6. Pull the hub and strut assembly out and pull the drive-shaft
out of the hub.
Rollers
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
service procedure. Wear eye protection when
removing and installing bearings and seals.
