8.7
SPORTSMAN TRANSMISSION
8

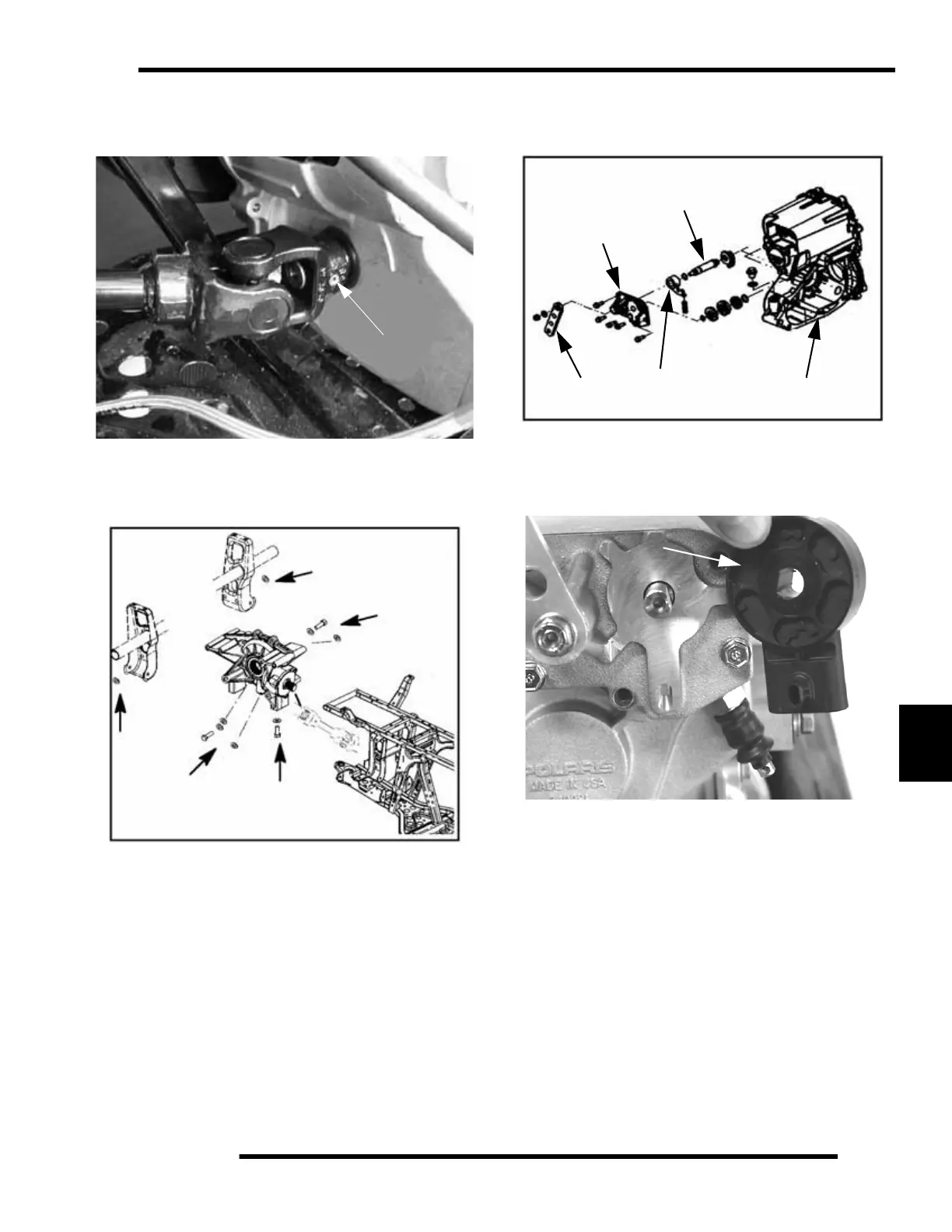

11. Use the Roll Pin Removal Tool (PN 2872608) to remove
the roll pins from the front prop shaft and the rear prop shaft.
Remove the front propshaft.
12. To remove the rear propshaft, loosen or remove the bolts
that secure the rear gearcase. Move the rear gearcase back
just enough to slide the rear propshaft from the transmission
shaft.
13. Remove left side transmission bracket, rear bracket, and
lower right bracket bolt.
14. Remove front transmission-to-engine mount bolts. See
illustration.
15. Remove transmission from right side of frame.
Disassembly
1. Place the bellcrank in neutral position.
2. Remove the nut, and washer that secure the bell crank.
Remove the bellcrank.
3. Remove the e-clip and then remove the transmission switch
(A).
Remove Roll Pin
Remove or loosen Rear
Gearcase Bolts
Shift Shaft
Cover
Bellcrank
Detent Pawl
Case
A
To Next Page
