ACCESSORY POWER
Wire Connections
Winch Installation
The Sportsman models have the main winch cables routed and
installed from the factory. This enables quick installation.
Refer to Chapter 2 for more information on winch installation
and operation.
Accessory Power Wires
The accessory power leads for all accessories are located under
the front cover. The wires are 12 Volt wires and are Orange /
White in color. To locate the wires, remove the front cover. The
wires will be located in the main wire loom on the right side.
If you have trouble locating the Orange / White wires remove
the left side panel and search under the front fender area.
NOTE: Refer to the accessory instructions for
accessory hook-up and installation.

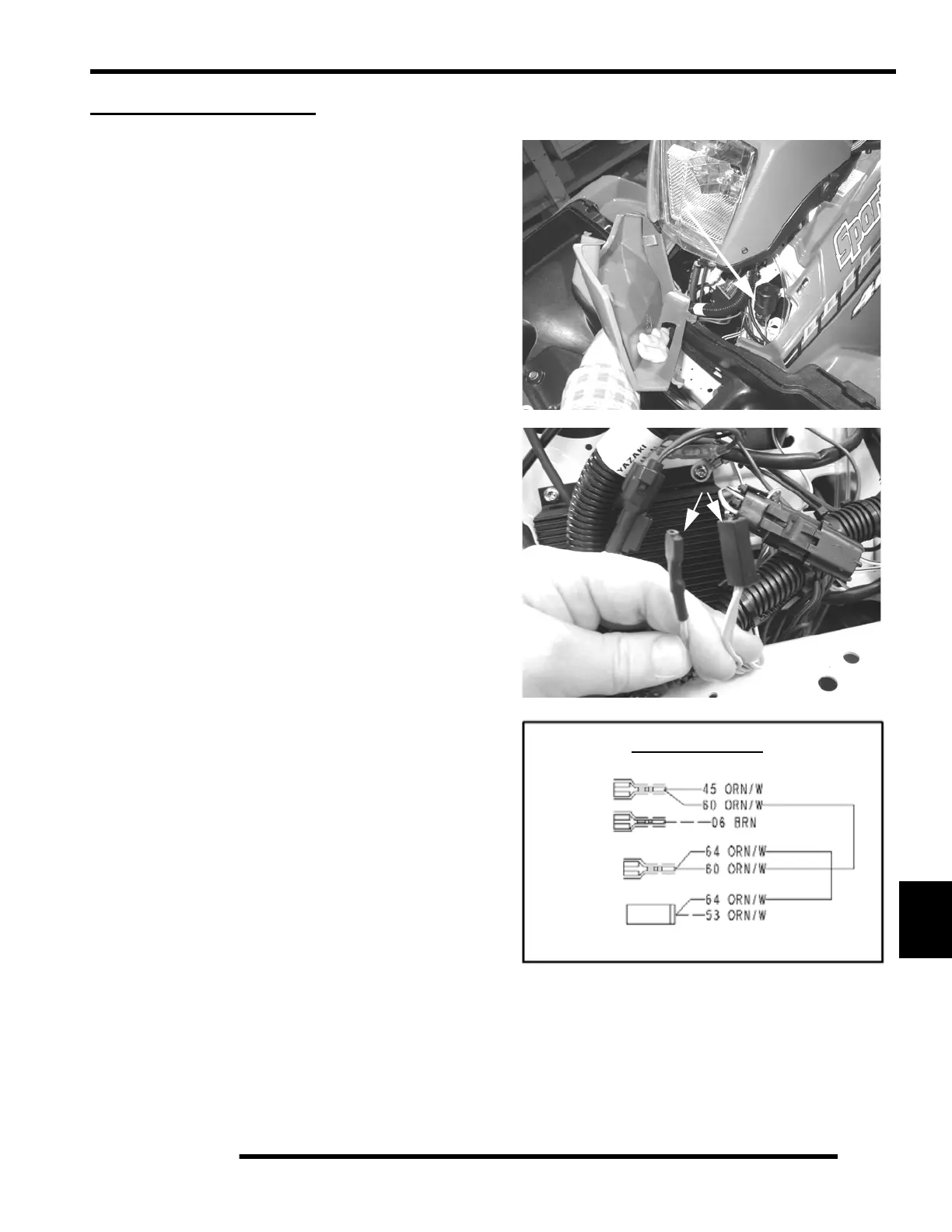

Orange/White Wires Located In This Area
Orange/White Wires
Accessory Wires
Power Point
Acc #1
(Located
Below Head
Lamps)
Acc. 2
To Next Page
