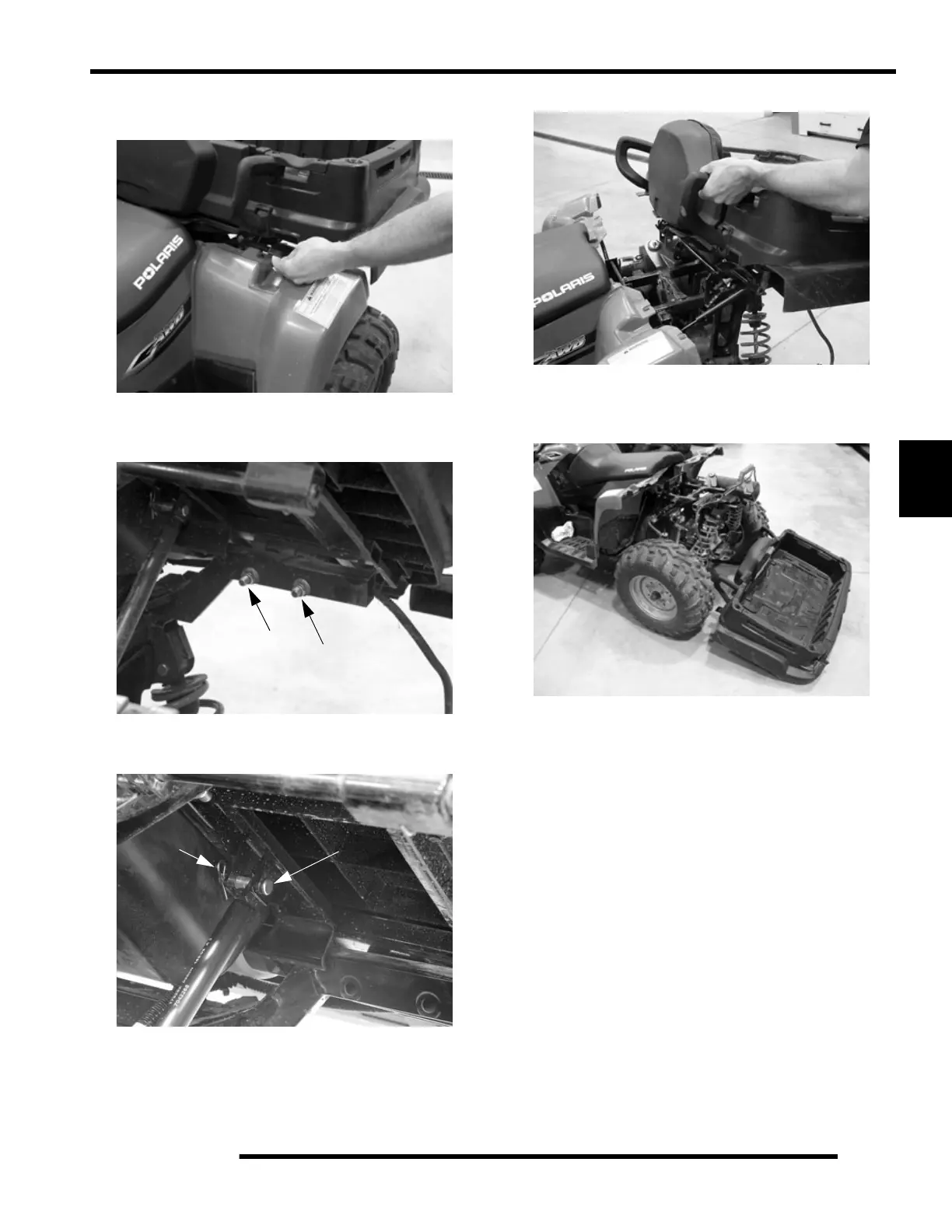

6. Lift up firmly in the cargo box release lever on either side
of the ATV.
7. Remove the four bolts attaching the rear of the cargo box
to the frame. There are two on each side.
8. Support the cargo box and remove the clip and pin holding
the gas shock to the cargo box.
9. Carefully remove the cargo box from the ATV.
10. Reverse the removal steps to reinstall the cargo box. Refer
to the standard fastener torque values in Chapter 1 during
assembly.
See “Standard Torque Specifications” on page 1.10.
Clip
Pin
