7.20
FINAL DRIVE

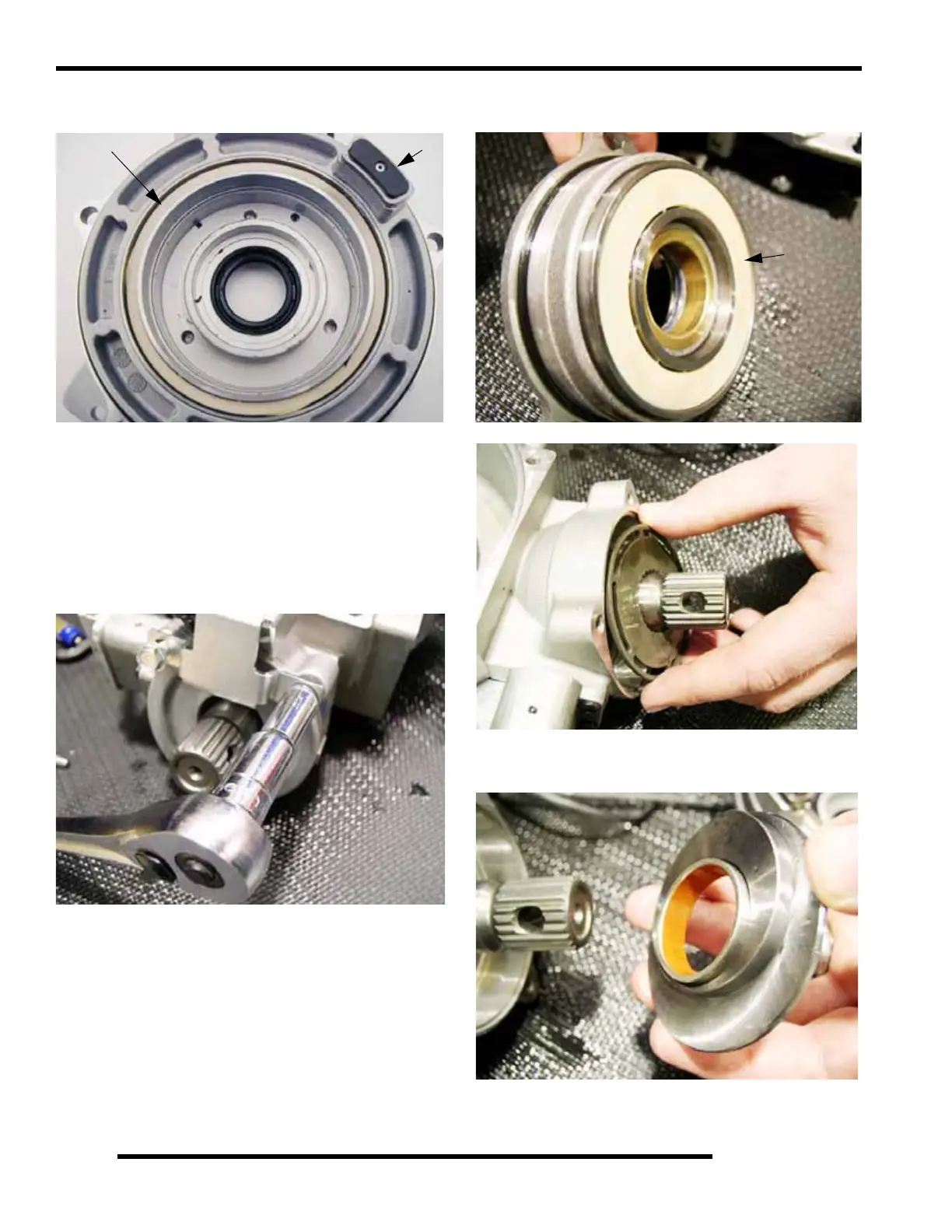

14. Inspect the magnetic coil (1) in the outer cover plate
assembly. Inspect the backlash pad (2) for excessive wear.
NOTE: See “FRONT GEARCASE DIAGNOSIS” in this
chapter.
NOTE: Ring gear backlash (2) is set at the factory.
No adjustment is required, unless the front cover is
replaced or the back lash pad screw is removed.
See the “FRONT GEARCASE ASSEMBLY” in this
chapter for details on backlash setting.
15. Remove the bolts retaining the input shaft cover and pinion
gear assembly.
16. Inspect the magnetic coil (1) and bushing in the input cover
plate assembly. Replace the input cover seal.
17. Remove the splined armature plate (1).
18. Remove the eccentric cam assembly. Inspect the cam (1)
and bushing (2) for wear or damage. Replace component
as required.
1
2
1
1
1
2
