X2 / Touring Transmission

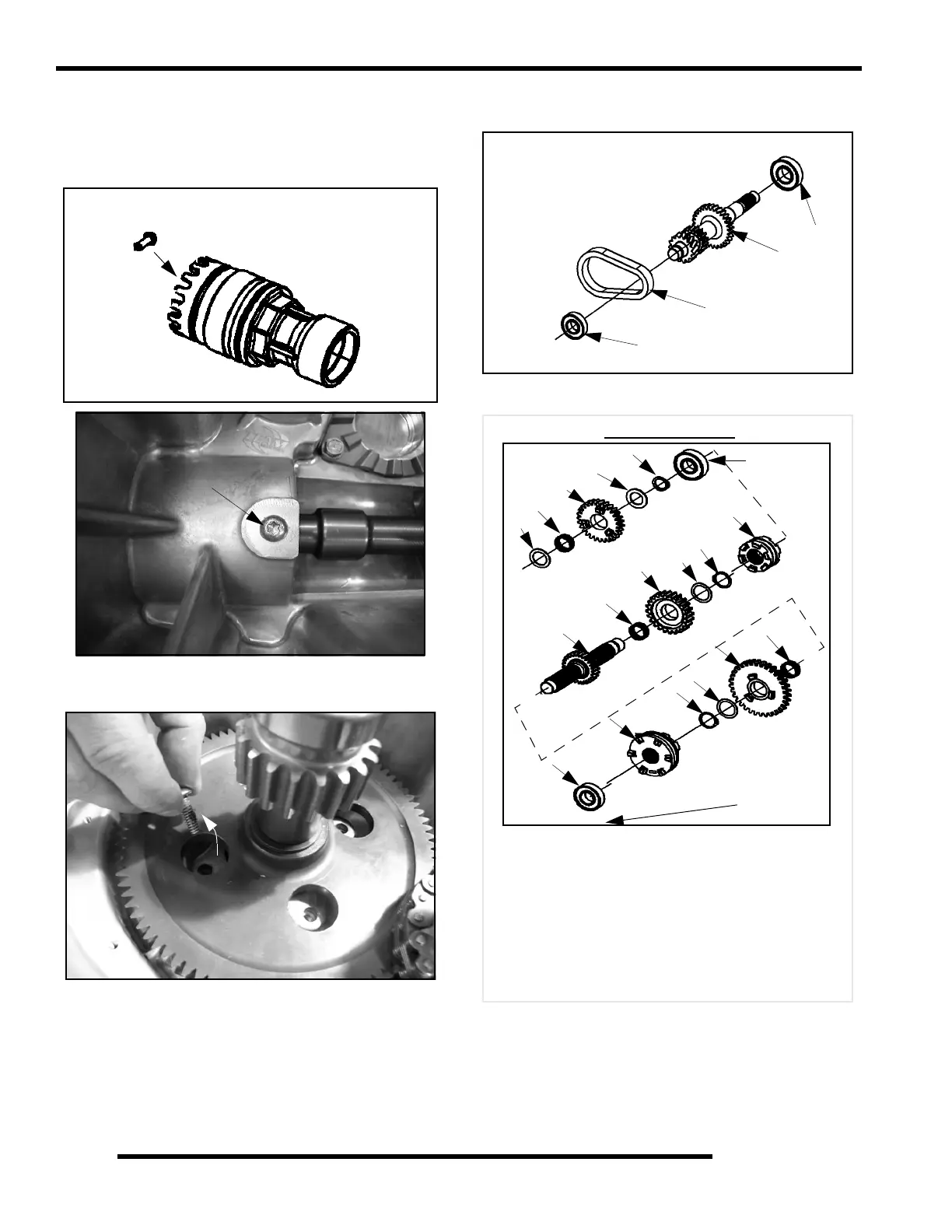

2. Once the gear backlash is found, to install the snorkel lock
screw, you may have to rotate the snorkel tube clockwise
or counterclockwise slightly. This will allow the lock screw
to thread itself into one of the slots of the snorkel tube (See
illustration below) to secure the snorkel tube.
3. With the snorkel shaft assembly in place, remove the 4 Torx
screws from the output shaft assembly. Remove the output
shaft assembly.
4. Assemble the input shaft assembly if previously
disassembled.
5. Assemble the reverse shaft assembly if previously
disassembled.
Screw Fits in Slots of Snorkel Tube
8-12 ft.-lbs. (11-17) Nm
Input Shaft Assembly
A. Ball Bearing
B. Input Shaft
C. Silent Chain
A
A
B
C
REVERSE SHAFT
Towards Inside
of Case
A. Ball Bearing
B. Engagement Dog
C. Retaining Ring
D. Washer
E. Gear
F. Needle Bearing
G. Reverse Shaft
H. Needle Bearing
I. Sprocket
J. Washer
K. retaining Ring
L. Engagement Dog
M. Washer
N. Needle Bearing
O. Gear
P. Washer
Q. Retaining Ring
R. Ball bearing
A
B
C
D
E
F
G
H
I
J
K
L
R
Q
P
O
N
M
