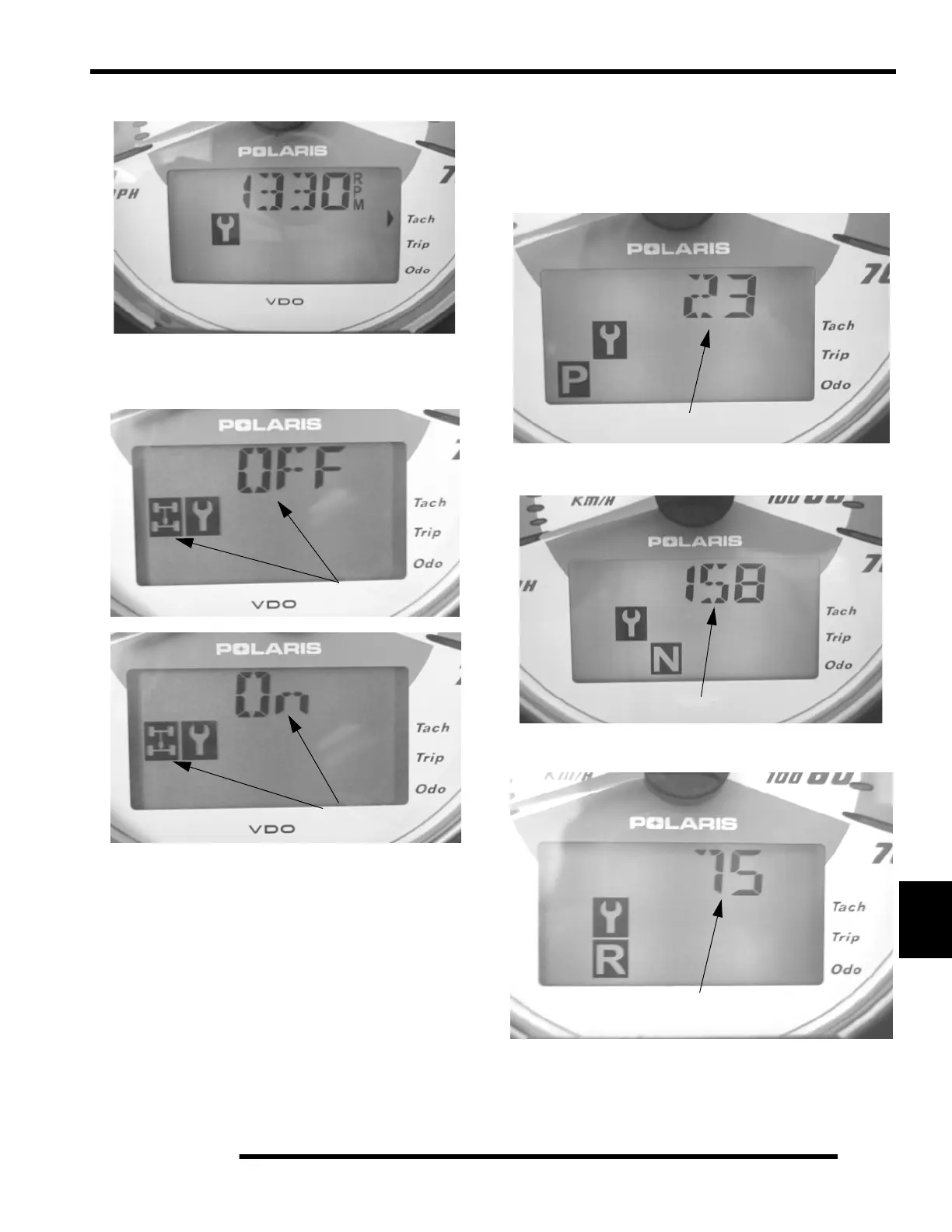

Screen 3 - Tachometer: (Ill. 3) indicates engine RPM.
Screen 4 - AWD Diagnostic Screen: This screen indicates
whether or not current is flowing through the AWD coil on
models with AWD.
Screen 5 - Gear Circuit Diagnostic:
This screen displays the resistance value (in ohms) being read at
the gear switch input of the gauge.
NOTE: 10--20% Variance from these reading is within
normal parameters.
Ill.3
AWD Off
AWD On
23 Ohms in Park
158 Ohms in Neutral
75 Ohms in Reverse
