4.2
ELECTRONIC FUEL INJECTION
GENERAL INFORMATION
Special Tools

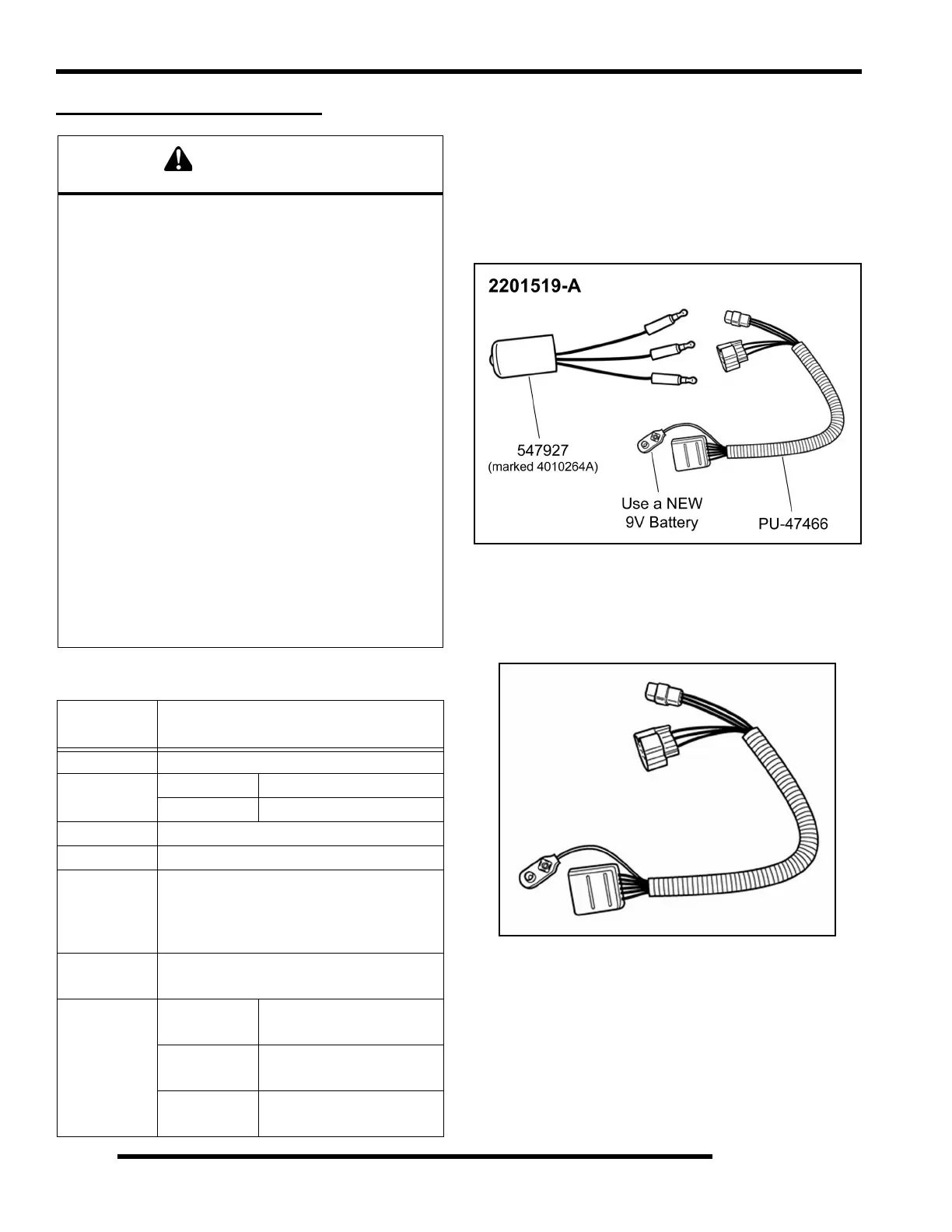

Throttle Position Sensor (TPS) Tester - 2201519-A
This tester allows the use of a digital multi-meter to test TPS
function as well as perform the TPS adjustment procedure.
NOTE: This TPS Tester replaces the existing tester
(PU-47082), which included the 4010264 regulator. If
your dealership has PU-47082 and 4010264, you DO
NOT need to order 2201519-A as a replacement.
TPS Tester Wire Harness - PU-47466
This TPS wire harness is part of 2201519-A and incorporates
two TPS connectors to allow for multi-use applications.
NOTE: Voltage Regulator (547927) is required if
using TPS Tester Wire Harness (PU-47466). You may
already have this regulator (marked 4010264) as part
of another TPS Tester Kit. If you do not have this
regulator, you must order one from SPX at 1-800-
328-6657.
* Gasoline is extremely flammable and explosive
under certain conditions.
* EFI components are under high pressure.
Verify system pressure has been
relieved before disassembly.
* Never drain the fuel system when the engine is hot.
Severe burns may result.
* Do not overfill the tank. The tank is at full capacity
when the fuel reaches the bottom of the filler neck.
Leave room for expansion of fuel.
* Never start the engine or let it run in an enclosed area.
Gasoline powered engine exhaust fumes are
poisonous and can cause loss of consciousness
and death in a short time.
* Do not smoke or allow open flames or sparks in or near
the area where refueling is performed or where
g a so li ne is st or ed .
* If you get gasoline in your eyes or if you should
swallow gasoline, seek medical attention immediately.
* If you spill gasoline on your skin or clothing,
immediately wash with soap and water
and change clothing.
* Always stop the engine and refuel outdoors
or in a well ventilated area.
PART
NUMBER
TOOL DESCRIPTION
2201519-A Throttle Position Sensor (TPS) Tester
PU-47466 TPS Tester Wire Harness
547927 TPS Tester Regulator
PU-43506-A Fuel Pressure Gauge Kit
PV-48656 Fuel Pressure Gauge Adaptor
PU-47063-A
Digital Wrench™
Diagnostic Software
(Includes most recent version of software
w/serial number, standard interface cable
and SmartLink Module Kit)
PU-47471
Digital Wrench™ SmartLink Module Kit
(PU-47470, PU-47469, PU-47468)
PU-47470
Digital Wrench™
PC Interface Cable
PU-47469
Digital Wrench™
Vehicle Interface Cable
PU-47468
Digital Wrench™
SmartLink Module
