5.12
BODY / STEERING / SUSPENSION

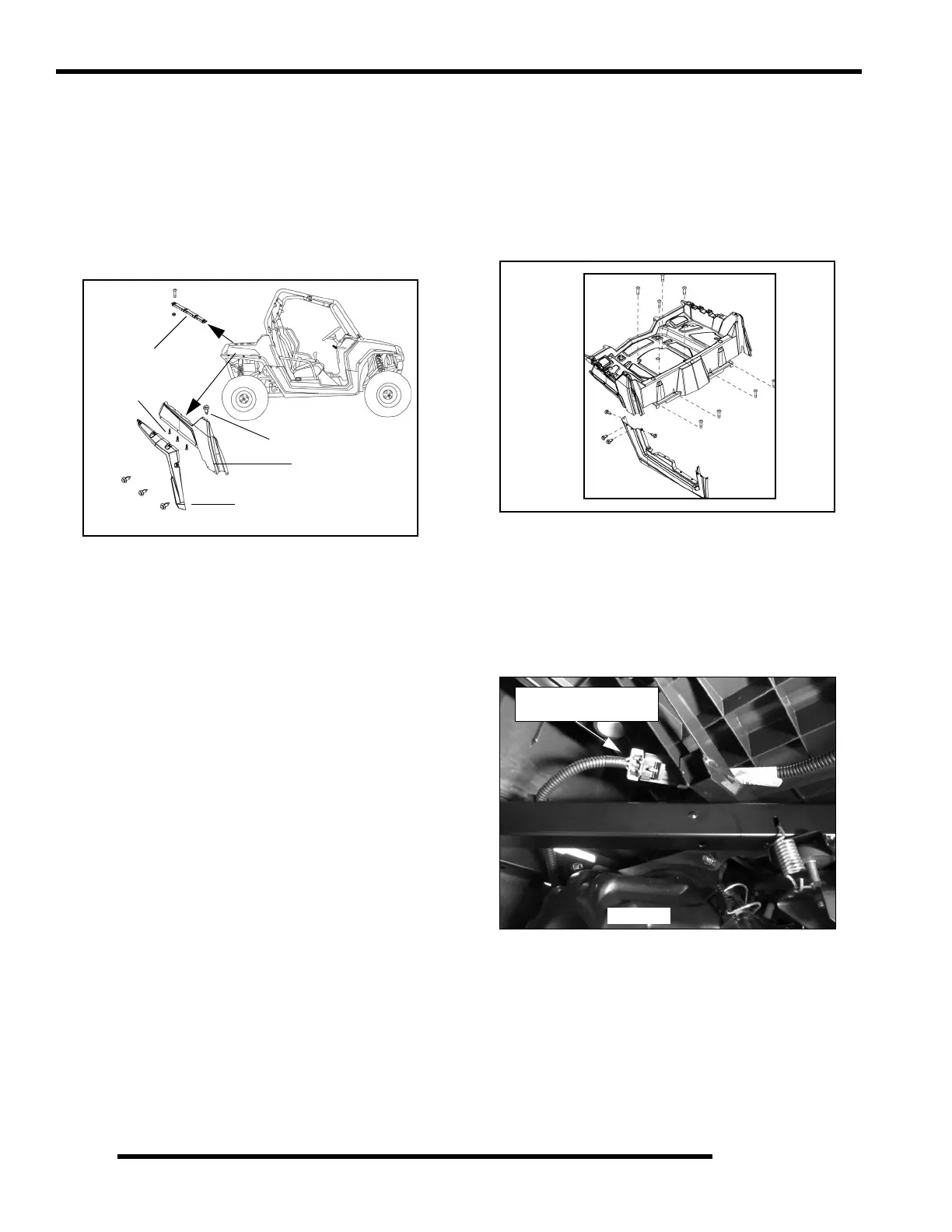

Rear Fender, Flair and Tie Down Removal
1. Remove the rear bumper (see “BODY COMPONENT
REMOVAL - Rear Bumper”).
2. Remove the push rivets that retain the rear portion of the
rocker panels to the rear fenders.
3. Remove the (8) T27 Torx screws and remove the fender
flair.
4. Remove the (3) Torx screws from the bottom side of the
fender and the upper push rivet from the top side. Remove
the fender from the vehicle.
5. Remove the (4) fasteners that retain the tie-down brackets
to the cargo box and remove from vehicle.
Cargo Box Assembly Removal
1. Remove the seats and rear panel or cover (see “Seats” and
“Rear Service Panel”).
2. Remove the (4) Torx screws retaining the lower portion of
the rear bumper to the frame (see “Rear Bumper”).
3. Remove the (4) screws from the middle of the cargo box.
4. Remove the (4) Torx screws that attach the front portion of
the cargo box to the frame.
5. Remove the (6) Torx screws and (2) push rivets that attach
the rocker panels to the cargo box on each side.
6. Disconnect the taillight harness from the chassis harness
and remove the cargo box assembly from the vehicle.
Fender
Fender
Flair
Tie-Down
Push
Rivets
Torx
Screws
Push
Rivet
Disconnect Taillight
Connector
Air Box
To Next Page
