Polaris Ranger RZR SW

9.10
BRAKES
FRONT CALIPER SERVICE

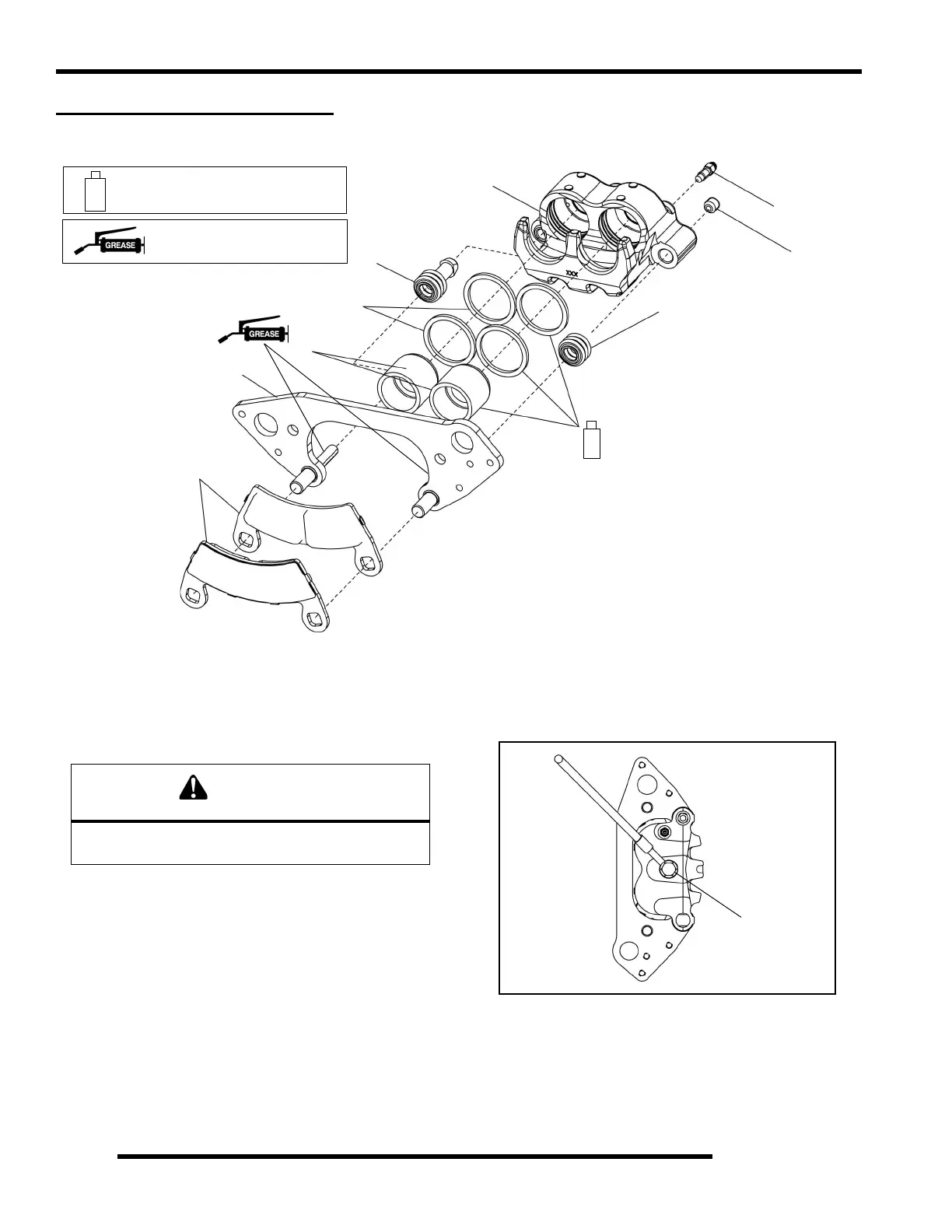

Caliper Exploded View
Caliper Removal
1. Elevate and safely support the front of the vehicle.
2. Remove the (4) wheel nuts and the front wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake fluid
when removing the line. Remove brake line from caliper.
A
B
C
D
47 in. lbs.
(5.3 Nm)
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Assy.
D. Boots
E. Square O-rings
F. Pistons
G . C a l i p e r M o u n t
H. Brake Pads
F
G
H
Apply Polaris All Purpose
Grease
Apply Polaris DOT 4 Brake Fluid
to Components
D
E
CAUTION
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
Remove
Brake Line
