5.13
BODY / STEERING / SUSPENSION
5
Rocker Panels, Console and Floor
Rocker Panel Removal

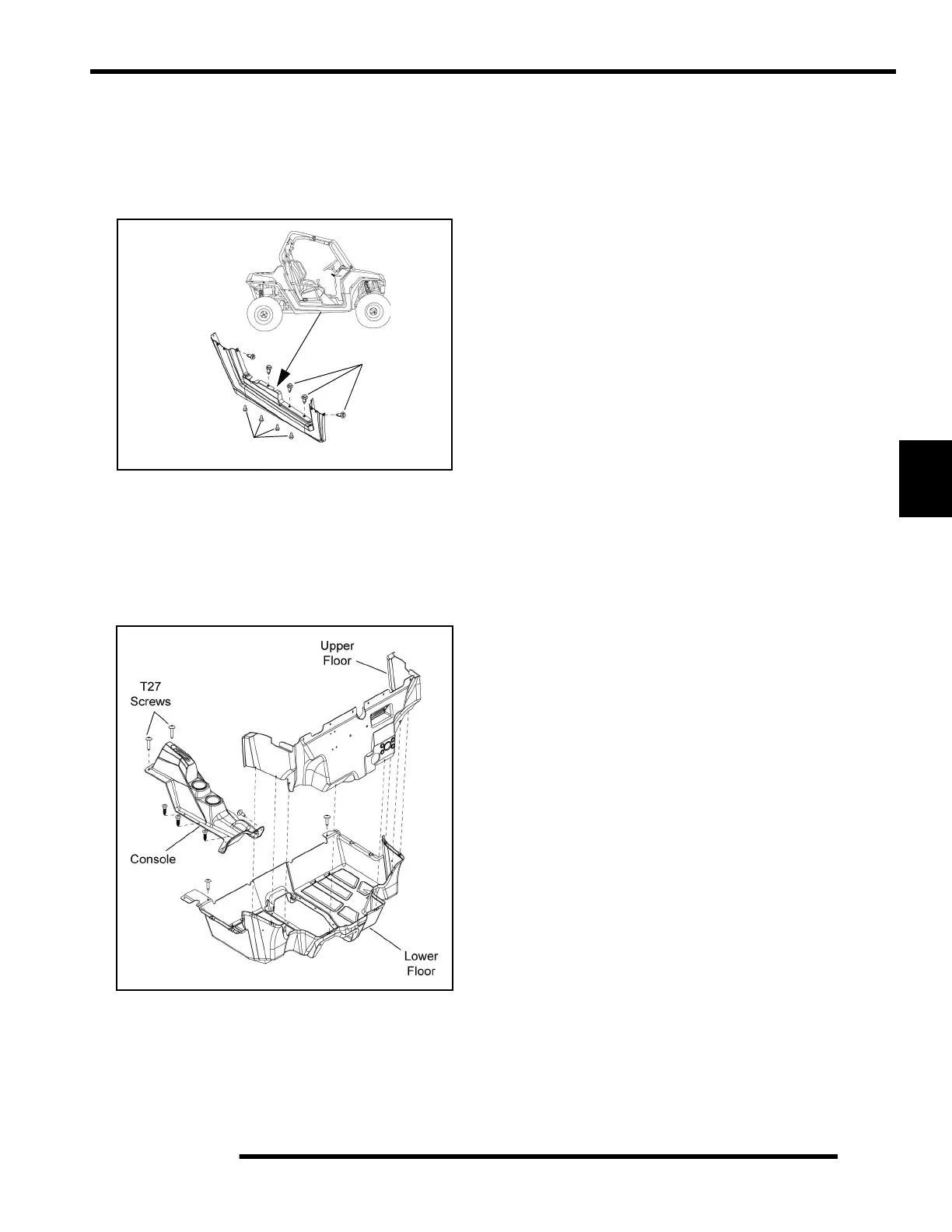

1. Remove the push rivets and Torx screws retaining the
rocker panel and remove panel from the vehicle.
Console and Lower Floor Removal
1. Remove both seats and rocker panels (see “Rocker Panel
Removal”).
2. Remove the T27 screws retaining the console to the floor.
3. Remove the shift handle knob and remove the console.
4. Remove the Torx screws retaining the upper floor to the
lower floor.
5. Remove the Torx screws retaining the rear portion of the
floor and remove the lower floor from the vehicle.
