10.16
ELECTRICAL
6. Adjust the beam to desired position. Repeat the procedure
to adjust the other headlight.

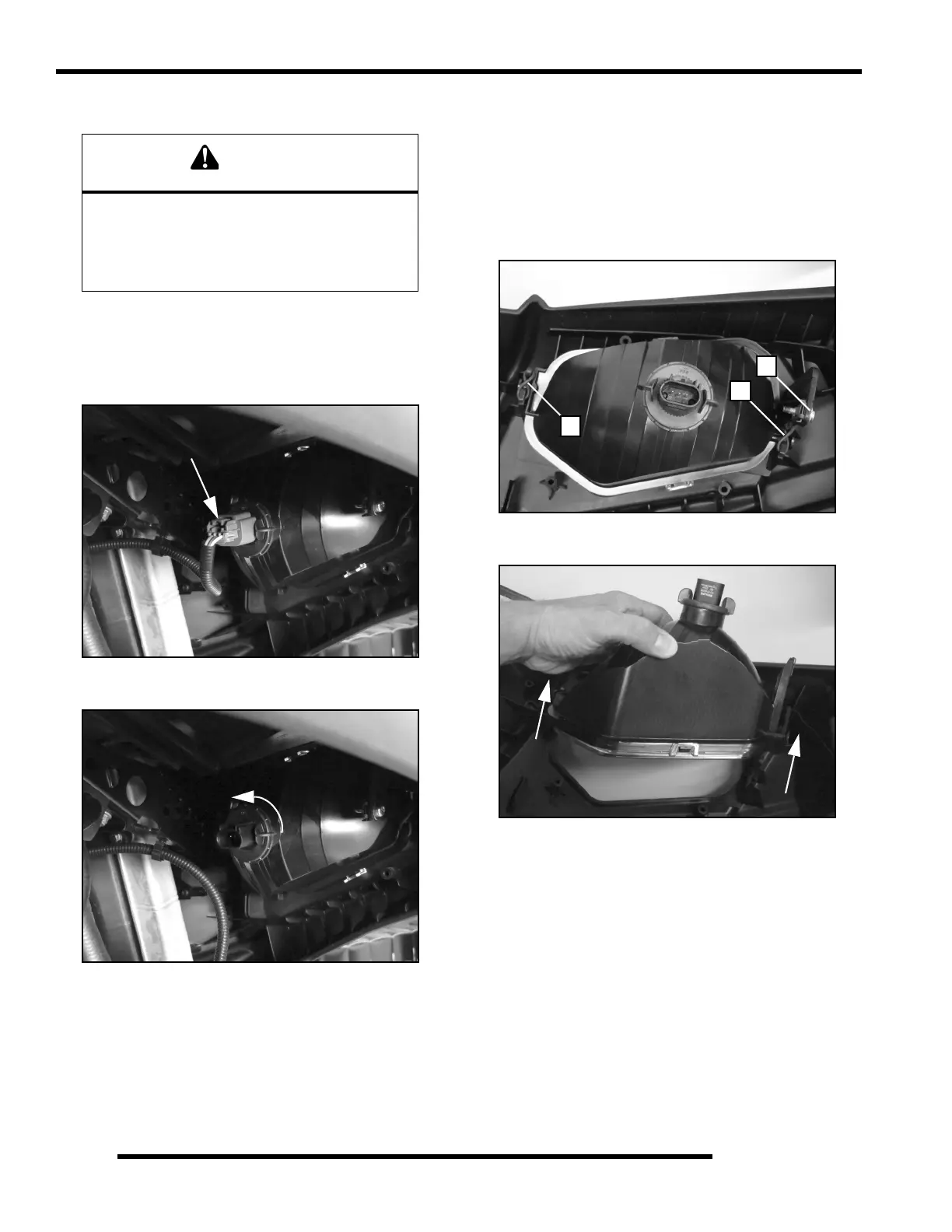

Headlamp Bulb Replacement
1. Disconnect the wire harness from the headlamp bulb. Be
sure to pull on the connector, not on the wiring.
2. Turn the bulb counterclockwise to remove it.
3. Insert new bulb. Reinstall the wire harness onto the
headlamp assembly.
NOTE: Make sure the tabs on the bulb locate
properly in the housing.
Headlamp Housing Removal
1. Disconnect the wire harness from the headlamp bulb. Be
sure to pull on the connector, not on the wiring.
2. Remove the O-rings (A) from the headlamp brackets on
both sides of the headlamp.
3. Remove the adjustment screw (B) from the bracket.
4. Carefully remove the headlamp from the front bumper.
Headlamp Housing Installation
1. Install the headlamp housing back into the front bumper.
2. Secure the headlamp housing with the rubber O-rings (A)
on both sides of the headlamp and install the adjustment
screw (B).
3. Reconnect wire harness or re-insert bulb if previously
removed.
4. Adjust headlights using the “Headlight Adjustment”
procedure in this section.
Due to the nature of light utility vehicles and
where they are operated, headlight lenses
become dirty. Frequent washing is necessary to
maintain lighting quality. Riding with poor
lighting can result in severe injury or death.
