10.5
ELECTRICAL
10

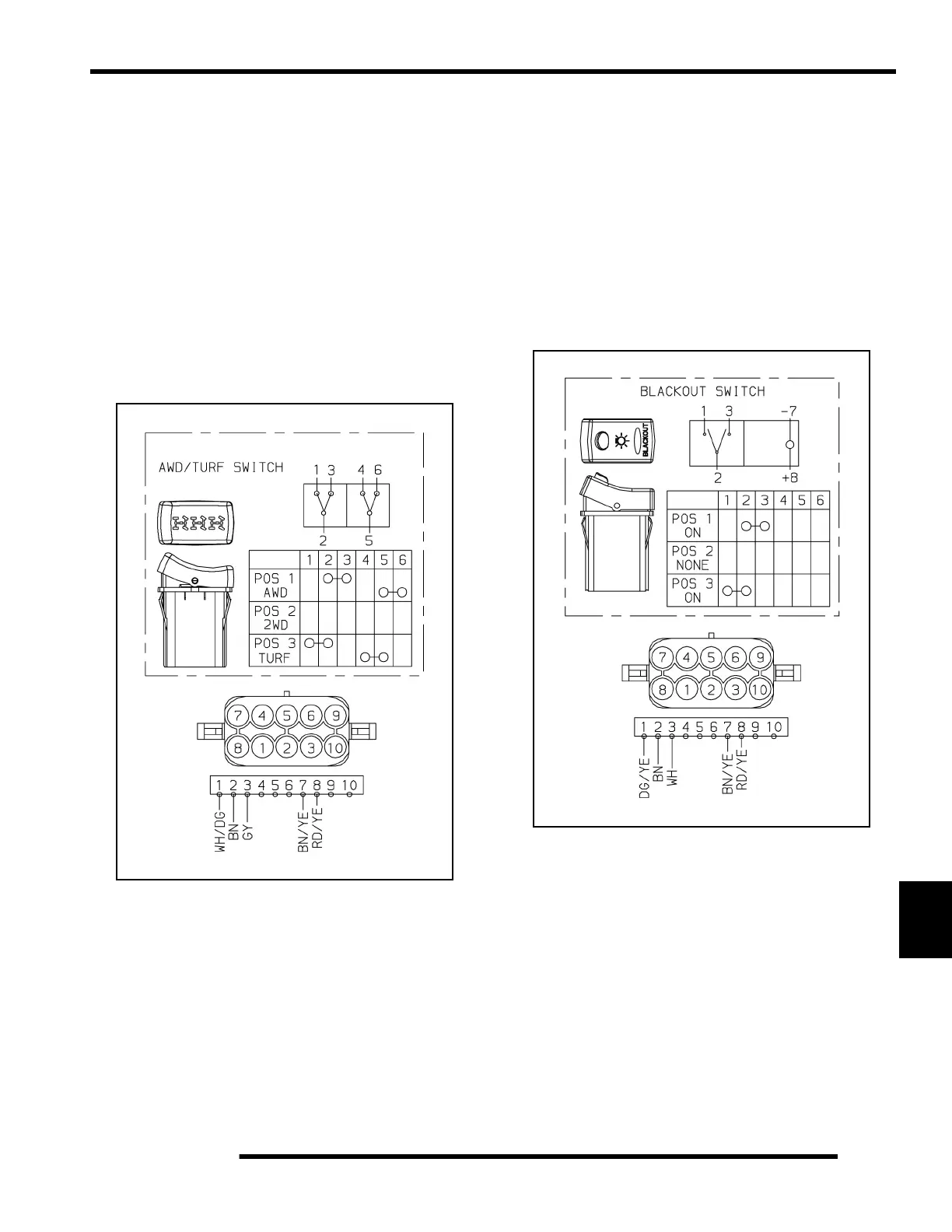

AWD / 2WD / TURF Switch
1. Disconnect the AWD / 2WD / TURF switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (AWD / 2WD / TURF).
If any of the tests fail, replace the switch assembly.
• Move the switch to AWD. There should be continuity
between switch pins 2 and 3.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be continuity
between switch pins 1 and 2.
Blackout Switch
1. Disconnect the blackout switch harness by depressing the
connector locks and pulling on the connector. Do not pull
on the wiring.
2. Test between the 2 sets of outputs (OFF / ON). If any of the
tests fail, replace the blackout switch assembly.
• Move the switch to ON (POS 1). There should be
continuity between switch pins 2 and 3.
• Move the switch to OFF (POS 3). There should be
continuity between switch pins 1 and 2.
NOTE: Pins 7 and 8 provide power and ground to
light the switch lamp.
