4.14
ELECTRONIC FUEL INJECTION
3. Measure between the pin terminal leading from the Black
wire and ground. A resistance value of 0 - 0.5 ± 10%
should be obtained.
4. If the resistance is correct.
- Test the main harness circuit between the sensor
connector terminals and the corresponding pin terminals at
the ECU (see wiring diagram).
- Check the sensor mounting, air gap, flywheel ring gear for
damage or runout, and flywheel key. Follow the “CPS
Replacement” procedure to inspect CPS and flywheel ring
gear for damage.
5. If the resistance is incorrect, follow the “CPS Replacement”
procedure.

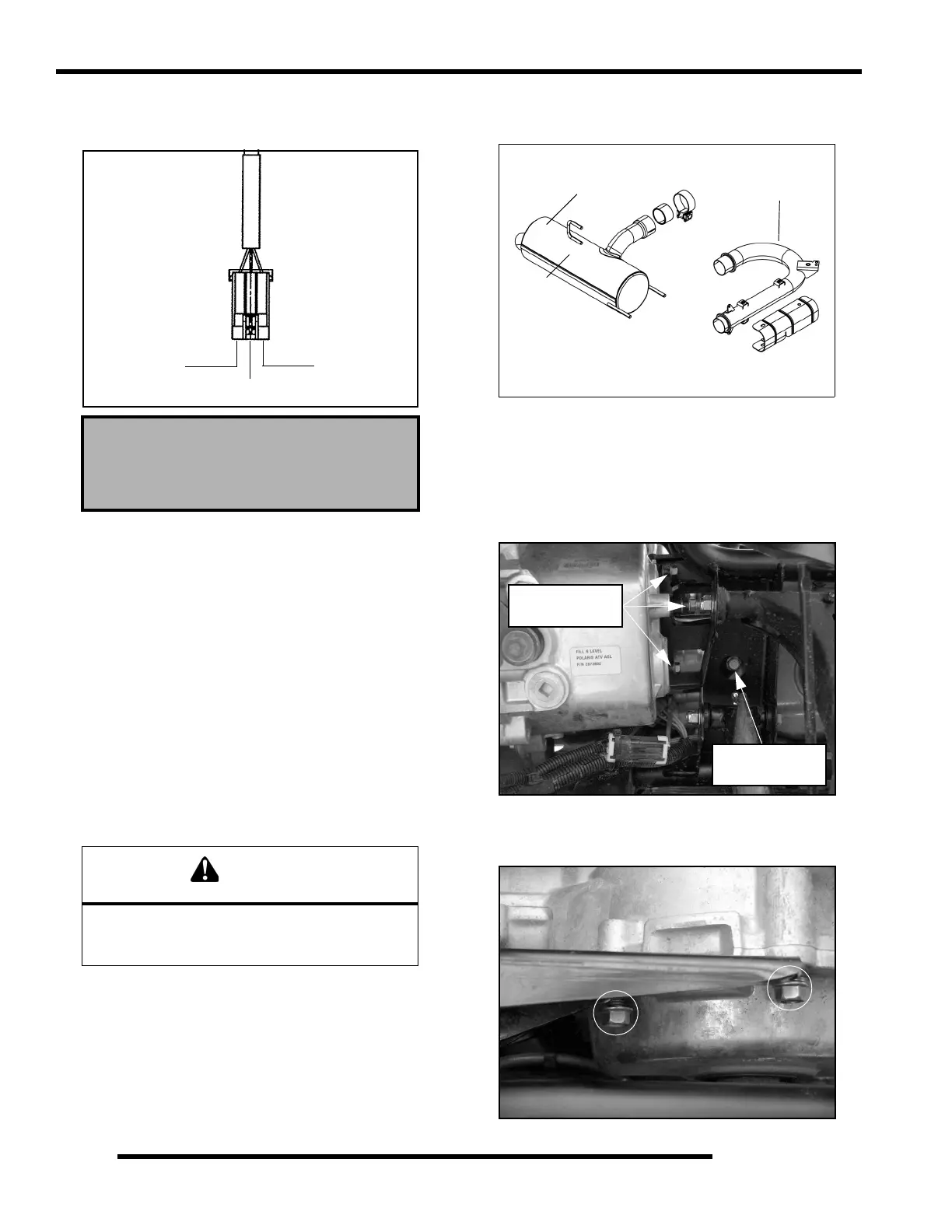

CPS Replacement
Removal
1. Safely support the rear of the vehicle off the ground and
remove the left-hand rear tire.
2. If not done already; disconnect the CPS harness connector
(see illustration under “CPS Test”).
IMPORTANT: In order to remove the CPS, the rear
portion of the exhaust system and the mounting
bracket between the transmission and rear gearcase
will need to be removed.
3. Remove the exhaust pipe between the elbow pipe and the
exhaust silencer. Remove the exhaust silencer.
4. Remove the (3) bolts retaining the front portion of the
mounting bracket to the transmission. Retain the bolts,
washers, and spacers for installation.
5. Remove the bottom bolt that attaches the bracket to the rear
gearcase through the hole in the frame support as shown.
6. Remove the (2) remaining fasteners that attach the bracket
to the side of the rear gearcase.
CPS Resistance Specification:
Yellow to White: 560 10%
Black to Ground: 0 - 0.5 10%
Serious injury may result if machine tips or falls.
Be sure the vehicle is secure before beginning
this service procedure.
Yellow
Black
White
CPS Harness
Rear Gearcase
Mounting Bolt
Transmission
Mounting Bolts
To Next Page
