BODY / STEERING / SUSPENSION

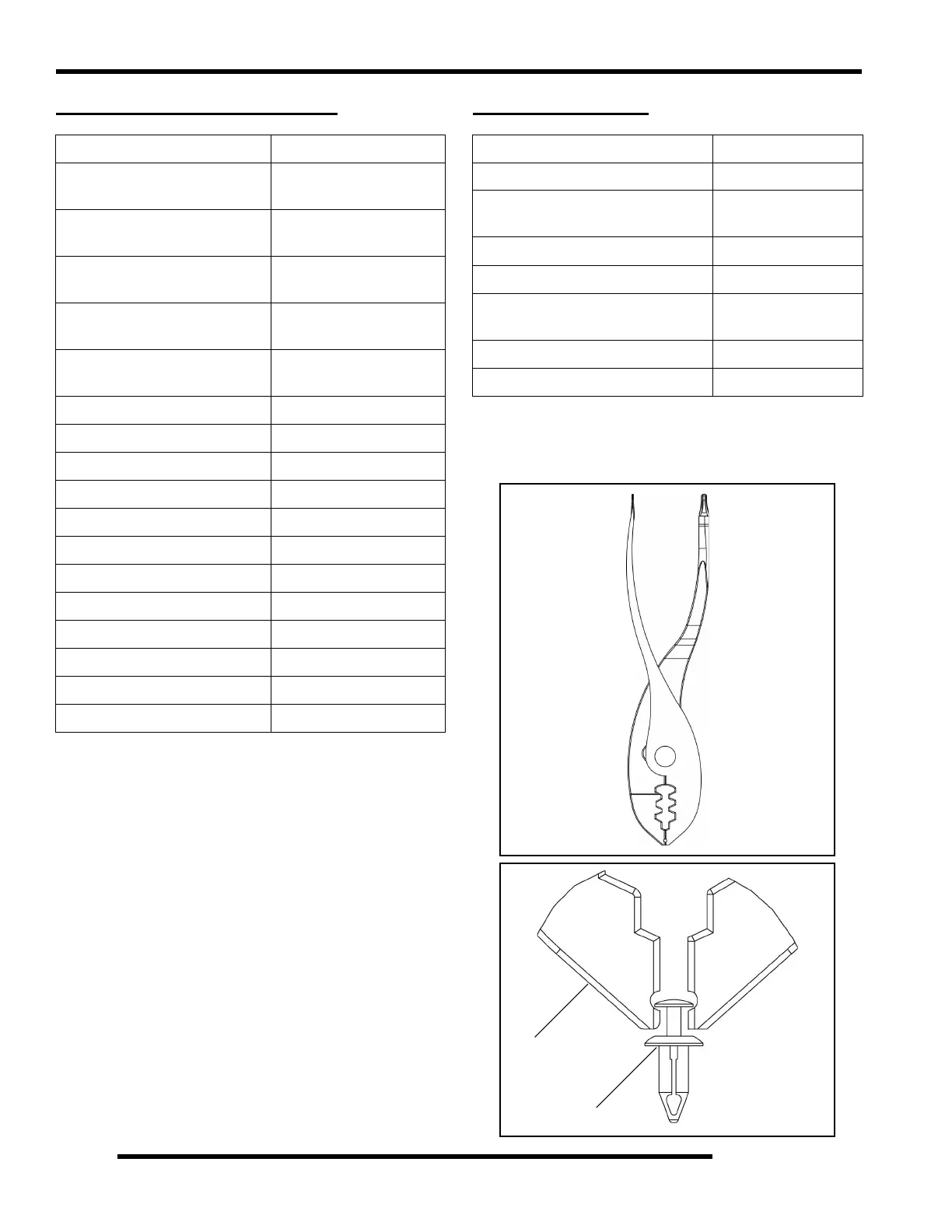

TORQUE SPECIFICATIONS SPECIAL TOOLS
Multi-Function Pliers
Included in the tool kit, the multi-function pliers is designed to
remove the plastic push rivets used to fasten body components.
ITEM TORQUE VALUE
Front LH/RH Upper / Lower
A-Arm Bolt
40 ft. lbs. (54 Nm)
Rear LH/RH Upper / Lower
A-Arm Bolt
40 ft. lbs. (54 Nm)
Lower LH/RH
Rear Bearing Carrier
40 ft. lbs. (54 Nm)
Upper LH/RH
Rear Bearing Carrier
40 ft. lbs. (54 Nm)
Outer Tie Rod to
Bearing Carrier Housing
42.5 ft. lbs. (58 Nm)
Front Ball Joint Pinch Bolts 22.5 ft. lbs. (30.5 Nm)
Shock Mounting Bolts 30 ft. lbs. (41 Nm)
Wheel Hub Castle Nuts 80 ft. lbs. (108 Nm)
Wheel Nuts (Steel Rims) 35 ft. lbs. (47 Nm)
Tie Rod End Jam Nut 13 ft. lbs. (18 Nm)
Seat Belt to Seat Base 40 ft. lbs. (54 Nm)
Tilt Shock Upper Fastener 7 ft. lbs. (10 Nm)
Tilt Shock Lower Fastener 12 ft. lbs. (16 Nm)
Steering Pivot Tube Fasteners 23 ft. lbs. (31 Nm)
Steering Wheel to Shaft 28 ft. lbs. (38 Nm)
Lower Steering Shaft to Box 30 ft. lbs. (41 Nm)
Steering Gear Box 17 ft. lbs. (23 Nm)
TOOL DESCRIPTION PART NUMBER
Gas Shock Recharging Kit 2200421
Shock Shaft Seal Protector
.625" Diameter
2201640
IFP Tool PS-45908
Shock Spanner Wrench 2871095
Shock Spanner Wrench
(Walker Evans and Fox Shocks)
2870803
Shock Spring Compressor Tool 2870623
Multi-Function Pliers 2876389
Pliers
Push Rivet
