7.23
FINAL DRIVE
7
5. Connect the AWD wire harness.
6. Refer to “FRONT DRIVE SHAFT - Drive Shaft
Installation” and install both front drive shafts into the front
gearcase.
7. Add the proper lubricant to the front gearcase. Refer to
Chapter 2 for fluid fill and change information.

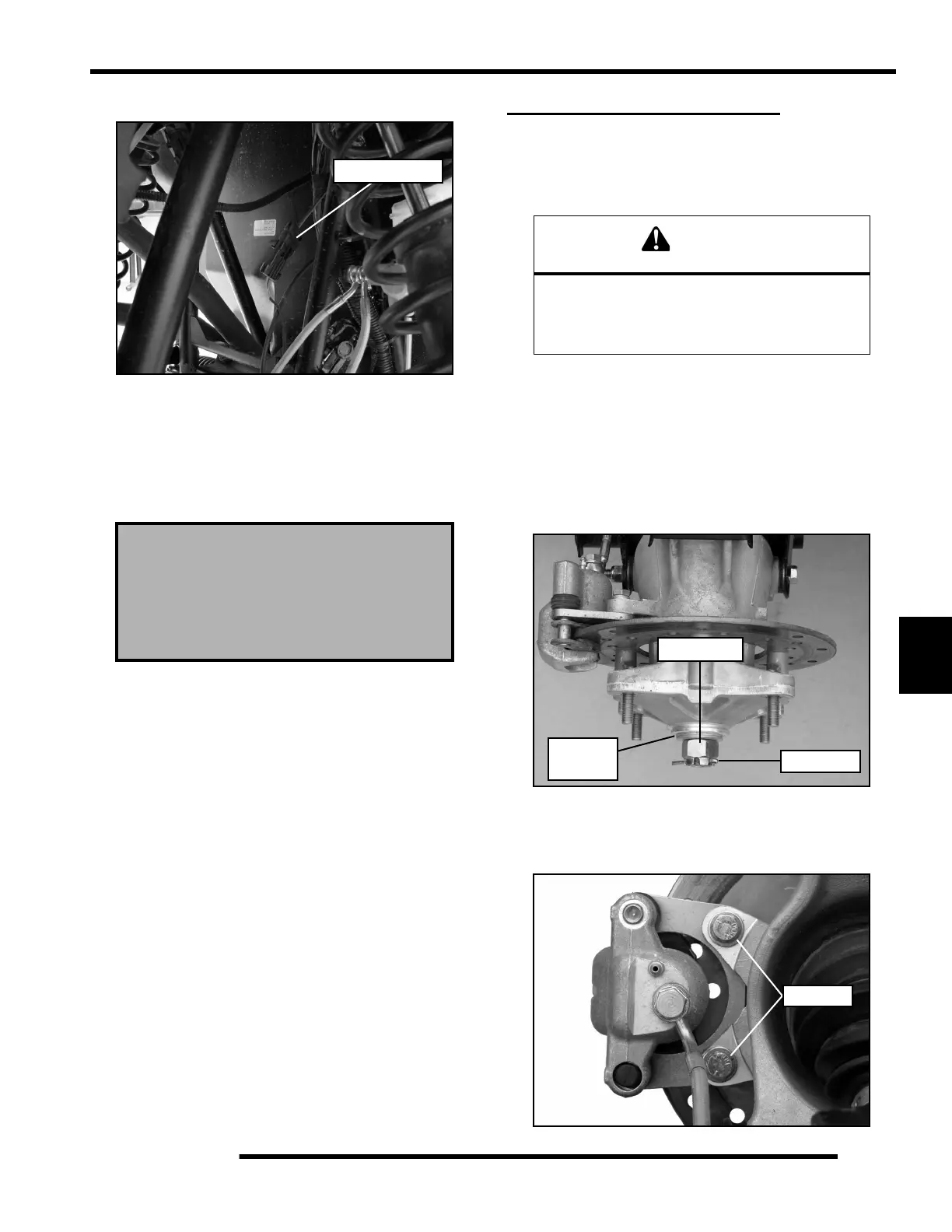

REAR BEARING CARRIER
Bearing Carrier Inspection / Removal
1. Elevate rear of vehicle and safely support machine under
the frame area.
2. Check bearings for side play by grasping the top and bottom
of the tire firmly and checking for movement. The tire
should rotate smoothly without binding or rough spots.
3. Remove the (4) wheel nuts and remove the rear wheel.
4. Remove the cotter pin and loosen the rear wheel hub castle
nut. Remove the nut, and (2) cone washers from the rear
wheel hub assembly.
5. Remove the two brake caliper mounting bolts.
CAUTION: Do not hang the caliper by the brake line. Use
wire to hang caliper to prevent damage to the brake line.
Polaris Demand Drive Plus
(PN 2877922)
Front Housing Capacity
6.75 fl. oz. (200 ml)
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
Castle Nut
Cotter Pin
Cone
Washers
To Next Page
