5.25
BODY / STEERING / SUSPENSION
5

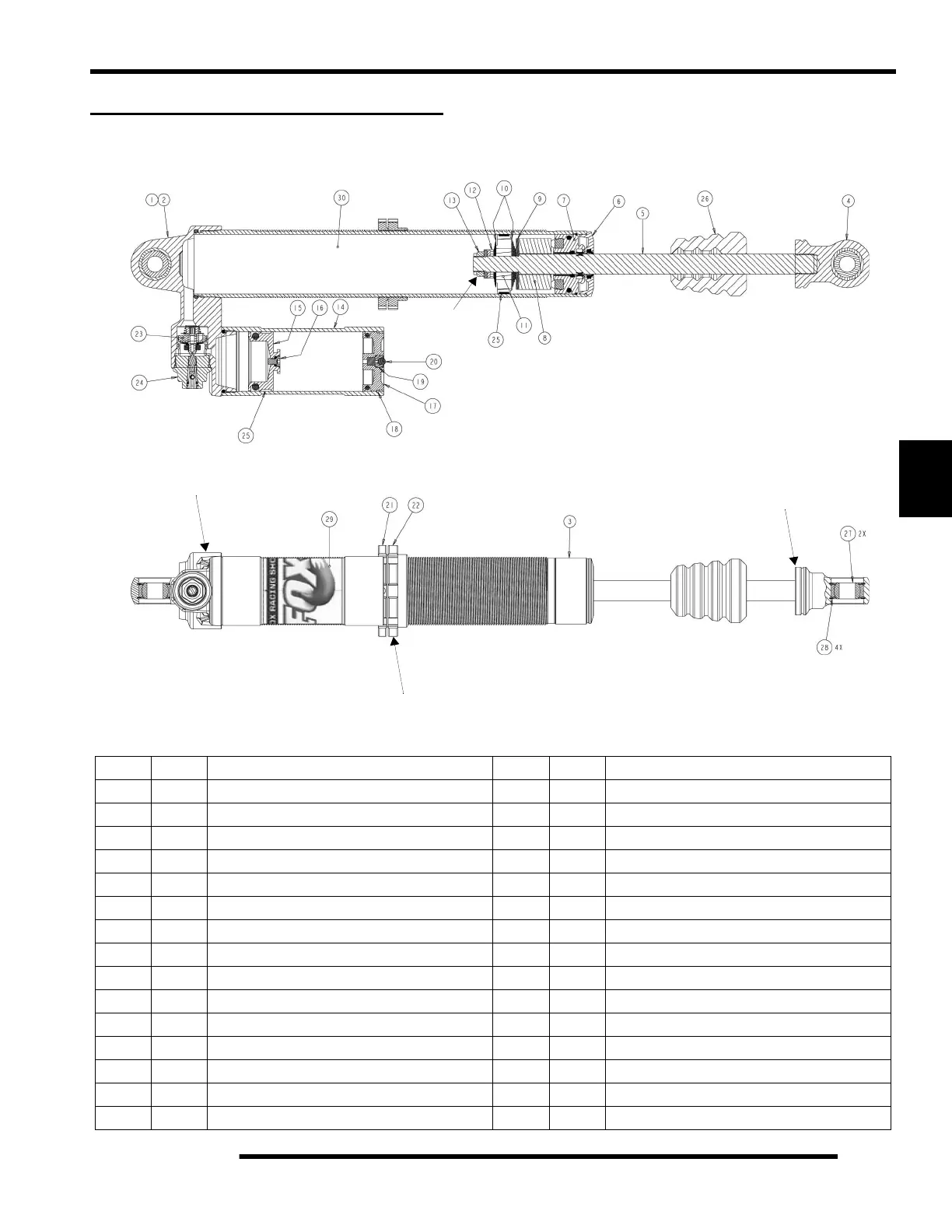

FOX™ SHOCK EXPLODED VIEWS
FOX™ 2.0 ‘Piggyback’ Shock
Ref. Qty Description Ref. Qty Description
1. 1 Body Cap Asm. 16. 1 Screw Asm.
2. 1 Body Cap 17. 1 Reservoir End Cap Asm.
3. 1 Body 18. 1 Retaining Ring
4. 1 Eyelet 19. 1 Pellet Retainer Set Screw, Air Valve
5. 1 Shaft 20. 1 Nylon Ball, Air Valve
6. 1 Bearing Cap Asm. 21. 1 Preload Ring, Jam Nut
7. 1 Bearing Asm. 22. 1 Preload Ring
8. 1 Spacer 23. 1 Damping Adjust Asm., Piston
9. 1 Plate, Top-Out 24. 1 Damping Adjust Asm., Concentric Adjuster
10. 1 Valving Asm. 25. 2 Bearing, External
11. 1 Piston, Damping 26. 1 Bumper
12. 2 or 3 Plate, Back-Up 27. 2 Bearing, Spherical
13. 1 Lock Nut 28. 4 Retaining Ring
14. 1 Reservoir 29. 1 Decal
15. 1 Piston Asm, Floating (IFP) 30. - Shock Oil (2870995)
Preload Ring
10 ft. lbs. (14 Nm)
18 ft. lbs.
Loctite
®
638™ / Primer N™
100 ft. lbs. (136 Nm)
(24 Nm)
Loctite
®
638™ / Primer N™
50 ft. lbs. (68 Nm)
To Next Page
