10.33
ELECTRICAL
10

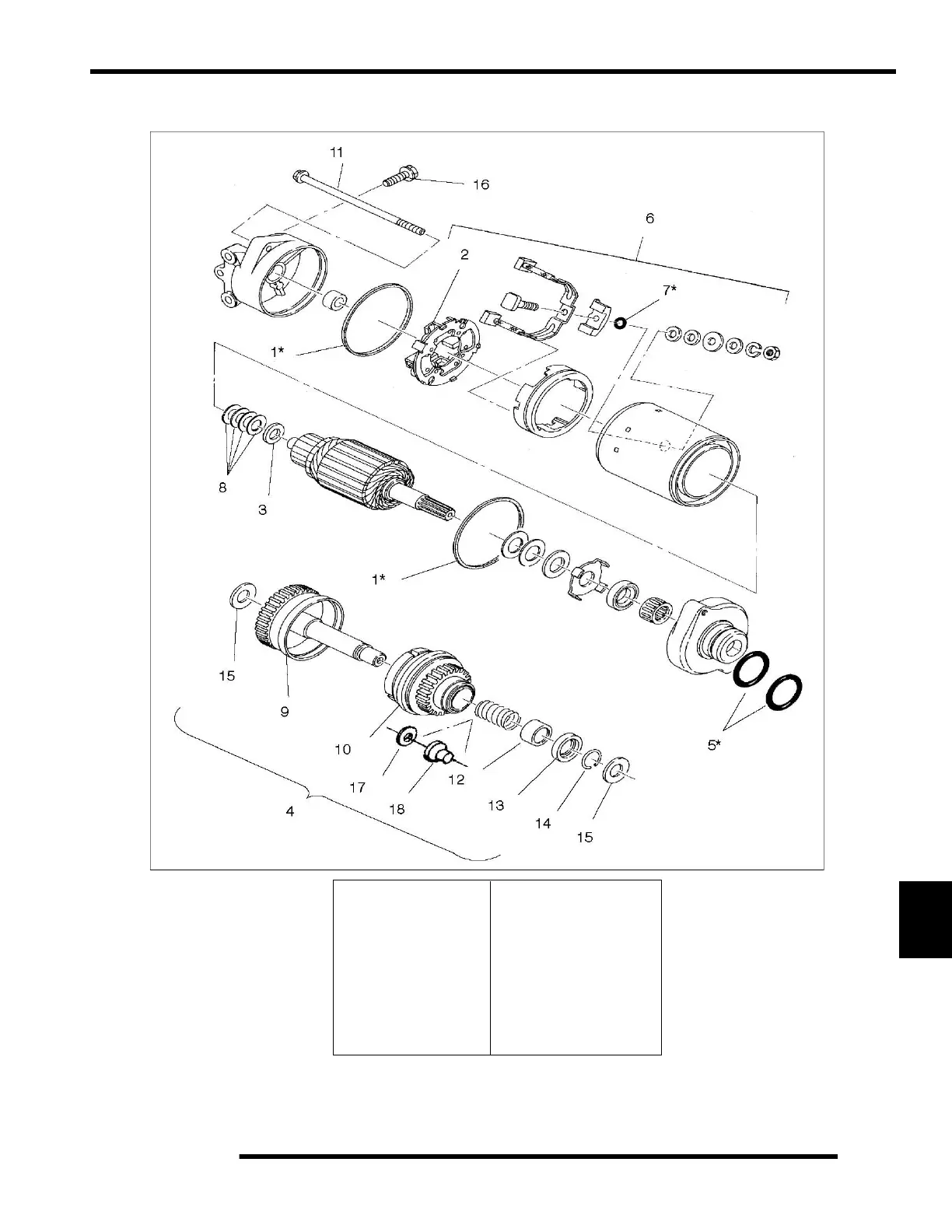

Starter Exploded View
1. Rubber Ring*
2. Brush Spring
3. Thrust Washer
4. Gear Assembly
5. O-Ring*
6. Brush Complete
7. O-Ring*
8. Thrust Washer
9. Shaft Complete
10. Gear Assembly
11. Through Bolt
12. Cover
13. Stopper
14. Snap Ring
15. Washer
16. Flange Bolt
17. Thrust Washer
18. Flange Bushing
* Indicates - Do not reuse.
Replace with new parts.
