CLUTCHING
6
Shift Weights

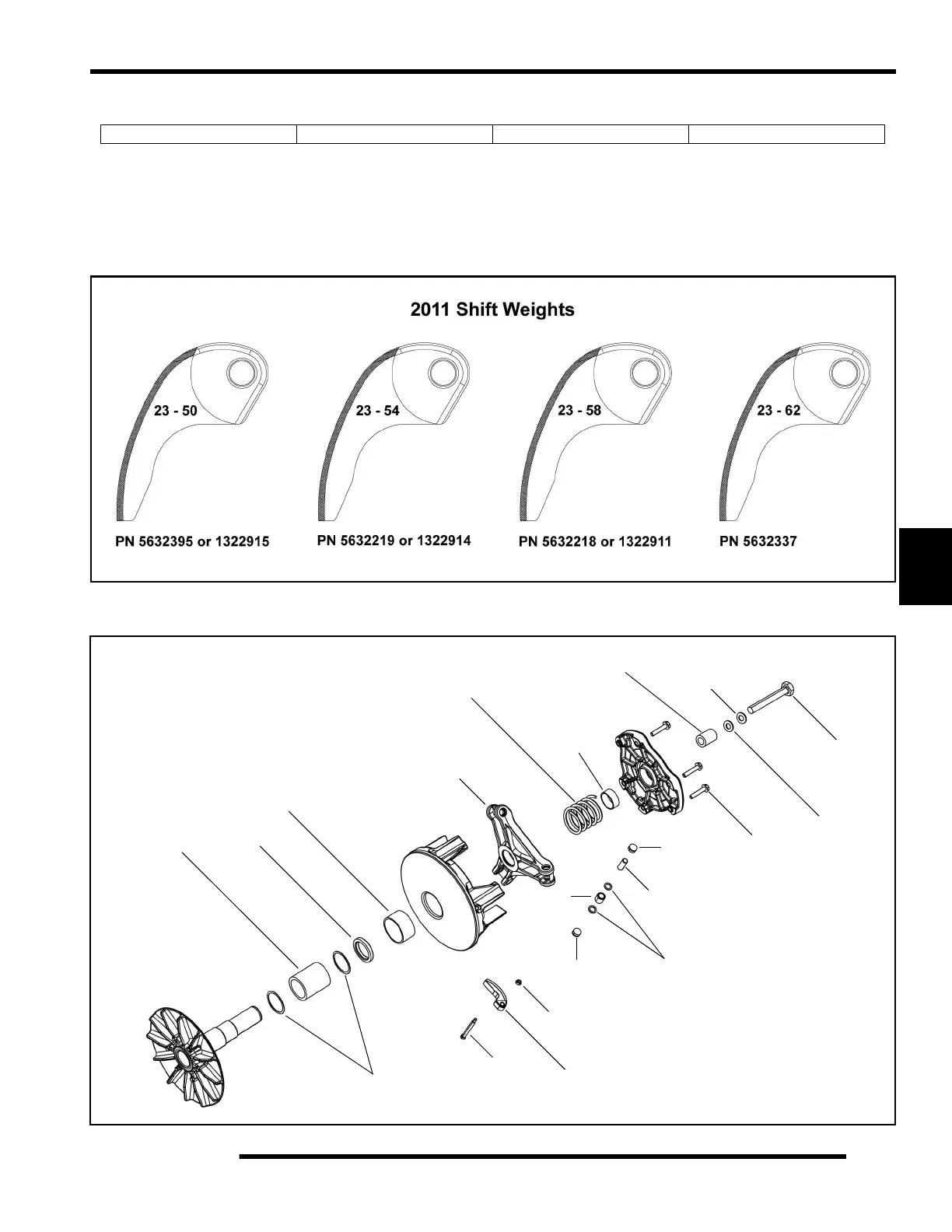

Shown below are the shift weights which have been designed for the PVT system. These shift weights have many factors designed
into them for controlling engagement RPM and shifting patterns. Shift weights should not be changed or altered without first having
a thorough understanding of their positioning and the effects they may have on belt to sheave clearance, clutch balance and shifting
pattern.
Non-Braking Exploded View (All Models)
7043594 Black .177" 2.80"
Primary Clutch Springs
Washers
Bearing
Spring
Cover
Bearing
Bushing
Lock
Washer
Bolt
Flat
Washer
Cover
Screws
Button
Pin
Washers
Roller
Nut
Shift
Weight
Bolt
Spacer
Spider
Button
Non-Braking
Bearing
To Next Page
