FINAL DRIVE
7

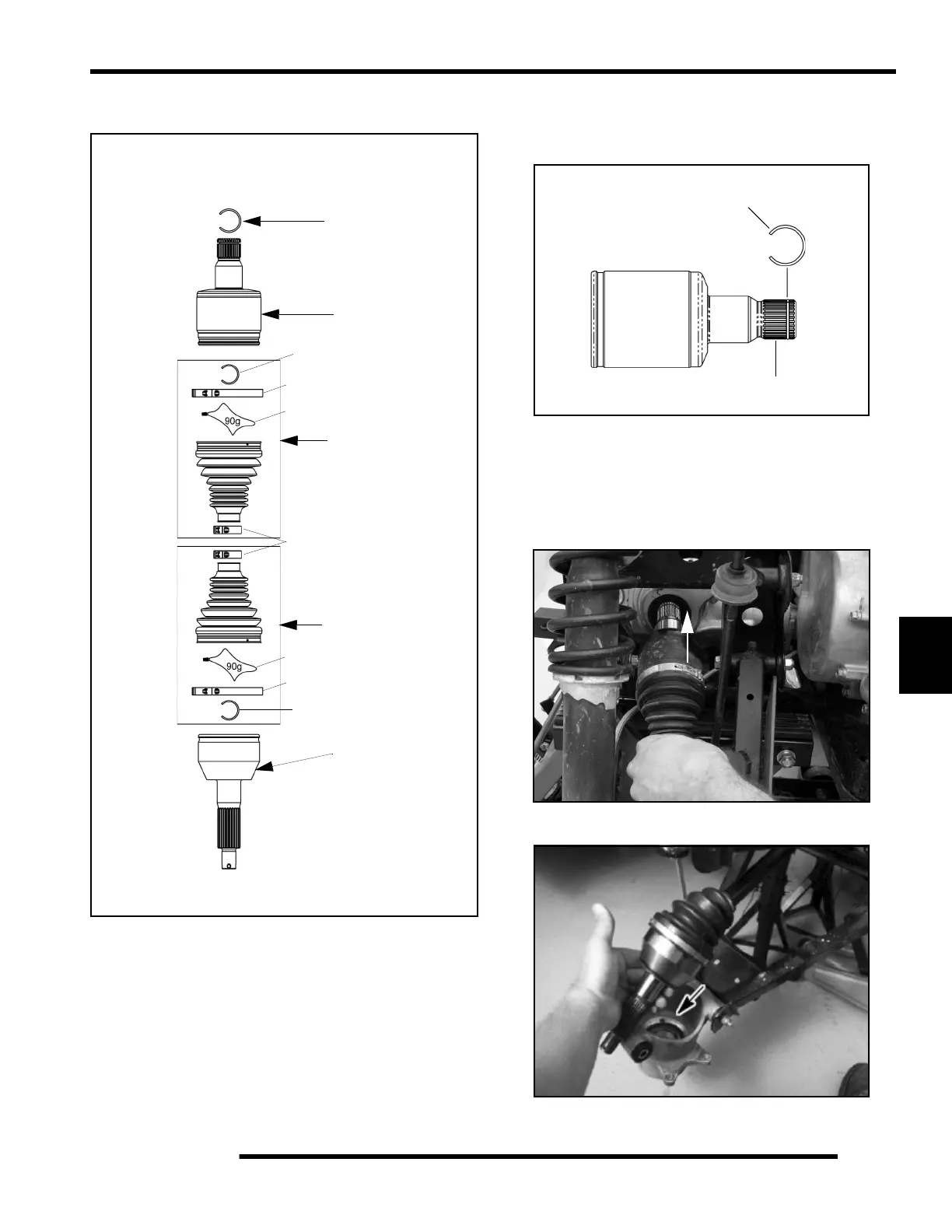

Drive Shaft Exploded View Drive Shaft Installation
1. Install new spring ring on drive shaft. Apply anti-seize
compound to splines.
2. Align splines of drive shaft with rear gearcase and reinstall
the drive shaft. Use a rubber mallet to tap on the outboard
end of the drive shaft if necessary.
NOTE: Take care when installing the drive shaft to
prevent damaging the seal.
3. Slide the rear drive shaft into the rear bearing carrier.
REAR SHAFT
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
Spring Ring
Large Clamp
Grease Pack
Small Clamp
Spring Ring
Large Clamp
Grease Pack
Apply
Anti-Seize
NEW
Spring Ring
To Next Page
