3.17
ENGINE
3
Engine Removal
Because of its design configuration and fastener torque
requirements, Polaris recommends removing the engine,
transmission and rear gearcase as one assembly. Use the
following procedure when engine removal is required.
IMPORTANT: Some engine repair procedures can be
performed without removing the engine assembly
from the vehicle. Refer to “Accessible Engine
Components” on Page 3.15 for further information.
NOTE: The use of an overhead or portable engine
hoist is the only recommended method for removing
and installing the engine / transmission / rear
gearcase assembly.
NOTE: Have an assistant help guide the engine in
and out of the vehicle while using an engine hoist to
prevent personal injury or damage to vehicle
components.
1. If vehicle was recently operated, allow it to cool down
before attempting to perform any work.
2. Clean work area.
3. Thoroughly clean the engine and chassis.
4. Drain appropriate lubricant(s):
• If servicing the engine, drain engine oil.
• If servicing the transmission, drain the lubricant from
the main gearcase and transfer case.
• If servicing the rear gearcase, drain the gearcase
lubricant.
5. Remove the driver’s seat (see Chapter 5).
6. Disconnect (-) negative battery cable.
7. Remove the passenger seat(s) and remove the rear service
panel (see Chapter 5).

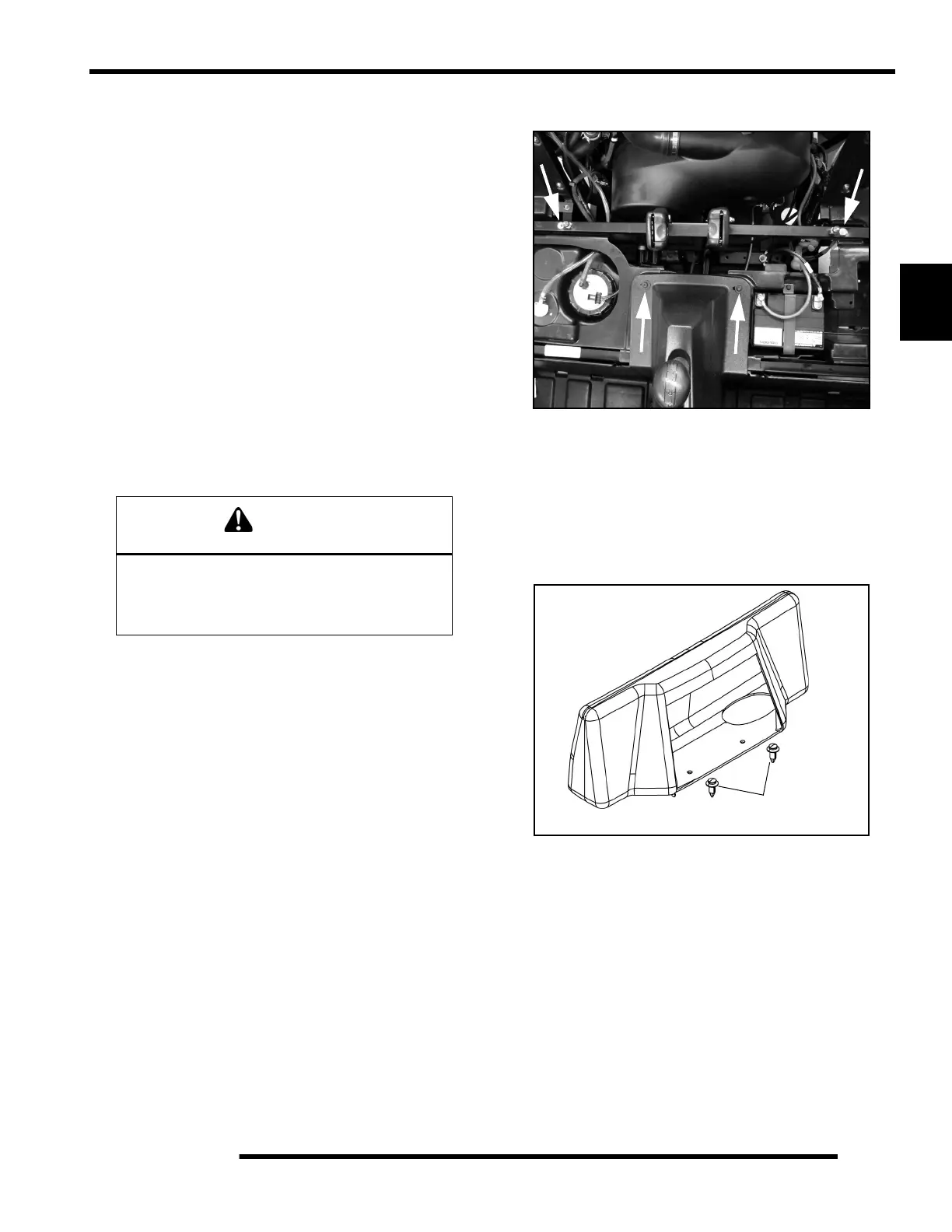

8. Remove the (2) screws from the rear of the center console.
9. Remove the rear seat base assembly from the vehicle by
removing the (2) fasteners from the rear seat base.
10. Remove the rear bumper, rear cargo box and box supports
from the vehicle (see Chapter 5).
11. Remove the (2) push rivets and remove the intake box from
the vehicle.
12. Elevate the rear of the vehicle off the ground using a
suitable ATV lift and remove both rear wheels.
13. Remove all exhaust components from vehicle and engine.
Always wear safety glasses and proper shop
clothing when performing the procedures in this
manual. Failing to do so may lead to possible
injury or death.
