3.13
ENGINE
3

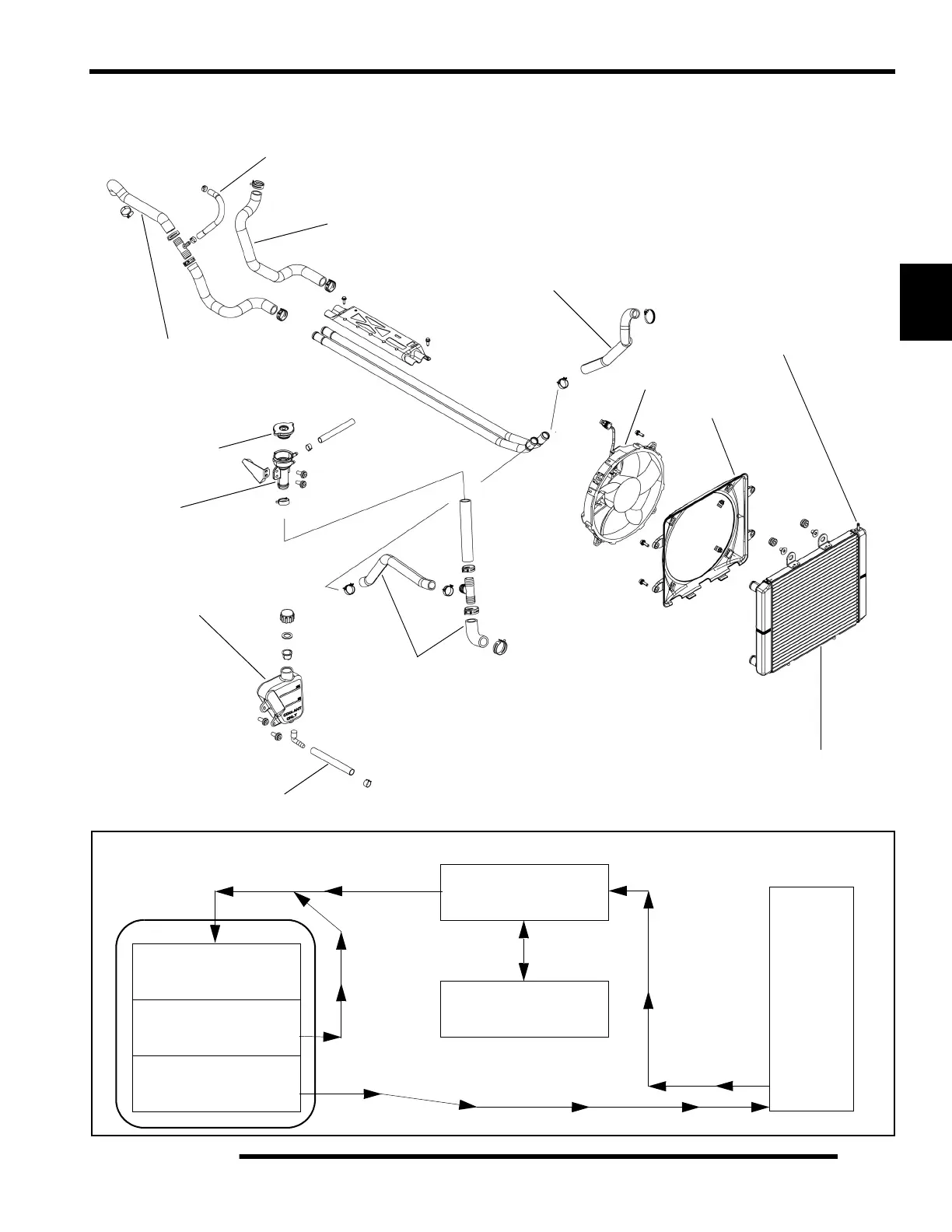

Cooling System Exploded View
Recovery Bottle
Engine Inlet Hose
Engine Outlet Hose
Radiator
Radiator
Shroud
Radiator
Pressure Cap
Fan Motor
(Water Pump Cover)
(Thermostat Housing)
Outlet Hose
Inlet Hose
Filler Neck
To Top Fitting on Filler Neck
To Lower Fitting on Filler Neck
Bypass Hose (To Cylinder Head)
Coolant Flow Diagram
Radiator
Recovery Bottle
Engine
Water Pump
Engine
Thermostat Housing
Filler Neck
Engine Cylinder Head
Bypass
