Polaris Ranger RZR SW User Manual

3.48
ENGINE

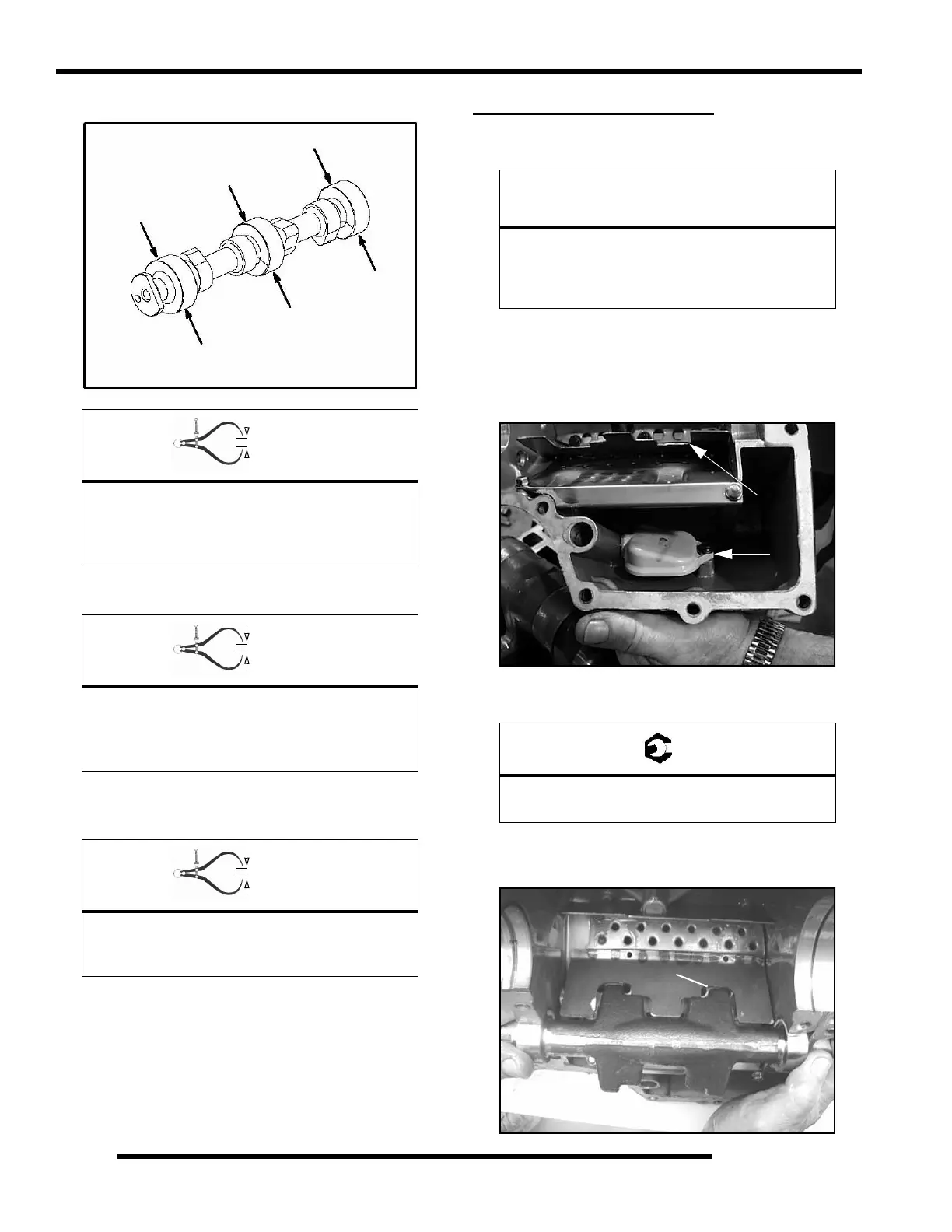

4. Measure camshaft journal outside diameters (O.D.).
5. Measure ID of camshaft journal bores.
6. Calculate oil clearance by subtracting journal O.D.s from
journal bore I.D.s. Compare to specification.
NOTE: Replace camshaft if damaged or if any part is
worn past the service limit.
NOTE: Replace the engine crankcase assembly if
camshaft journal bores are damaged or worn
excessively.
ENGINE REASSEMBLY
Crankcase Reassembly
NOTE: Before assembly, clean the bolts and bolt
holes with Primer N (PN 2874275) to remove any
debris. This will ensure proper sealing when
installing bolts.
1. Install oil pick up (A), if removed. Torque to specification.
2. Install oil baffle weldment (B). Torque bolts to
specification.
3. Install the balance shaft. Inspect balance shaft clearance (C)
in both gearcase halves. Rotate balance shaft to ensure there
is clearance between it and the oil baffle weldment.
= In. / mm.
Camshaft Journal O.D.
A. (MAG) 1.654" ± .00039" (42 ± .010 mm)
B. (CTR) 1.634" ± .00039" (41.50 ± .010 mm)
C. (PTO) 1.614" ± .00039" (41 ± .010 mm)
= In. / mm.
Camshaft Journal Bore I.D.
MAG: 1.656" ± 0.00039" (42.07± 0.010 mm)
CTR: 1.637" ± 0.00039" (41.58 ± 0.010 mm)
PTO: 1.617" ± 0.00039" (41.07 ± 0.010 mm)
= In. / mm.
Calculated Camshaft Oil Clearance:
Std: 0.0027" (.070 mm)
Limit: .0039" (.10 mm)
A
B
C
CAUTION
After any reassembly or rebuild, the engine
must be primed using the Oil Priming Adapter
(PU-45778) and a 3/4-full oil filter before initial
start-up (see “Oil Pump Priming”).
= T
Oil Baffle Weldment & Oil Pick Up Bolt Torque:
60 ± 6 in. lbs. (6.8 ± 0.68 Nm)
B
A
C
