ELECTRICAL

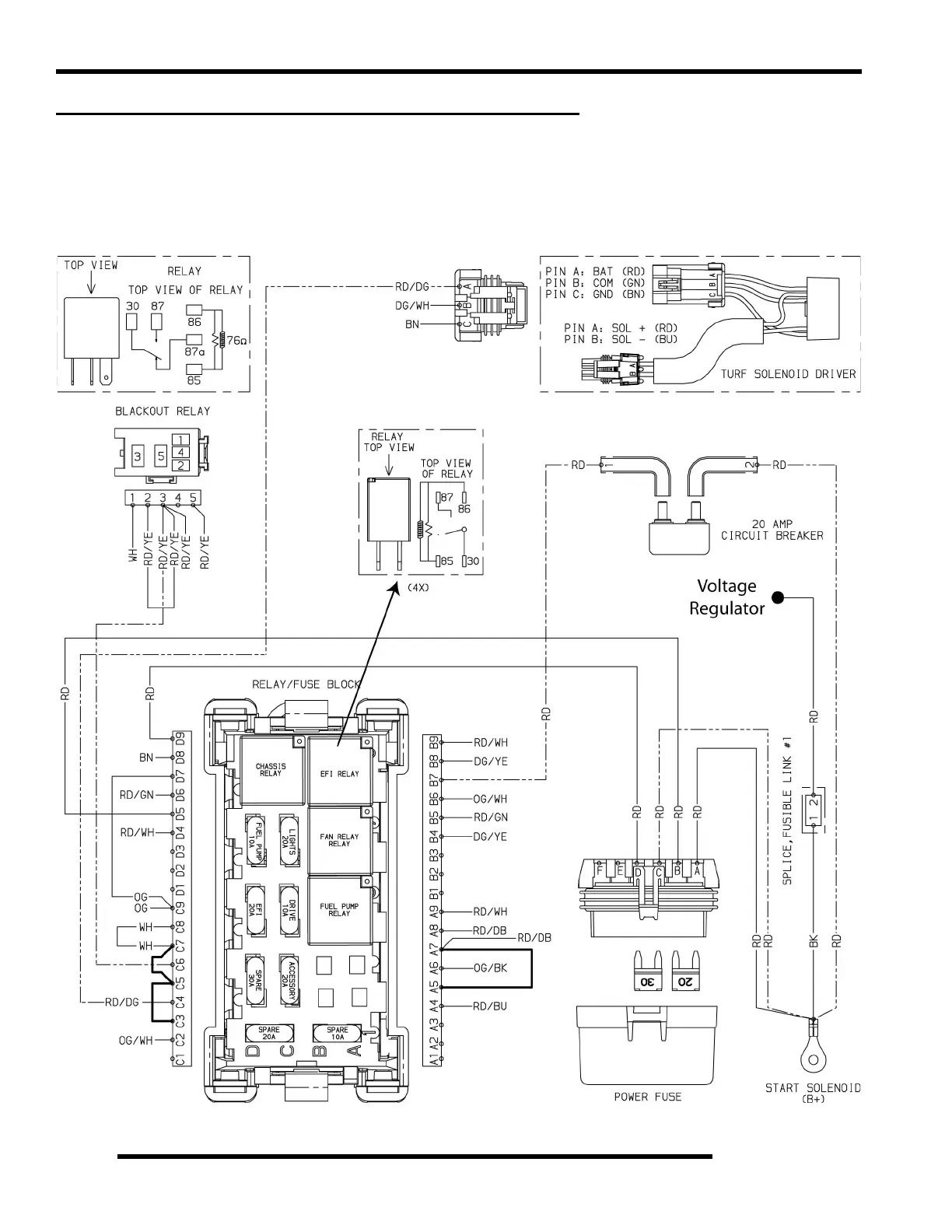

FUSE BOX: FUSES / RELAYS / CIRCUIT BREAKER
Overview / Operation
Located in the fuse box under the dash, the fuses provide overload protection for wiring and components such as the instrument
cluster, ECU, EFI system, chassis power, lights and accessories. The relays assist with component operation like the cooling fan,
fuel pump and EFI system. A separate 20-amp circuit breaker protects the fan motor circuit.
