5.11
BODY / STEERING / SUSPENSION
5

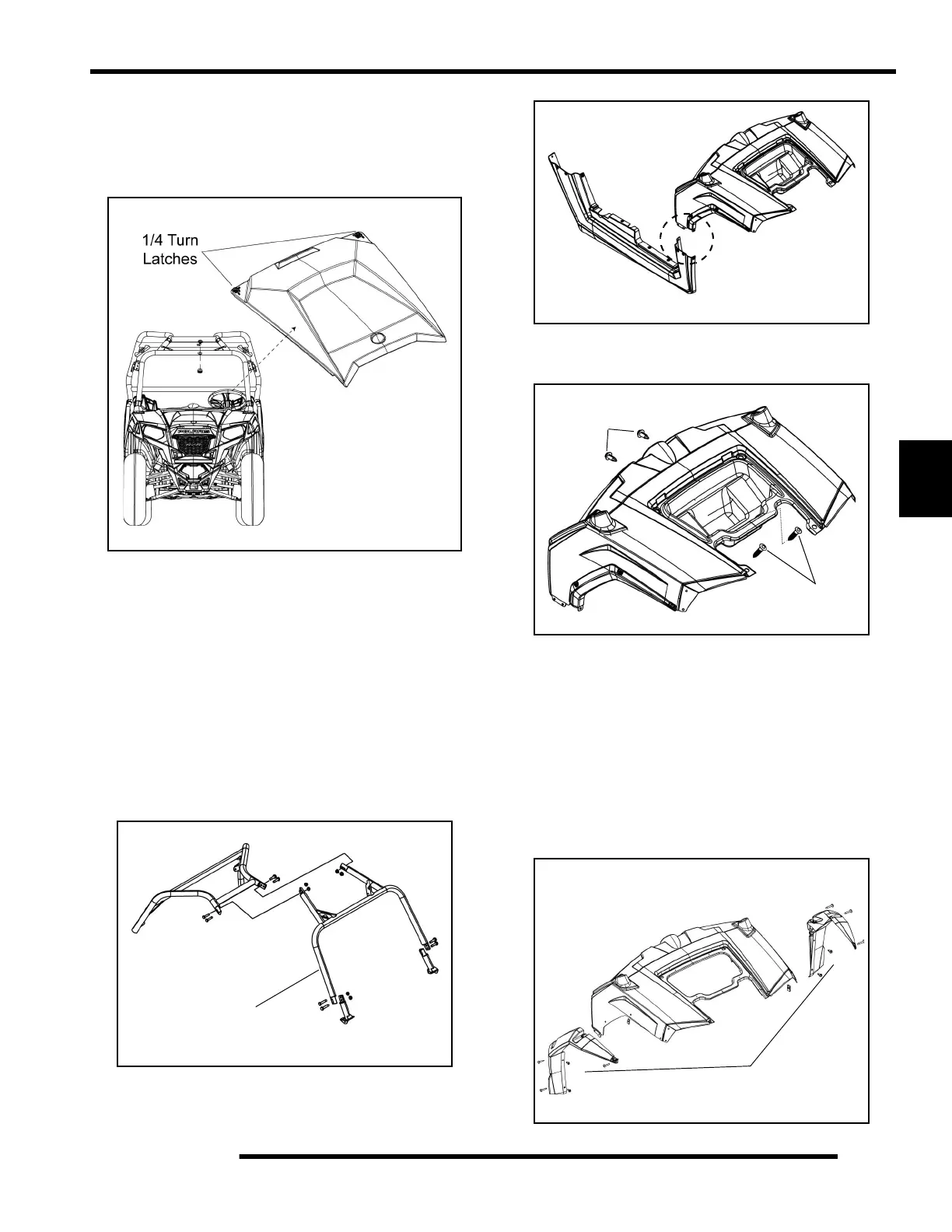

Hood and Front Body Work
Hood Removal
1. To remove the hood, turn both latches to disengage the rear
portion of the hood.
2. Tilt the hood back to disengage the front tabs and remove
the hood from the vehicle.
Front Body / Dash Removal
1. Remove the hood as previously described.
2. Remove the front bumper (see “BODY COMPONENT
REMOVAL - Front Bumper”).
3. Remove the front portion of the cab frame assembly to
allow dash removal. Refer to appropriate “CAB FRAME -
Assembly / Removal” procedure for assembly torque
specifications.
4. Remove the push rivets that attach the dash assembly to the
rocker panels on each side.
5. Remove the (2) Torx screws and (2) push rivets that retain
the front and rear portions of the dash assembly.
6. Disconnect all electrical dash components noting their
location and wire routing.
7. Remove the dash assembly from the vehicle.
Front Fender Flair Removal
1. If dash is installed, remove the (2) push rivets that attach
the lower portion of the fender flair to the rocker panels.
2. Remove the (8) T27 Torx screws and remove fender flairs
from the dash assembly.
Remove Screws
and Push Pins
To Next Page
