BRAKES
9

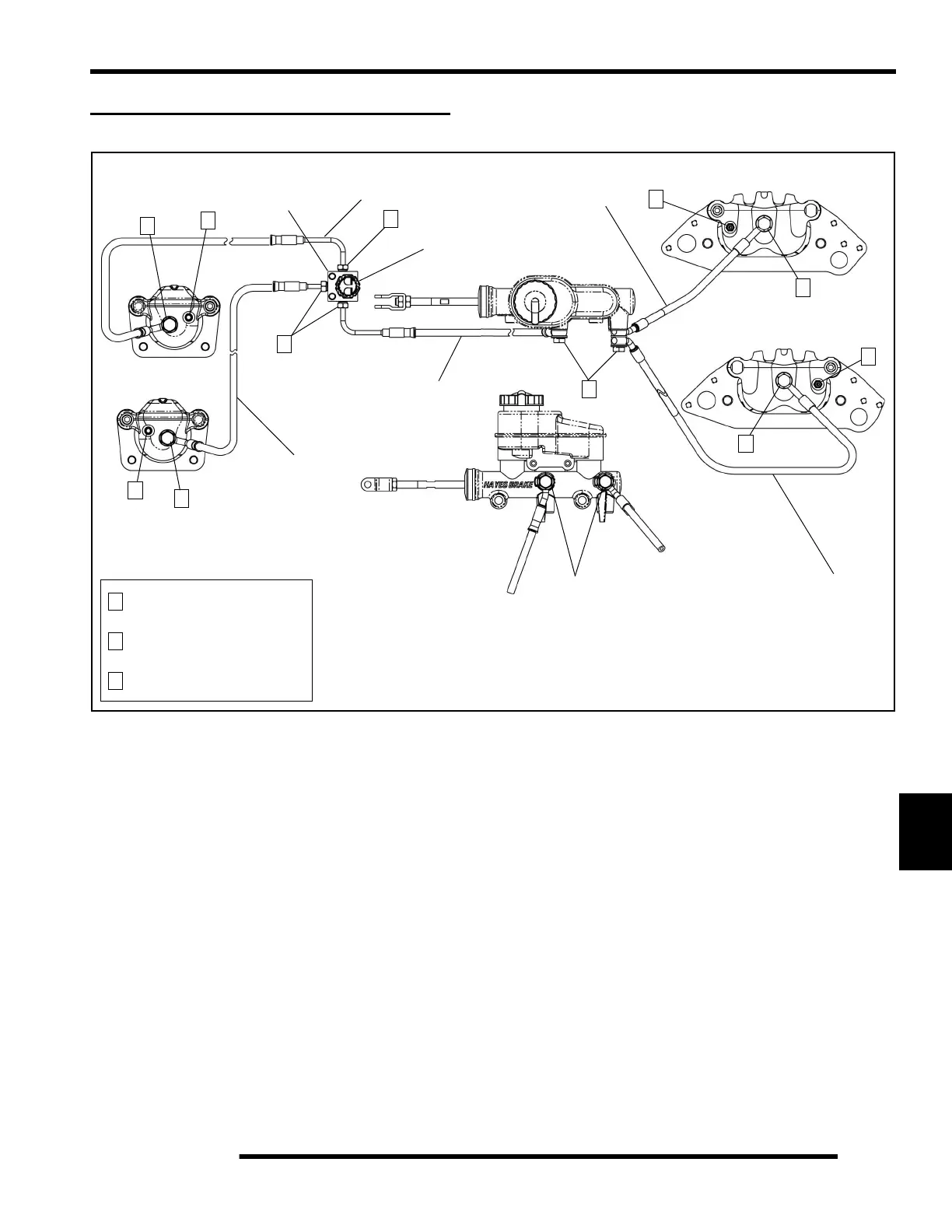

BRAKE SYSTEM EXPLODED VIEW
RZR SW
Caliper Banjo Style Fittings:
15 ft. lbs. (20 Nm).
All Caliper Bleed Screws:
47 in. lbs. (5.3 Nm)
Master Cylinder Side View
Cross
MC Rear
Brake Line
RH Rear Line
RH Front
Brake Line
Front Calipers
Brake
Master Cylinder
LH Front
Rear Calipers
Brake Line
LH Rear Line
1
2
1
1
2
2
1
3
All Flare Style Fittings:
12-15 ft. lbs. (16-20 Nm)
3
1
1
2
2
15 ft. lbs.
(20 Nm)
3
Fitting
Switch
