7.22
FINAL DRIVE
NOTE: Rotate the input shaft while setting the
gearcase housing in place.
16. While holding the gearcase together, flip it over and install
the cover plate screws. Torque screws to 7-11 ft. lbs. (10-
15 Nm).

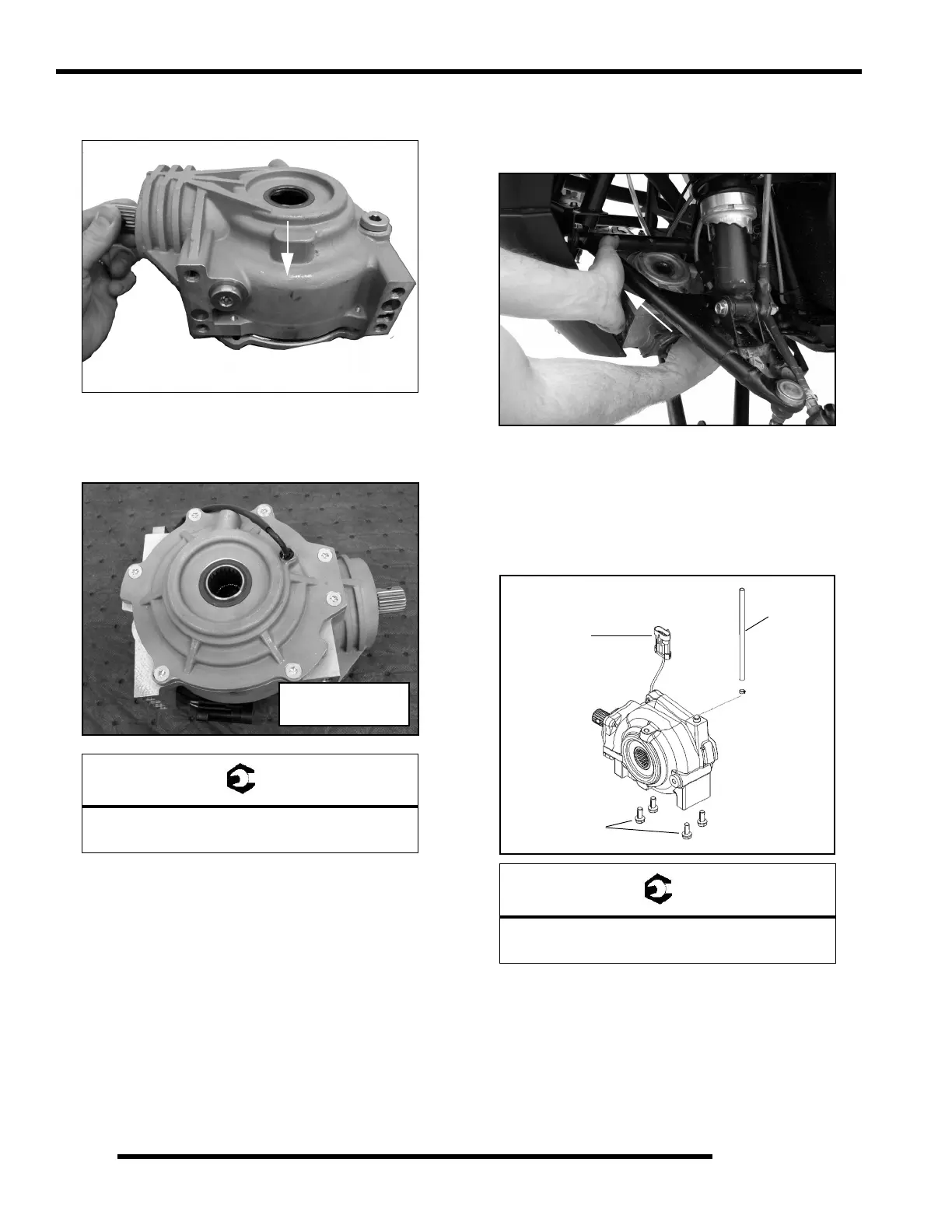

Gearcase Installation
1. Install the gearcase back into the vehicle through the LH
wheel well area, between the upper and lower A-arms.
2. Install the propshaft onto the front gearcase input shaft. Use
a NEW spring pin in the front propshaft.
3. Install the (4) bolts that secure the front gearcase to the
frame and torque to 30 ft. lbs. (41 Nm).
4. Install the vent line.
Cover Plate Screws:
7-11 ft. lbs. (10-15 Nm)
Torque All Cover
Plate Screws
Front Gearcase Mounting Bolts:
30 ft. lbs. (41 Nm)
30 ft. lbs.
Install
Vent Line
Connect
Harness
(41 Nm)
To Next Page
