7.21
FINAL DRIVE
7

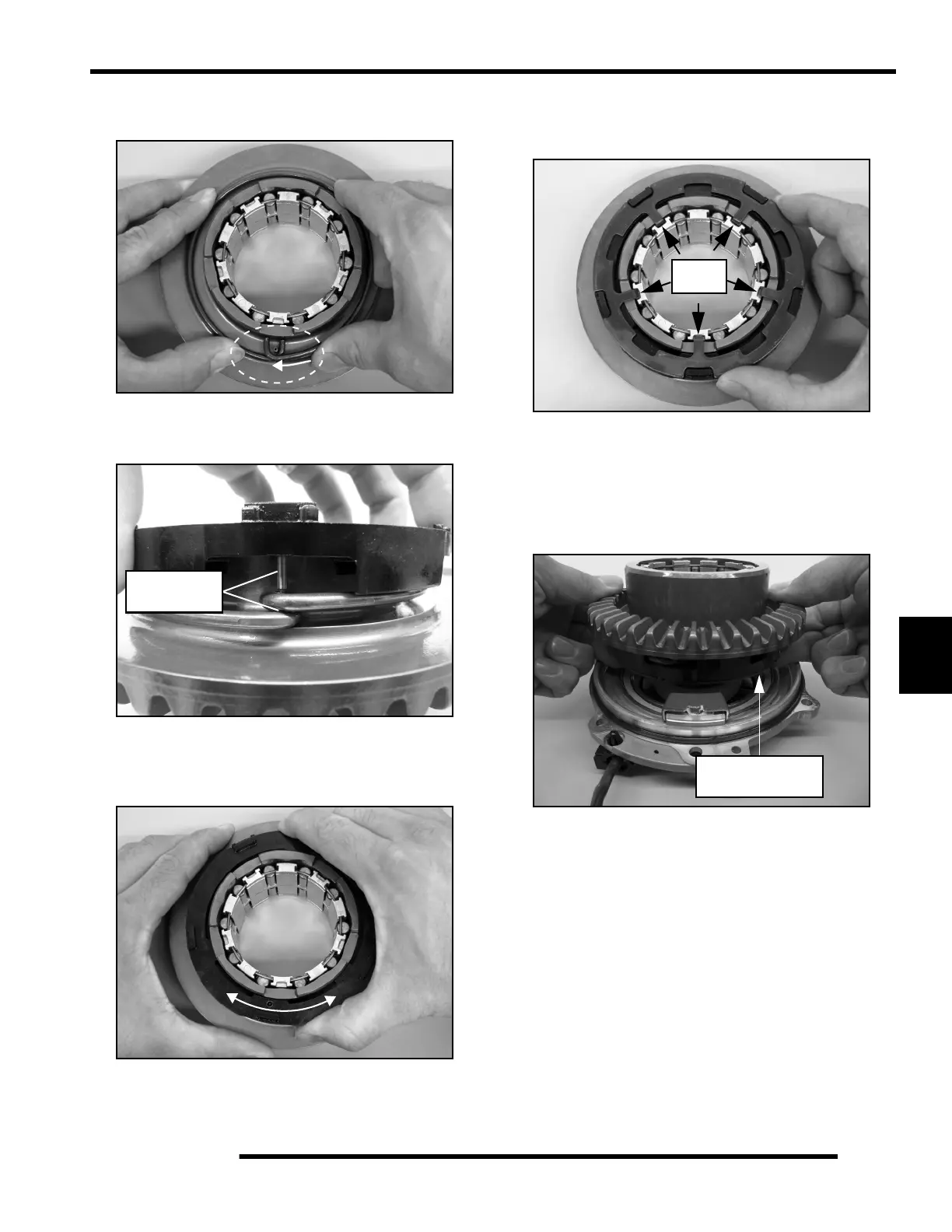

9. Install the torsion spring by wrapping each leg of the spring
around the dowel pin on the ring gear.
10. Align the spring retainer dowel pin with the ring gear dowel
pin and install the retainer on top of the torsion spring.
11. Check the action of the torsion spring by rotating in both
directions to ensure the spring and retainer are installed
properly.
12. Be sure the armature plate tabs are fully engaged into the
roll cage assembly and are resting on the cut-grooves of the
ring gear.
NOTE: Verify armature plate tabs are in the slots on
the roll cage and are resting in the ring gear grooves.
13. While holding the clutch housing and the armature plate in
the roll cage, flip the clutch housing assembly over and set
it on the cover plate.
NOTE: Be sure to hold armature plate in place until
the housing is completely resting on the cover plate.
14. Install the RH output hub into the clutch housing assembly.
15. Line up the gearcase housing with the cover plate assembly.
Set the gearcase housing on top of the assembled cover
plate. Take care not to damage the new seal when installing
the gearcase housing.
Armature Plate
& Torsion Spring
To Next Page
