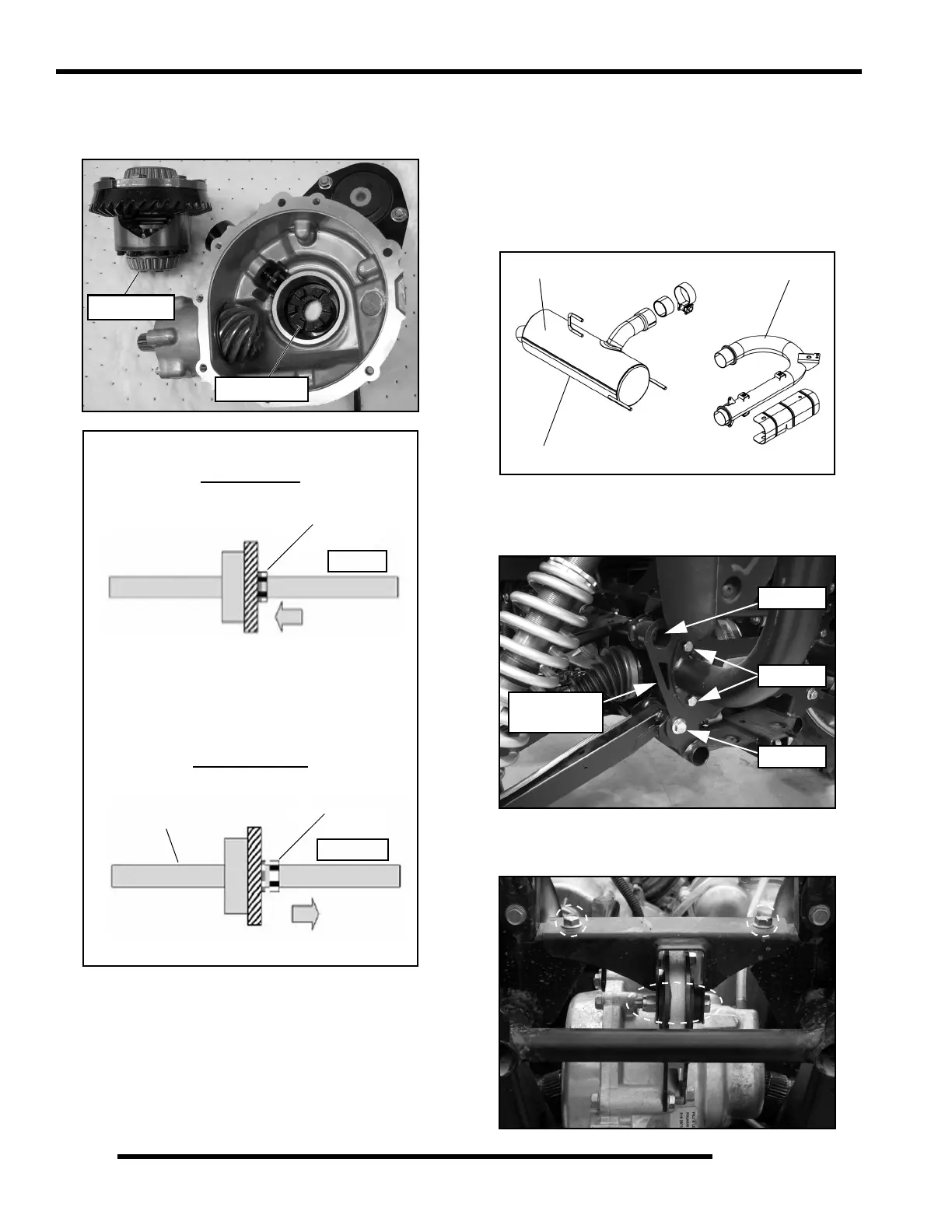

7.36
FINAL DRIVE
When the clutch gear is unlocked the rear drive shafts are
dependent on the differential allowing tighter turns. When it’s
locked it becomes a solid rear axle increasing traction.
Gearcase Removal
1. Drain the fluid from the rear gearcase and remove the rear
drive shafts from each side of the rear gearcase.
See “REAR DRIVE SHAFT” on page 7.28
2. Remove the exhaust pipe and exhaust silencer to allow for
gearcase removal.
3. Remove the (4) bolts retaining the rear rack cab frame to
the rear suspension plate. Remove the upper A-arm bolts,
lower rear A-arm bolts, and plate.
4. Remove the (2) rear gearcase mount bracket fasteners and
mount bolt and remove bracket from vehicle.
Differential
Clutch Gear
IRS Axle
Clutch Gear
Unlocked
Locked Mode
Unlocked Mode
Axle Shaft
Clutch Gear
Locked
Axle Shaft
Axle Shaft
Axle Shaft
Silencer
Remove
Remove
Remove
Remove
Suspension
Plate
Remove
