ELECTRONIC FUEL INJECTION
4

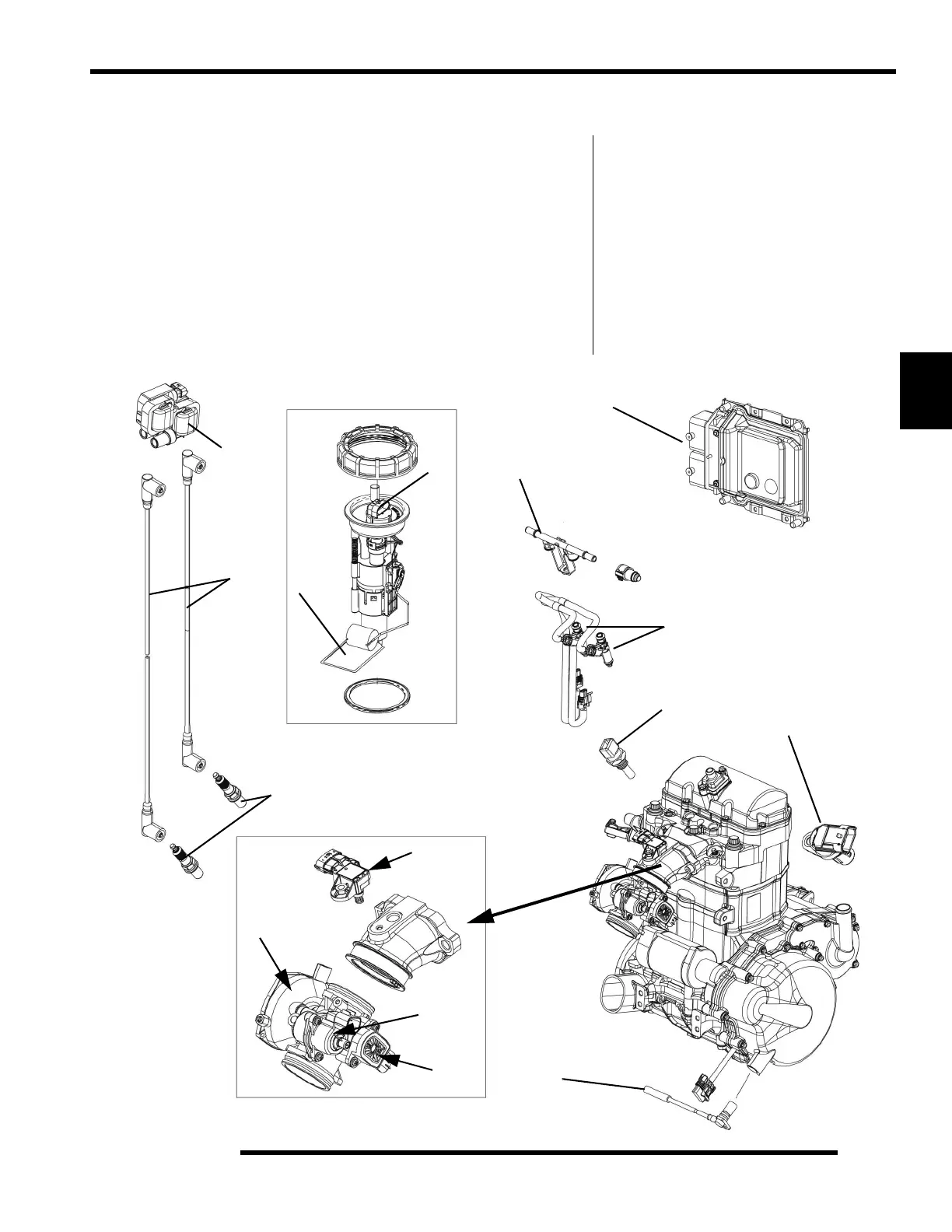

EFI System Exploded View
1. Electronic Control Unit (ECU)
2. Temperature / Manifold Absolute Pressure Sensor (T-MAP)
3. Crankshaft Position Sensor (CPS)
4. Fuel Injectors
5. Fuel Filter
6. Fuel Pump / Regulator / Fuel Level Sender (located in fuel tank)
7. Fuel Rail
8. Engine Coolant Sensor (ECT)
9. Throttle Position Sensor (TPS)
10. Throttle Body
11. Ignition Coil
12. Spark Plugs
1
2
3
4
5
6
7
8
9
10
11
12
13. Spark Plug Wires
14. IAC Motor (Idle Air Control Motor)
14
15. Camshaft Phase Sensor
15
12
13
