3.18
ENGINE

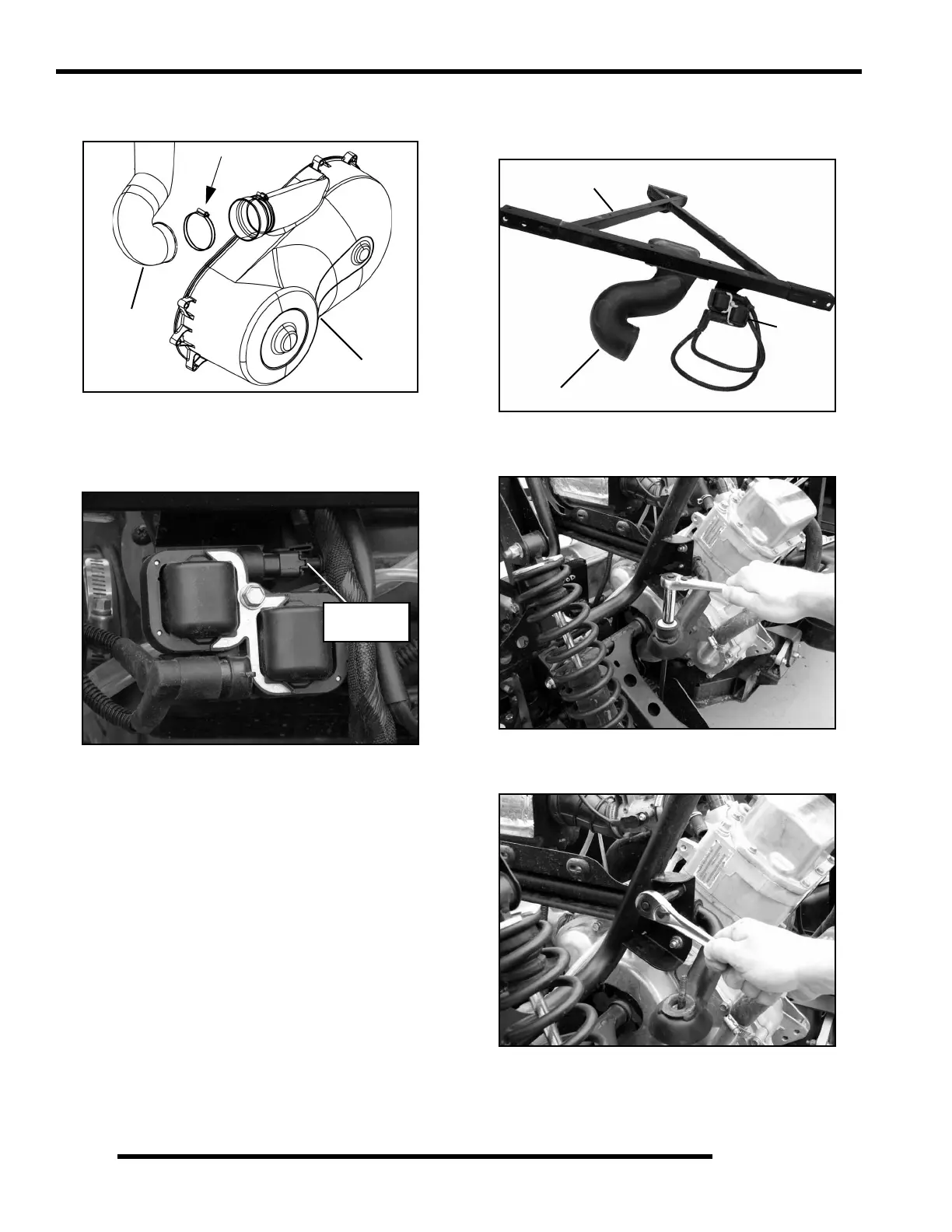

14. Loosen the hose clamp attaching the outlet duct to the PVT
cover. Leave the duct attached to the upper frame support.
15. Remove the (8) screws that retain the PVT cover and
remove cover.
16. Remove the high tension leads from the spark plugs and
disconnect the ignition coil harness.
NOTE: Be sure to mark / note which ignition coil
wire goes to which cylinder and ignition coil post.
The engine will misfire if the spark plug wires are
installed incorrectly. The spark plug wires are
marked PTO and MAG and should be installed to the
corresponding cylinder spark plug and coil post.
17. Remove the vent lines from the upper bolt-in frame brace
and plug vent lines to prevent fluid leakage during removal.
18. Remove the (6) fasteners retaining the upper bolt-in frame
brace and remove it from the vehicle with the ignition coil
and PVT duct attached.
19. Remove the rear stabilizer bar from the linkage on both
sides of the vehicle.
20. Remove the (4) fasteners retaining the stabilizer bar and
bracket and remove the assembly from the vehicle.
21. Remove the engine breather hose from the valve cover.
Ignition
Coil
Frame Support
PVT Duct
To Next Page
