4.7
ELECTRONIC FUEL INJECTION
4

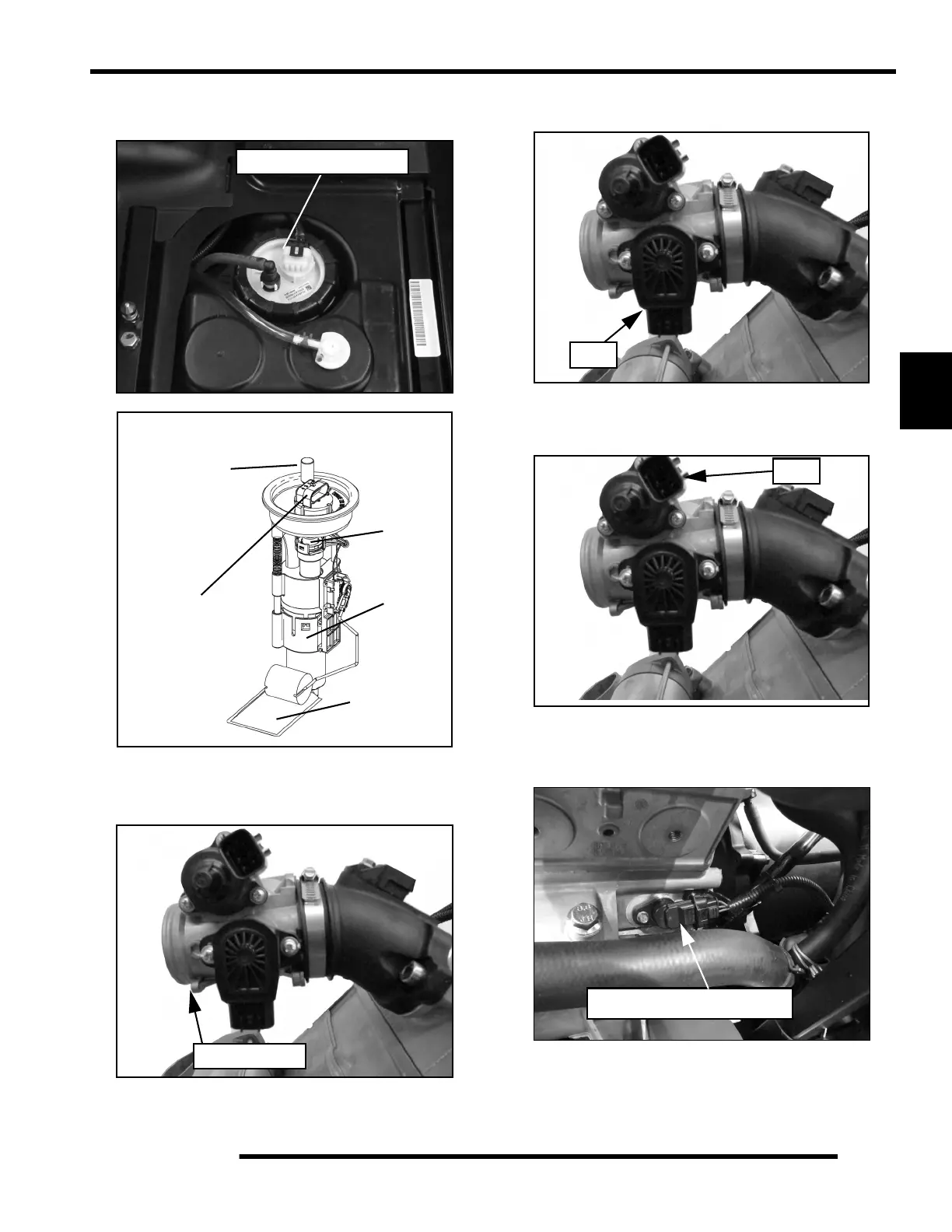

5. Fuel Pump / Regulator / Fuel Gauge Sender Assembly
- Located under the passenger seat.
6. Throttle Body
- Located between the rubber air box boot and the rubber
cylinder head adaptor.
7. Throttle Position Sensor (TPS)
- Located on the right-hand side of the throttle body.
8. Idle Air Control Motor (IAC)
- Located on the right-hand / top side of the throttle body
above the TPS sensor.
9. Camshaft Phase Sensor
- Located in the engine block near the oil filter. The sensor
can be accessed in the right rear wheel well.
Located in Fuel Tank
Fuel Pump
Regulator
Pump / Sending Unit
Preliminary Filter
Fuel Line
Connection
Connection
To Next Page
