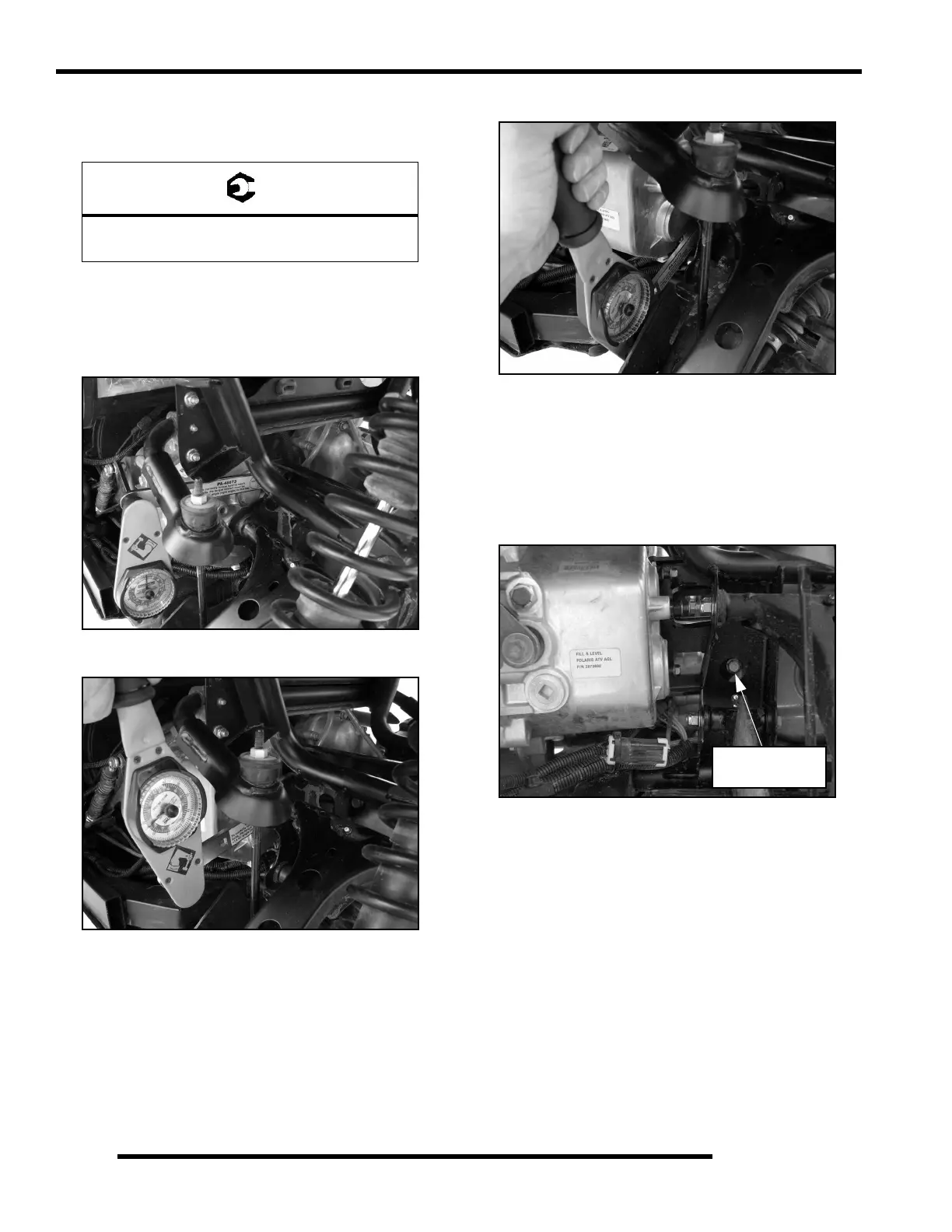

2. Reinstall mounting bracket and hand tighten the (7) bolts.
3. Torque ALL mounting bracket bolts to specification.
4. Using special tool (PA-48873), torque the (3) bolts that
retain the front portion of the mounting bracket to the
transmission.
Upper Transmission Bolt
Middle Transmission Bolt
Bottom Transmission Bolt
5. Remove the special tool and attach an extension to the
torque wrench. Torque the bottom bolt that attaches the
bracket to the rear gearcase through the hole in the frame
support.
Bottom Rear Gearcase Bolt
NOTE: Special Tool is not required for this torque.
6. Using special tool (PA-48873), torque the upper (2) bolts
retaining the mounting bracket to the rear gearcase. Place
the torque wrench through the rear exhaust silencer opening
to gain access to the bolts.
Mount Bracket Bolt Torque:
23-27 ft. lbs. (31-37 Nm)
