4.31
ELECTRONIC FUEL INJECTION
4

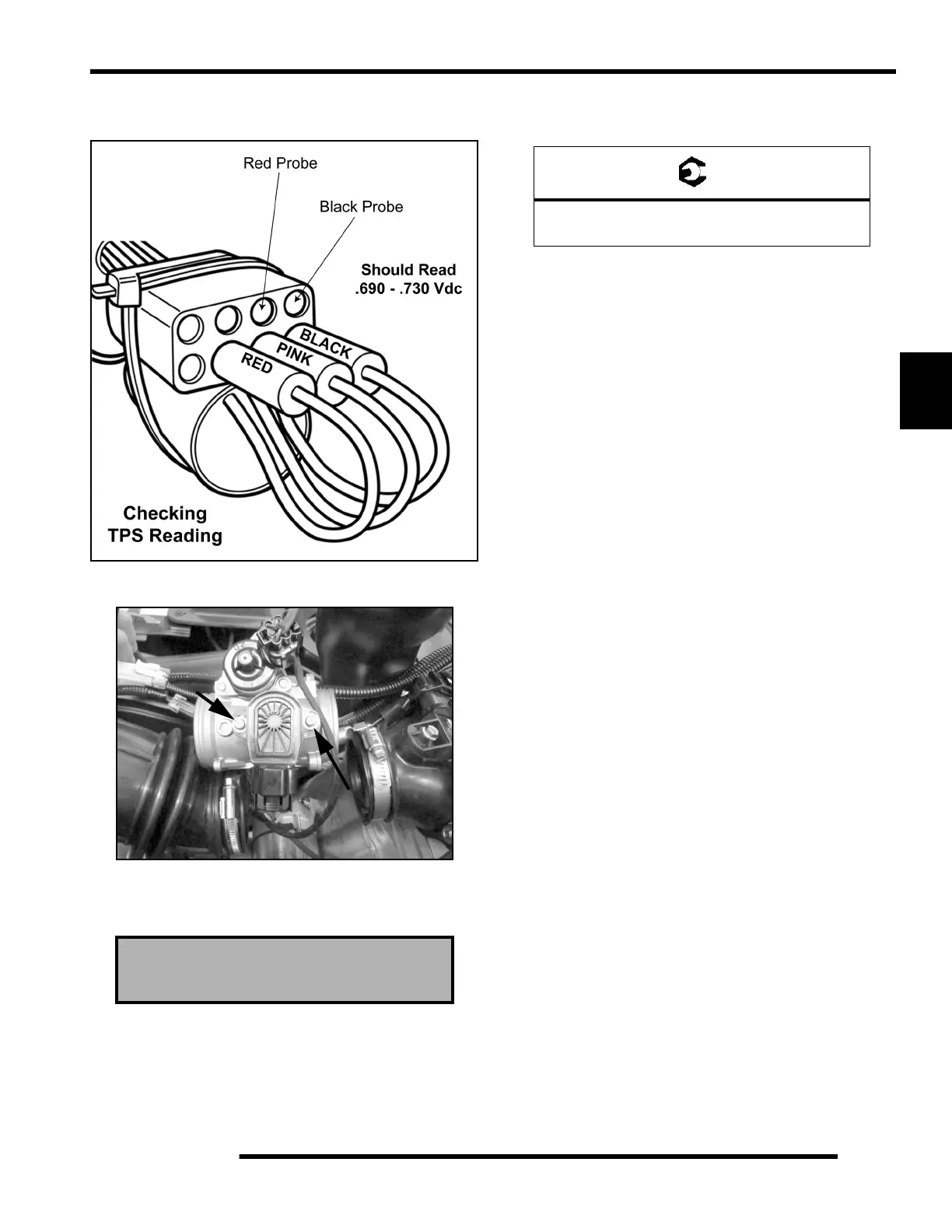

8. Set your voltmeter to read DC Volts. Insert the red and
black voltmeter probes into the test ports as shown.
9. Loosen the TPS mounting screws.
10. Rotate the TPS until your voltmeter reads within the
specification (see Figure 4-28).
11. Retighten the TPS mounting screws and torque to
specification.
12. Verify voltage reading did not change. If voltage reading
is now out of specification, repeat steps 2 - 4.
13. Reconnect vehicle harness to the TPS.
14. Reinstall the throttle body and securely tighten the hose
clamps.
15. Reinstall cargo box, rear main service cover and seats (see
Chapter 5).
TPS Output Reading
.650 - .750 Vdc
TPS Mounting Screws:
17.7 in. lbs. (2 Nm)
