Polaris Ranger RZR SW User Manual

7.10

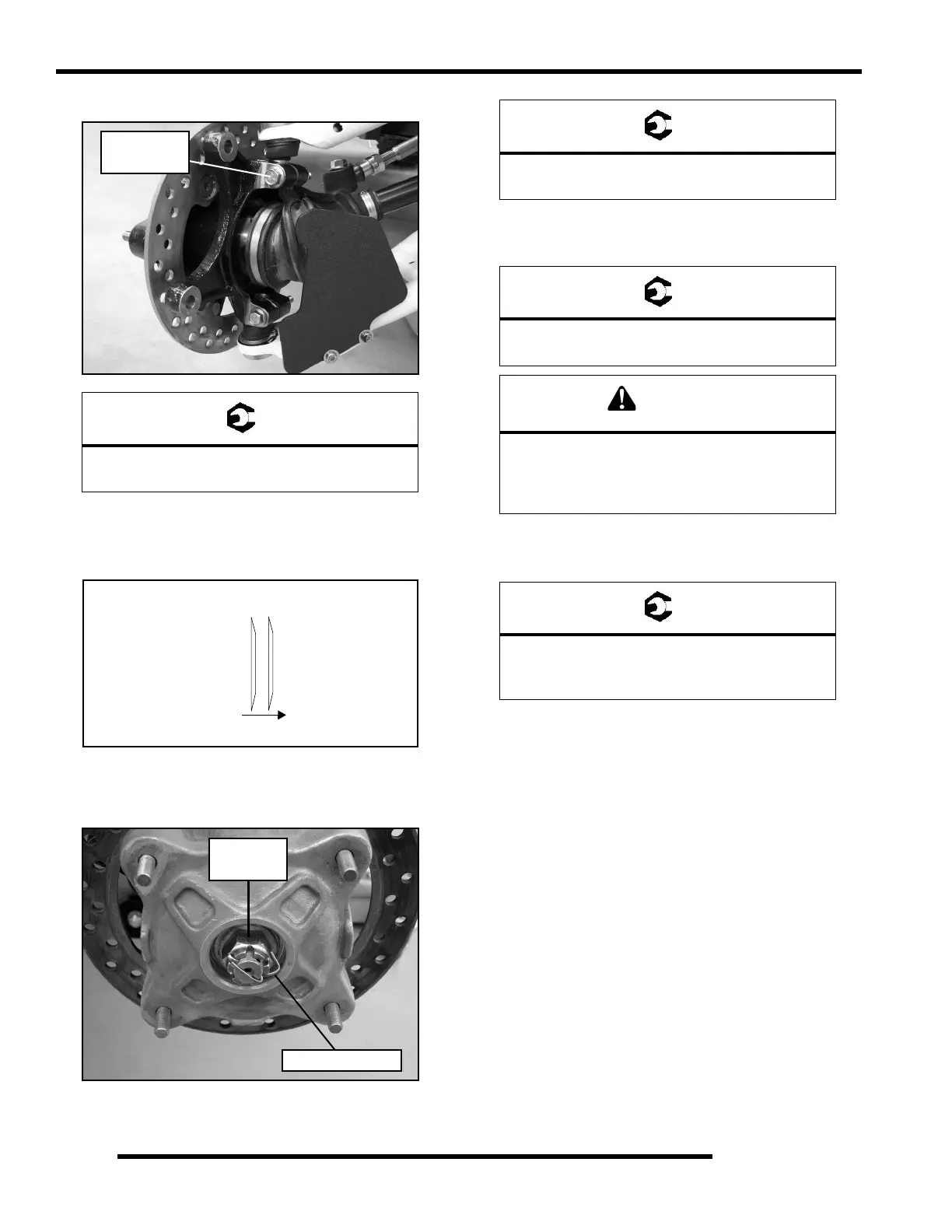

FINAL DRIVE
5. Install the upper pinch bolt and torque to specification.
6. Apply grease to drive shaft axle splines.
7. Install front wheel hub assembly, cone washers, and hand
tighten the castle nut. Install washers with domed side out.
8. Torque wheel hub nut to specification and install a new
cotter pin. Tighten nut slightly if necessary to align cotter
pin holes.
9. Install brake caliper mounting bolts and torque to
specification.
10. Install wheel and (4) wheel nuts. Torque wheel nuts to
specification.
11. Rotate wheel and check for smooth operation. Bend both
ends of cotter pin around end of spindle in different
directions.
= T
Pinch Bolts:
22.5 ft. lbs. (30.5 Nm)
22.5 ft. lbs.
30.5 (Nm)
Out
Cone Washers
Wheel
Hub
80 ft. lbs.
NEW Cotter Pin
(108 Nm)
= T
Wheel Hub Castle Nut:
80 ft. lbs. (108 Nm)
= T
Front Caliper Mounting Bolts:
31-34 ft. lbs. (42-46 Nm)
CAUTION
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
= T
Wheel Nuts:
Steel Wheels: 35 ft. lbs. (47 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
