7.18
FINAL DRIVE

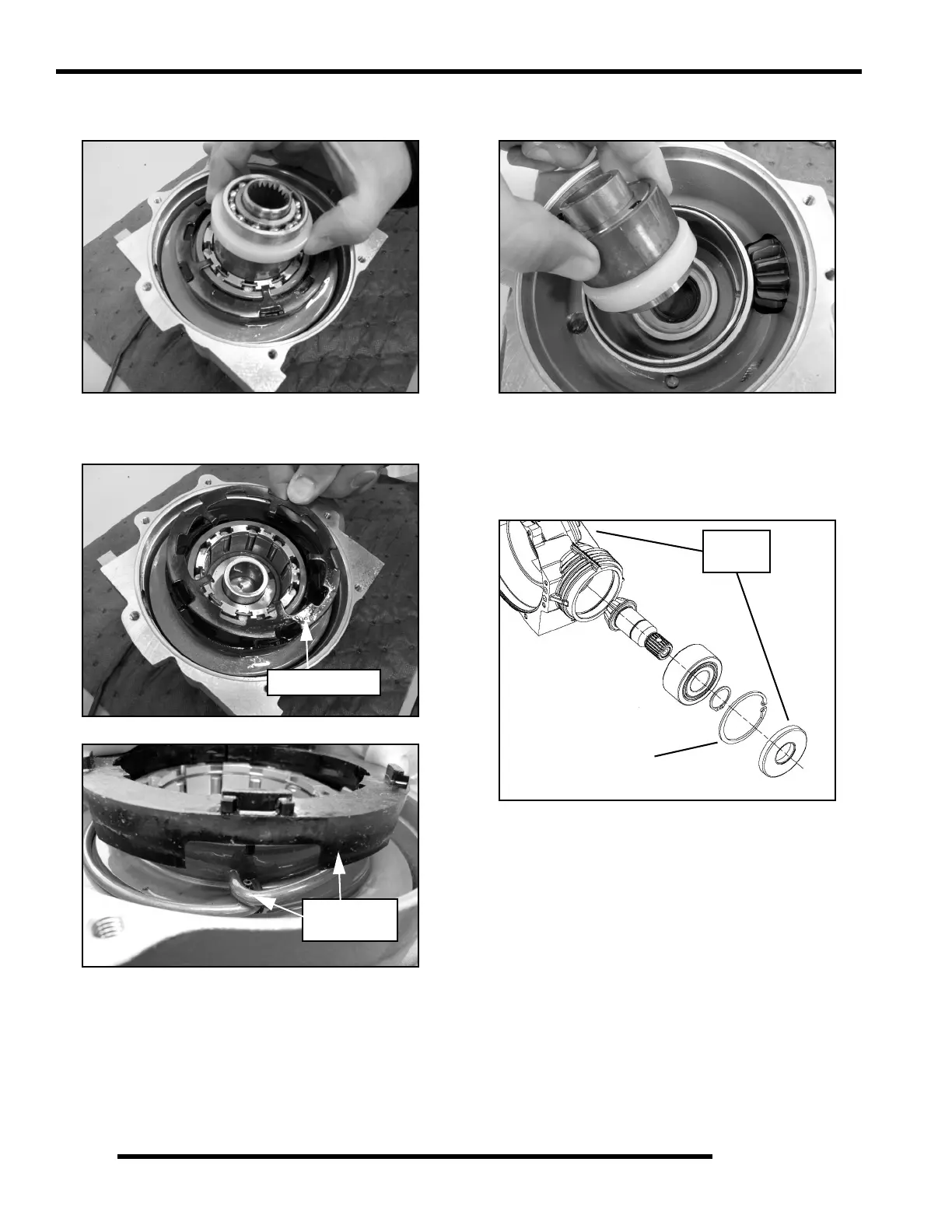

4. Remove the LH output hub assembly from the clutch
housing.
5. Carefully remove the armature plate, torsion spring retainer
and torsion spring from the ring gear.
6. Remove the clutch housing / ring gear from the gearcase
housing.
7. Remove the RH output hub assembly from the gearcase
housing.
8. Remove pinion seal. The pinion seal must be replaced every
time it is removed. Take out the internal snap ring. Remove
pinion / bearing assembly from the gearcase housing by
pulling and rocking the pinion shaft strait out. Inspect and
clean the gearcase housing and replace ALL oil seals.
9. Clean and inspect all parts. Check for excessive wear or
damage.
Replace
Seals
Internal Snap Ring
To Next Page
