7.26
FINAL DRIVE

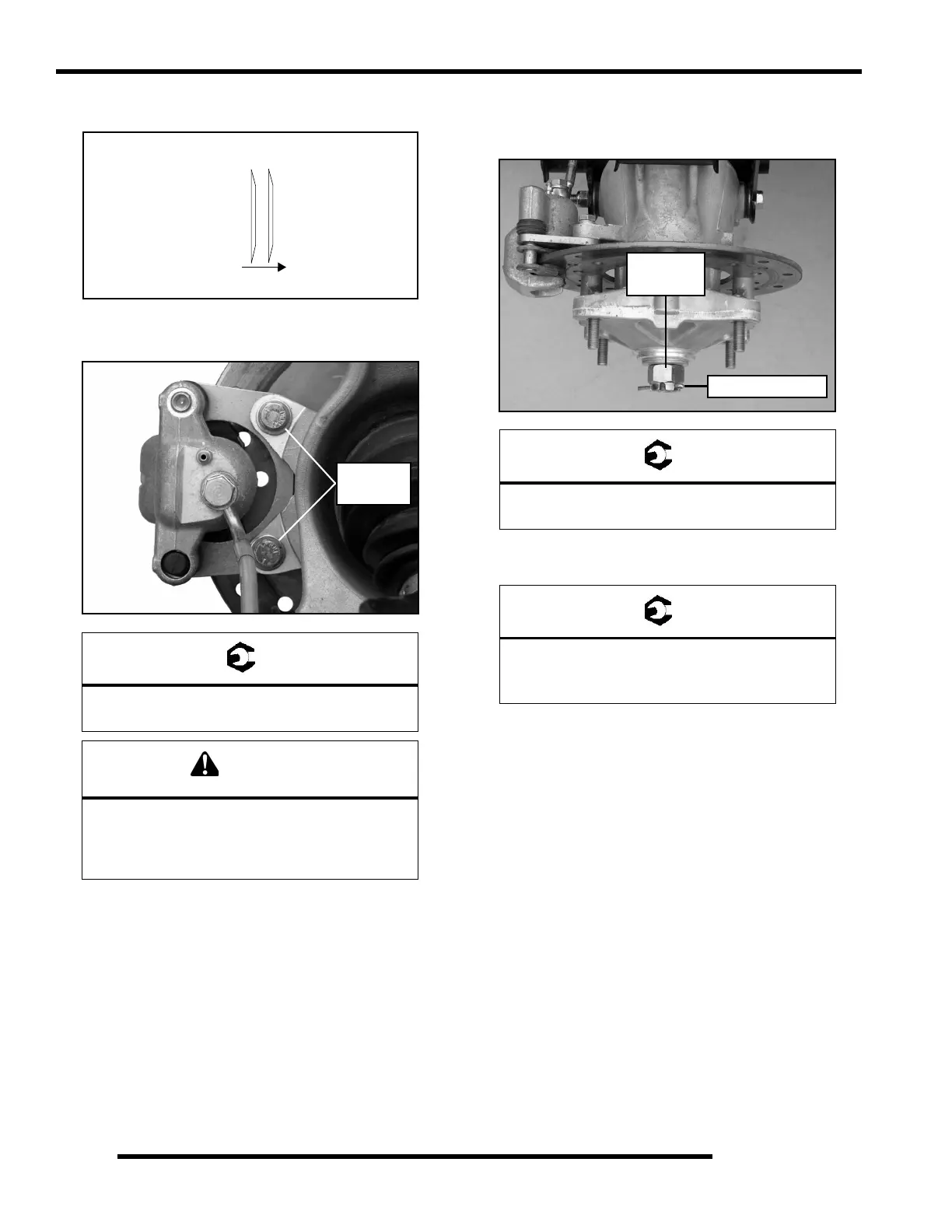

4. Install rear wheel hub assembly, cone washers, and hand
tighten the castle nut. Install washers with domed side out.
5. Install brake caliper mounting bolts and torque to 18 ft. lbs.
(24 Nm).
6. Torque wheel hub nut to 80 ft. lbs. (108 Nm) and install a
NEW cotter pin. Tighten nut slightly if necessary to align
cotter pin holes.
7. Install wheel and (4) wheel nuts. Torque wheel nuts to
specification.
8. Rotate wheel and check for smooth operation. Bend both
ends of cotter pin around end of spindle in different
directions.
Rear Caliper Mounting Bolts:
18 ft. lbs. (24 Nm)
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
Wheel Hub Castle Nut:
80 ft. lbs. (108 Nm)
Wheel Nuts:
Steel Wheels: 35 ft. lbs. (47 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
80 ft. lbs.
(108 Nm)
NEW Cotter Pin
