8.14
TRANSMISSION

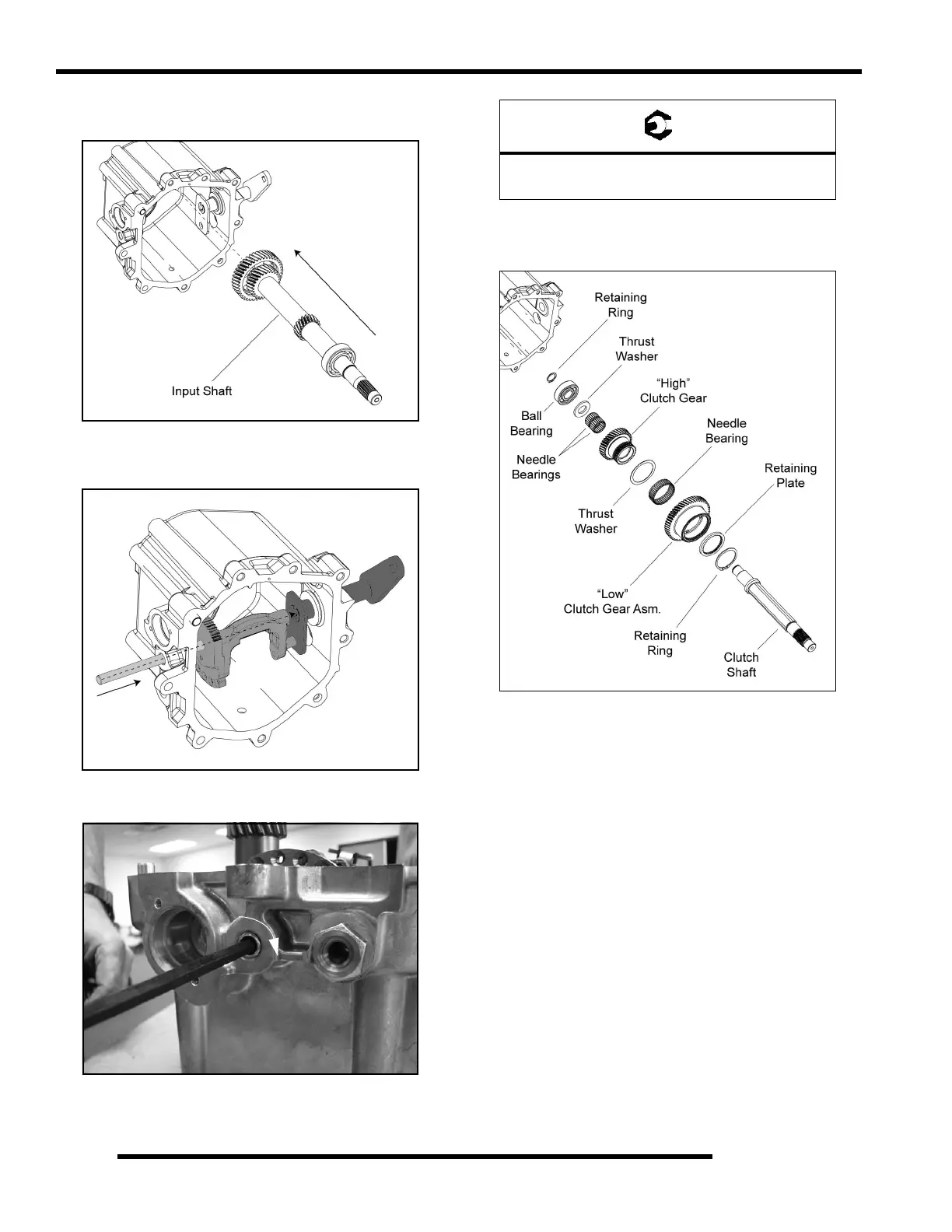

4. Install the input shaft assembly into the transmission
housing.
5. Install the clutch yoke into the shifter assembly. Align the
holes and install clutch yoke pivot pin.
6. Install the pivot pin set screw and torque to specification.
7. Assemble the clutch shaft with new needle bearings. Press
a new ball bearing onto the end of the shaft and install a new
retaining ring.
8. Install the clutch shaft into the transmission housing.
9. Install the sliding shoes onto the clutch yoke.
Pivot
Pin
Shifter
Assembly
Clutch
Yoke
Pivot Pin Set Screw:
100-125 in. lbs. (11-14 Nm)
