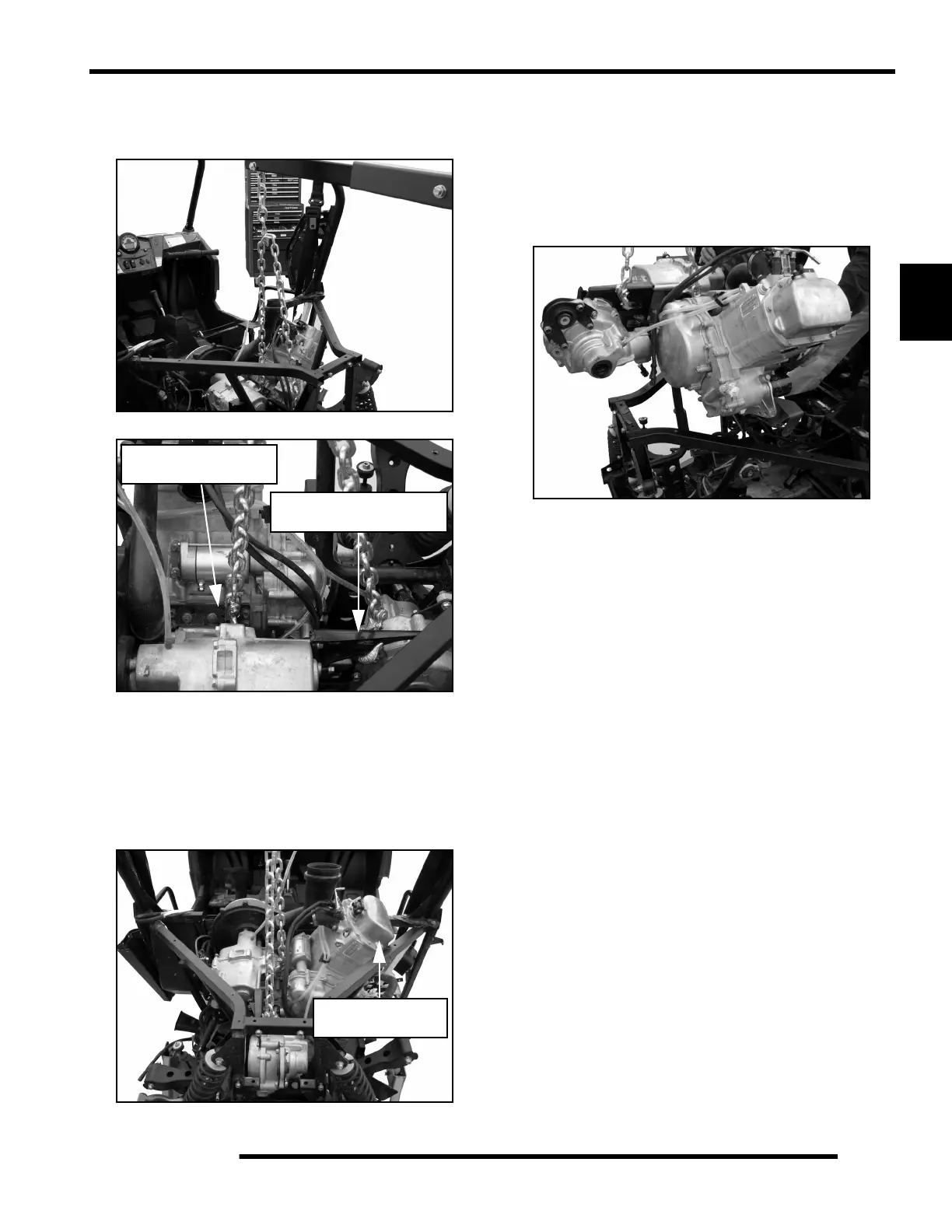

48. Using an engine hoist, hook a chain between the engine /
transmission mounting plate and the transmission / rear
gearcase mounting plate.
NOTE: Have an assistant help guide the engine in
and out of the vehicle while using an engine hoist to
prevent personal injury or damage to vehicle
components.
49. Lift the front portion of the assembly out first to allow the
engine valve cover to clear the vehicle frame.
50. Remove propshaft from the transmission output shaft.
51. Then move assembly towards the front of the vehicle while
lifting it out to allow the rear gearcase to clear the rear
portion of the frame.
52. Then lift assembly high enough to clear vehicle frame and
completely remove it from the vehicle to a work bench.
Transmission/Gearcase
Mount Plate
Engine/Transmission
Mount Plate
Allow valve cover
to clear frame
