3.45
ENGINE
3

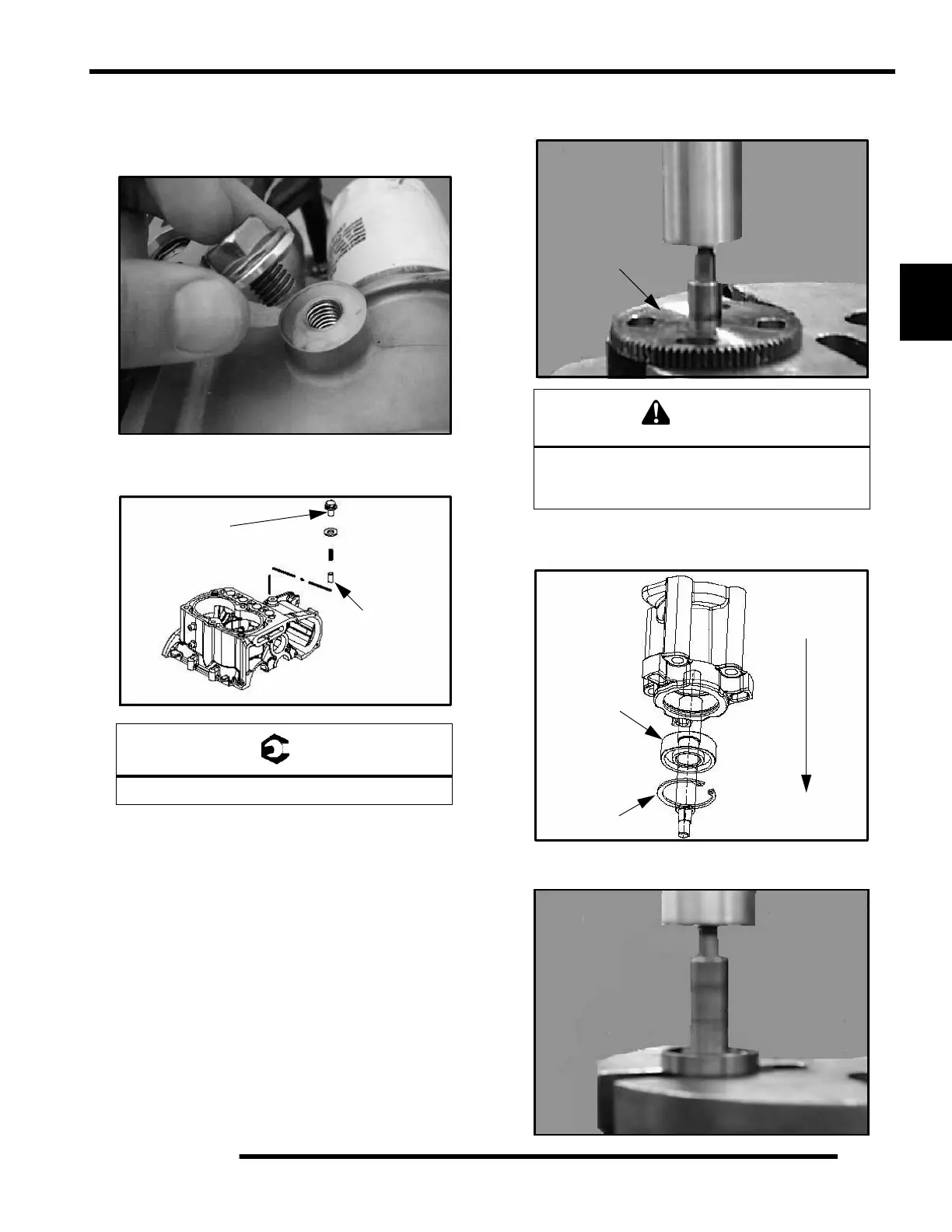

29. Remove the oil pressure relief. The oil pressure relief
consists of a bolt, washer, spring, and valve (dowel).
Inspect the valve (dowel) for signs of possible obstructions.
Use compressed air to blow out any debris.
30. Reinstall the valve (dowel chamfered end first). Install the
spring, washer, and bolt. Torque to specification .
NOTE: Be sure to place the tapered end of the valve
(dowel) in first. If the valve is installed incorrectly, oil
pressure and oil priming problems will occur.
31. Carefully press the gear off the assembly while supporting
the housing assembly.
32. Remove the snap ring from the assembly. Place the housing
in a support and press out the bearing/shaft assembly.
33. Place the shaft in a press to remove the bearing.
22 2 ft. lbs. (30 3 Nm)
22 ± 2 ft. lbs.
(30 ± 3 Nm).
Chamfer
End First
Wear appropriate safety gear during this
procedure. Protective gloves, clothing and eye
wear are required.
Press out shaft
and bearing
assembly.
Bearing
Retaining Ring
