Table 2-3 LED Status Indicators
Reference Number LED LED Description
1 Power indicator The color and pattern of the power
indicator shows the following states:
LED off: No power
Solid green: Powered on and working
Flashing green: Searching for a DHCP
IP address
Flashing orange: Upgrading (Do not
unplug power.)
Solid red: Not operational
2 LAN Ethernet port indicator Blinking green: Data activity on the LAN
Ethernet port
3 Phone port indicator The color and pattern of the phone port
indicator shows the following states:
LED off: Port not enabled
Solid green: Phone ready (standby)
Flashing green: Phone in use
Poly ATA 402 LED Status Indicators
There are five LEDs on the front of the Poly ATA 402 device.
The LEDs give you a visual indication of the working order and general status of key functional
aspects of the device. Under normal operating conditions, the LEDs show green (solid, flashing, or
blinking) signals.
The following figure displays the LEDs on the front of the Poly ATA 402. The table lists each LED
numbered in the figure.

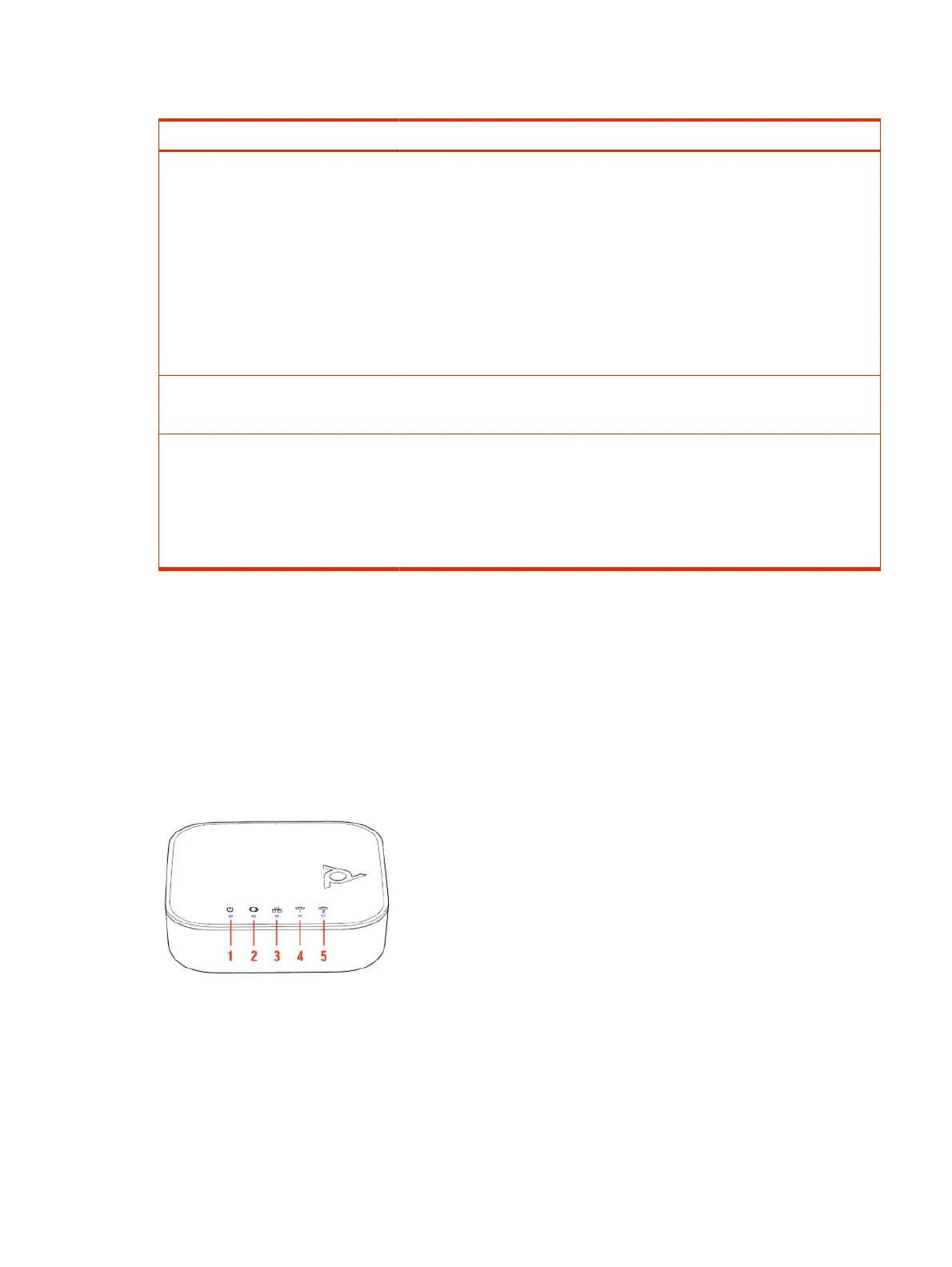

Figure 2-2 Poly ATA 402 LEDs
Poly ATA 402 LED Status Indicators
5
