Hammer Spring Assembly
187

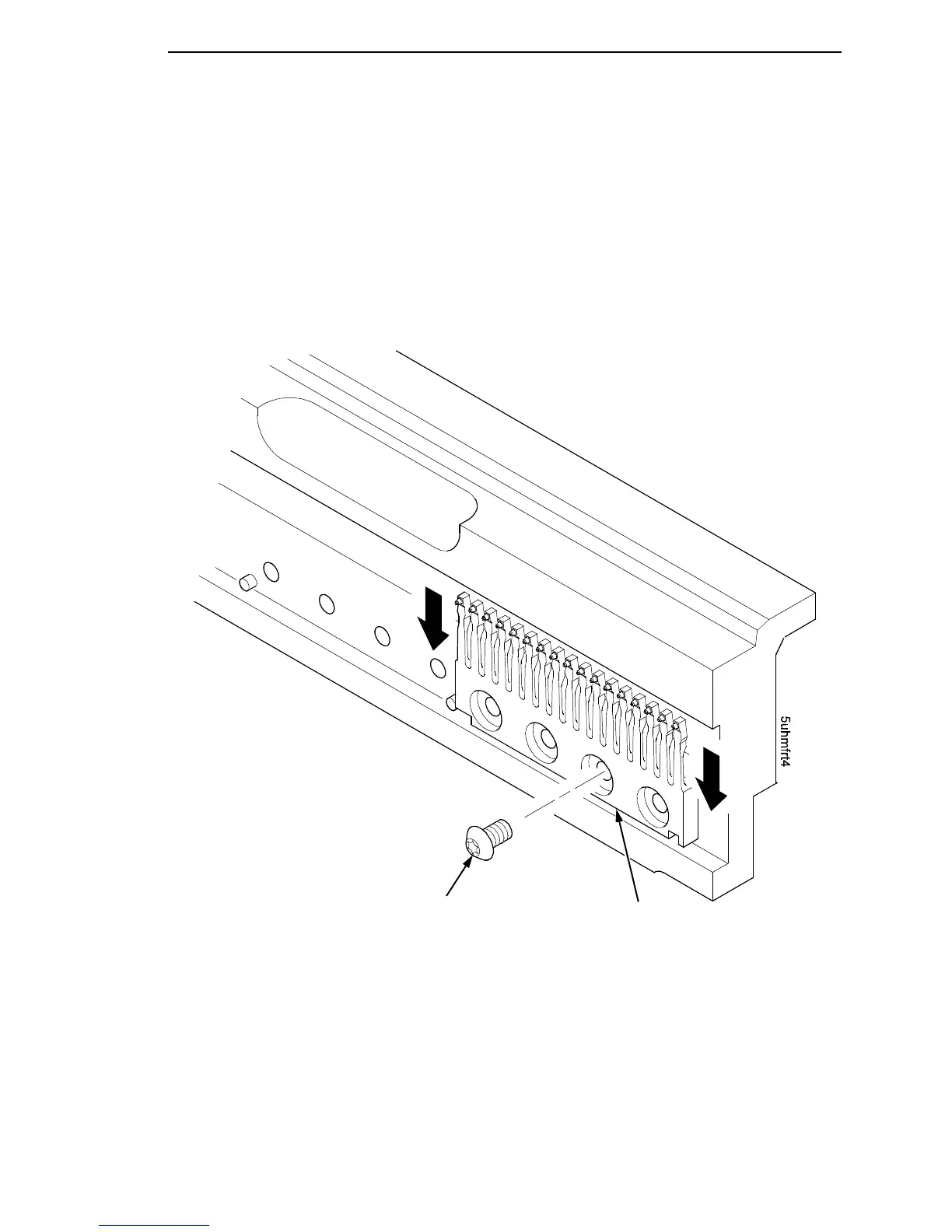

Figure 25. Hammer Spring Assembly, Installation
NOTE: The hammer spring assembly
shown here is for a P5015 printer.
Although hammer spring assemblies
vary in appearance and number of
mounting screws, removal and
installation are the same for all models.
Use new screws from the kit.
Torque the screws to 14 inch-
pounds (1.58 Newton-meters).
Torque the inner screws first.
New Hammer
Spring Assembly
Gently press down on the mounting
base and hold the hammer spring in
position as you install the screws.
