Replacing The Constant Force Spring
1. Remove the stacker assembly from the printer. (See page 339.)
2. Raise the elevator assembly to its highest position and secure it to the
vertical rails using tie wraps or string. Do not over-tighten the tie wraps or
string; tighten them just enough to hold the elevator up. (Figure 86.)

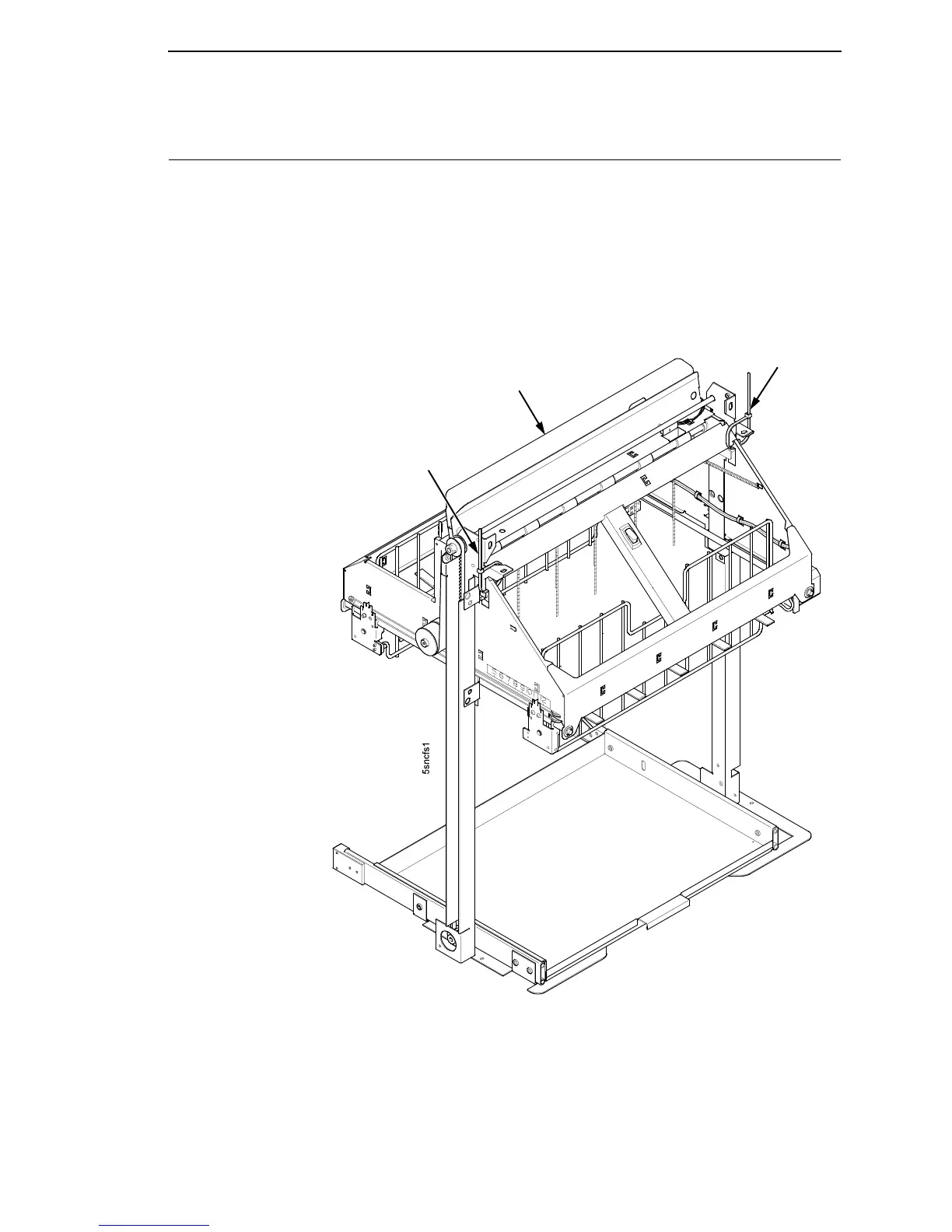

Figure 86. Securing the Elevator Assembly
Tie Wrap
Tie Wrap
Elevator
Assembly
To Next Page
