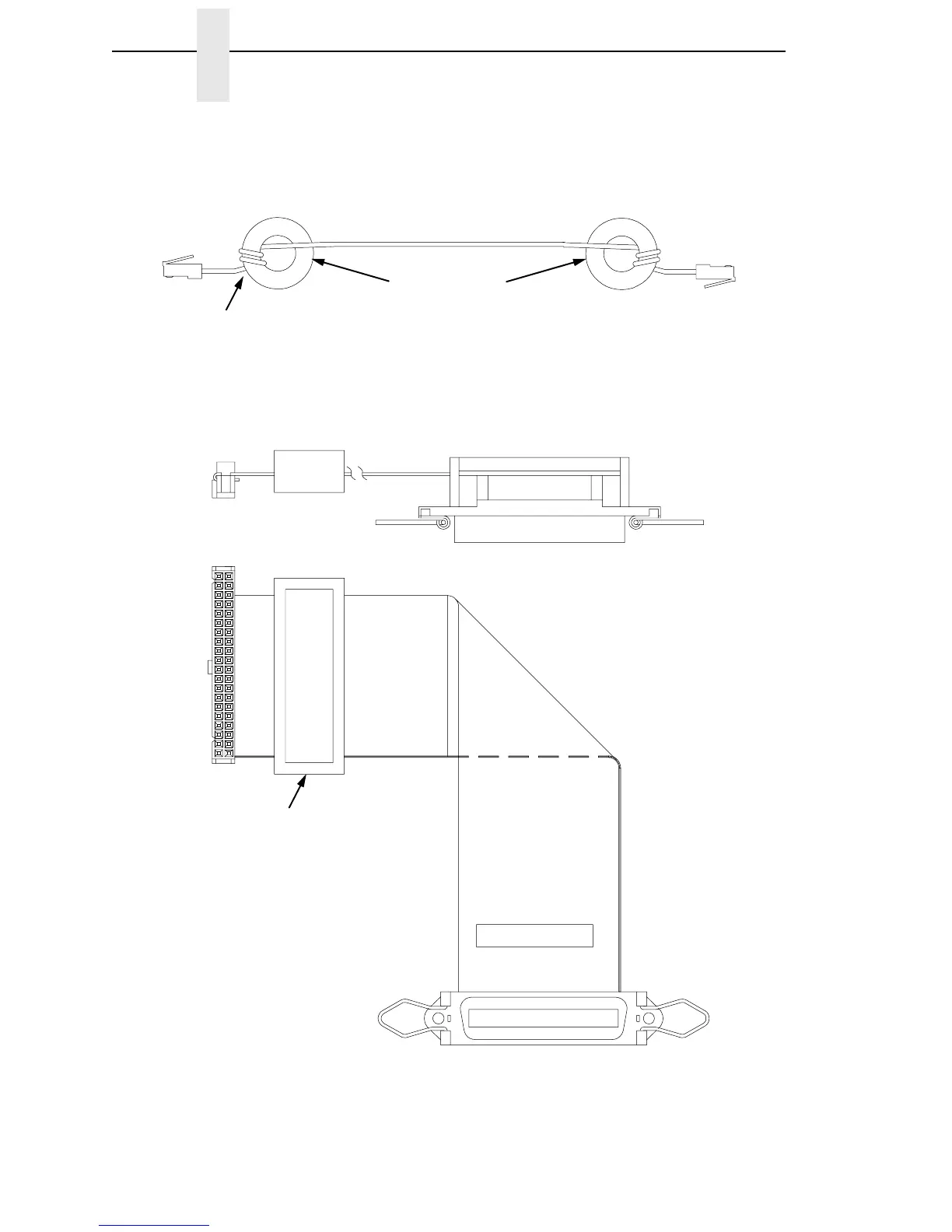

Figure 57. Ferrite Core Installation
NOTE: Attach the core to
the right rear card cage
wall.
Ferrite Core with Clamp
and Adhesive Backing
P/N 202049-001
Connector
P112
Connector
P110
Connector
P310
Connector
J203
NOTE: Two turns around
each bead.
Shielding Bead
P/N 141445-001
Control Panel Cable Assembly
Parallel I/O Cable Assembly
